• Model NO.：20m
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Impactor
• Name：Quarry Mine Drilling Rig
• Dimensions(L*W*H)：4,900X2,000X2,200 mm
• Engine Power：58kw
• Total Weight：3500kg
• Drill Depth：20m
• Hole Diameter：90-127 mm
• Drill Pipe Size：60*3000 mm
• Transport Package：Container
• Specification：3500kg
• Trademark：HW
• Origin：China
• HS Code：8430509000
• Production Capacity：3000pieces,Month

                                       air compressor  seperated surface DTH mine drilling rig for quarry                                                                                     ModelHW416Machine Weight3500kgEngineYuchai 58 kWDrill Pipe Sizes60 X 3,000 mmHole Dia90-127mmTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions4900*2000*2200mm

Product Introduction

HW-416/416-1 Separated DTH Surface Drill Rig is equipped with dual motor rotary head and rotary speed adjustable mull, way valve.The rotary torque can reach 1950N m, which meets the requirements of 76 drill pipe and 130 hole diameter. The rotation speed can be up to 150 rpm, which meets the needs of some customers for high-speed drilling in soft rock formations. At the same time, HW416 series models are equipped with engineering crawler and plunger motor as standard. which makes the climbing ability stronger and the quality more stable and reliable This model is the highest configuration product of its kind.

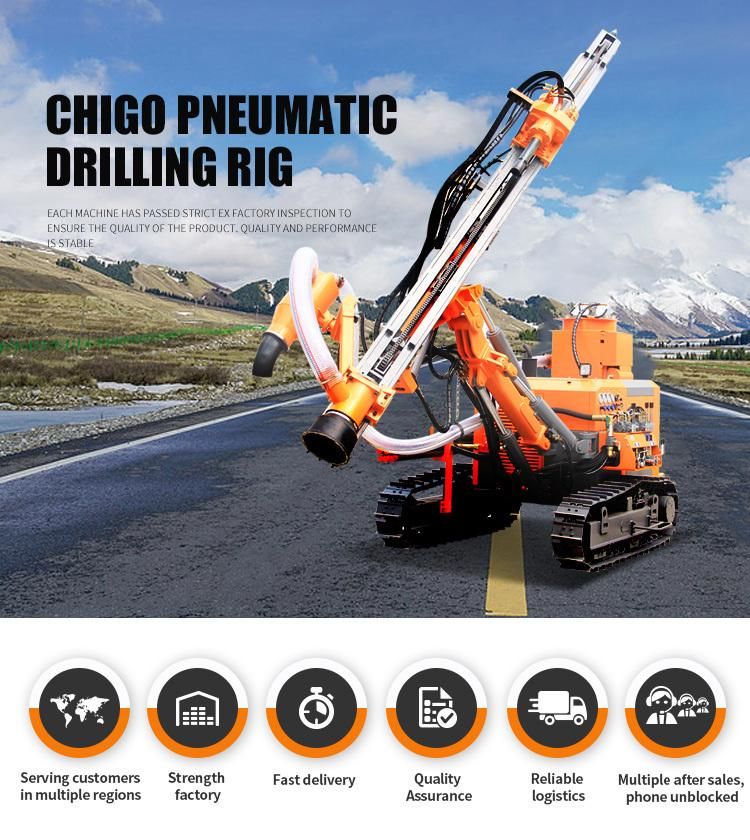

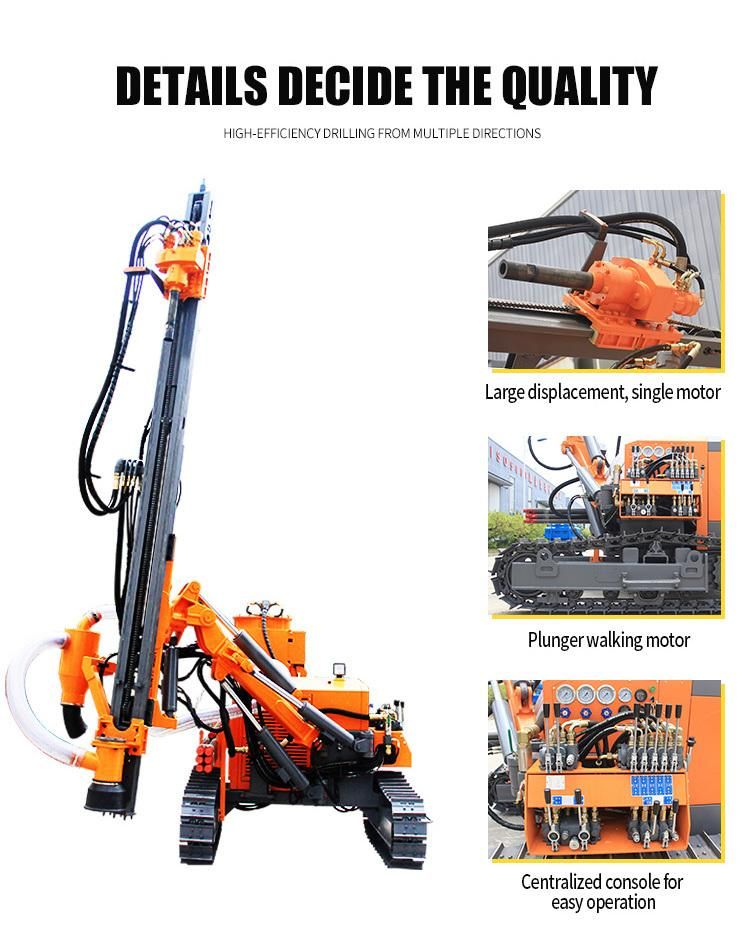

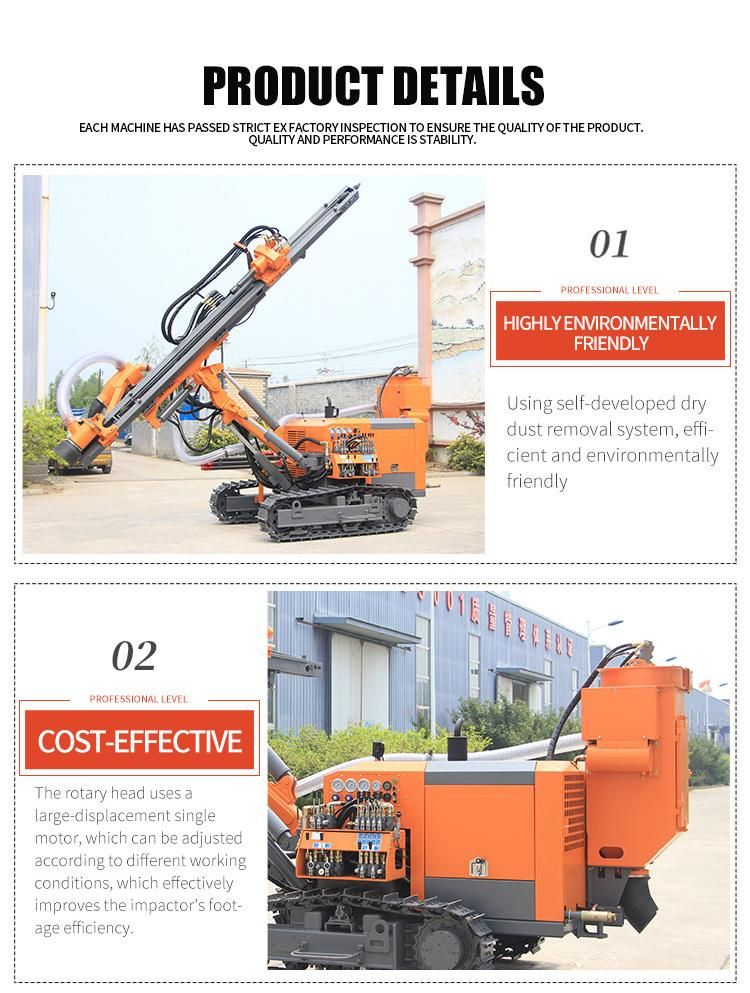

 Machine Pictures
