• Model NO.：YDZ-200
• Transport Package：Wooden Box
• Specification：7.5m× 2.2m× 2.8m
• Trademark：BAFANG
• Origin：China
• HS Code：8403900000
• Production Capacity：100

Basic Info.

Model NO. YDZ-200 Transport Package Wooden Box Specification 7.5m× 2.2m× 2.8m Trademark BAFANG Origin China HS Code 8403900000 Production Capacity 100

Product Description

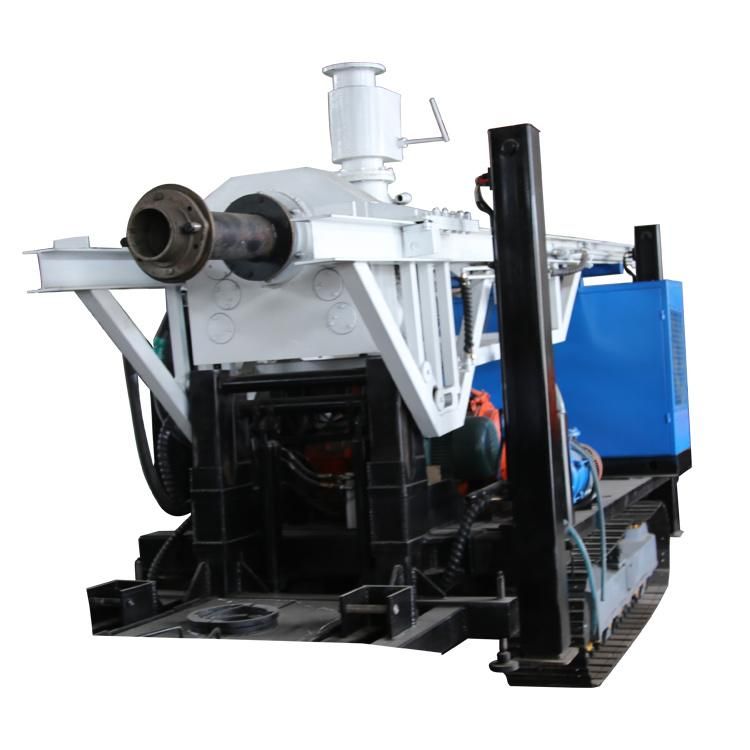

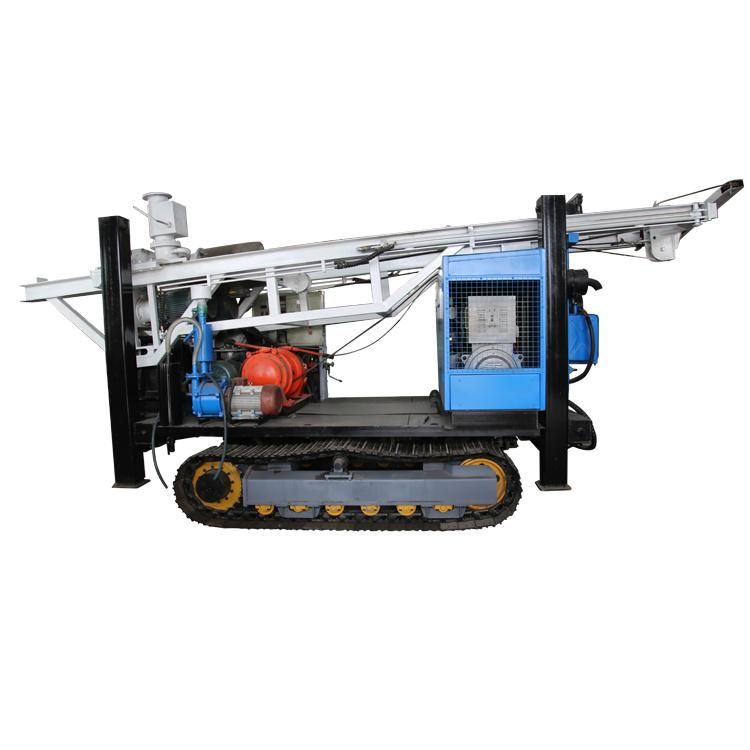

 Hot selling reverse circulation drilling rig in ChinaProduct description
YDZ-2000 type reverse cycle drilling rig is an electric return integrated drilling rig. It is an ideal hole forming machine for perfusion piles. It embodies a new technology of multipurpose use. Make the rig more usable and suitable for wider strata. It is suitable for silt, clay, gravel layer, weathered rock shale, and is more suitable for the basic construction of complex strata such as conglomerate. Therefore, it is a bridge, building, water Conservancy, electricity, telecommunications, engineering precipitation and other sizes, and an ideal equipment for deep foundation engineering construction.


Parameter

Model	YDZ-200
Drilling diameters	≤3.0m
Drilling depth	150m
Diesel generators(power)	120KW
Spindle power	22KW
Mud pump power	37KW
Spindle speed	8r/min
Spindle torque	2470kg/m
Mud pump pumping capacity	420m3/h
main roller lift power	90KN
Steel rope specifications	ф16×6×37
Steel rope capacity	50m
Drill rod double headed silk clasp	ф220×2m
Drilling height	7.3M
The outline of the entire machine(length × width × height)	7.5m×2.2m×2.8m
Weight	13.5T
