DTH Multifunctional Portable 30m Water Well Drill Rig Blasting Mining Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：ISO
  • Certification：CE
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：HW421
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Compound
  • Product Name：DTH Drilling Rig
  • Drill Pipe Sizes：60*3000 mm
  • Hole Range：90-127 mm
  • Rotation Torque (Max.)：1,950 N.M
  • Rotation Speed：70-150rpm
  • Feed Force：15kn
  • Pull up Force：25kn
  • Total Weight：3,250kg, 4,500 Kg
  • Transport Package：Stande Package
  • Specification：37KW
  • Trademark：Hengwang
  • Origin：Shandong
  • HS Code：8428909090
  • Production Capacity：5000sets,Year

Description

4,900X2,000X2,200 mm

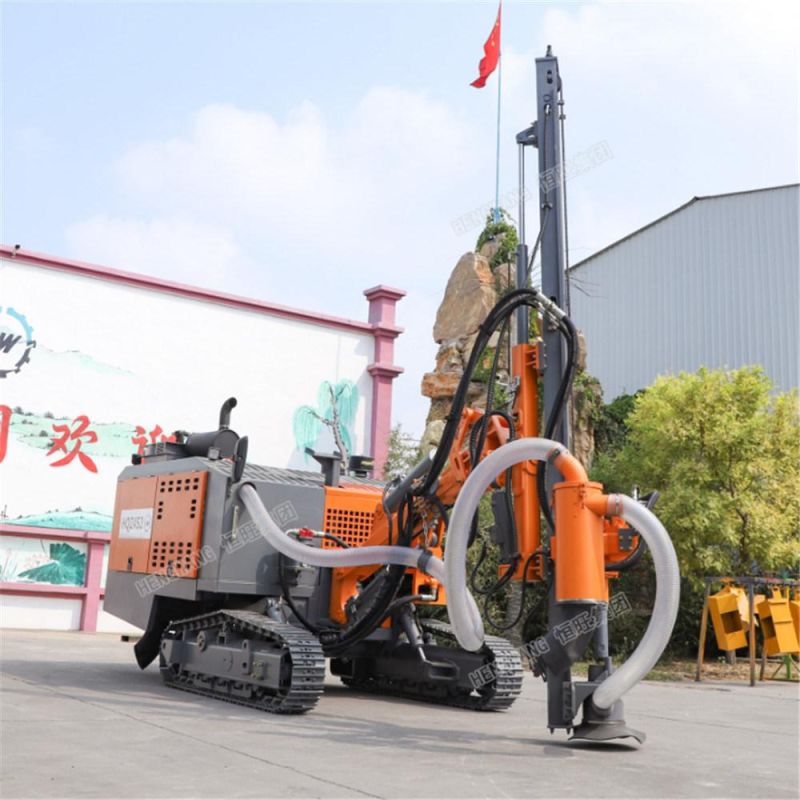

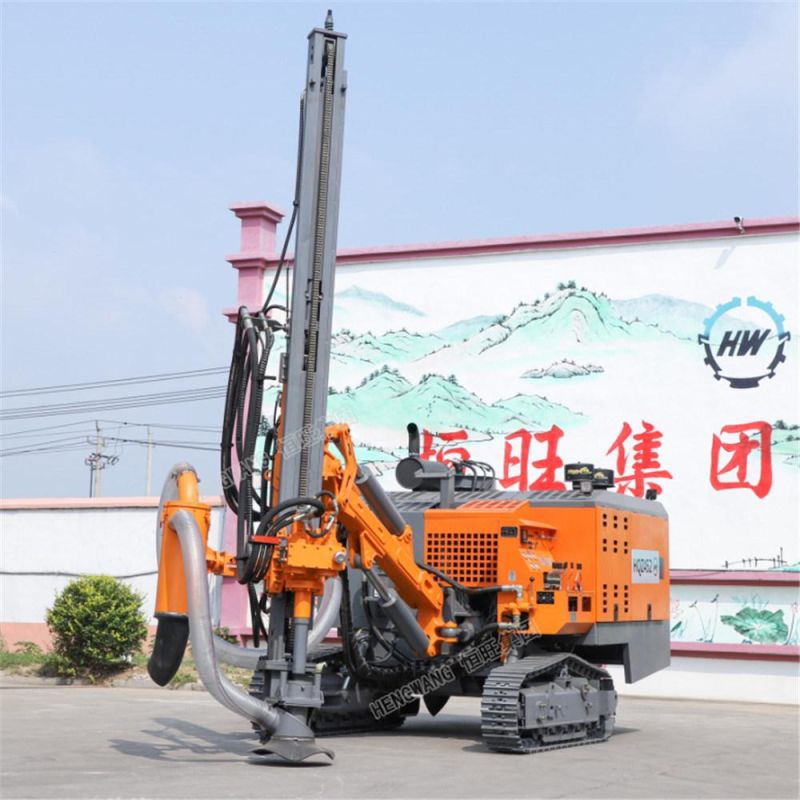

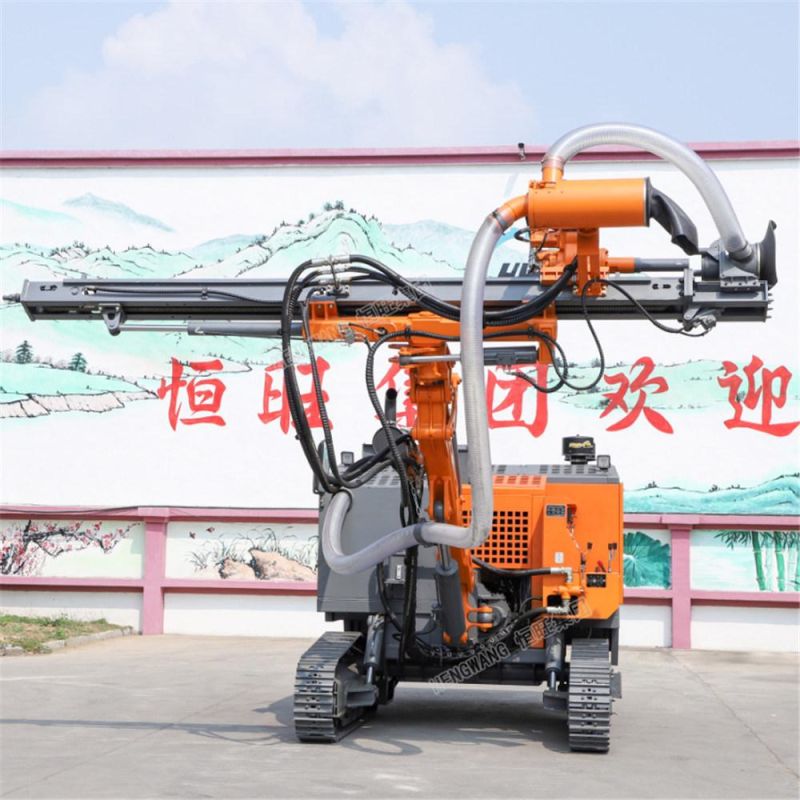

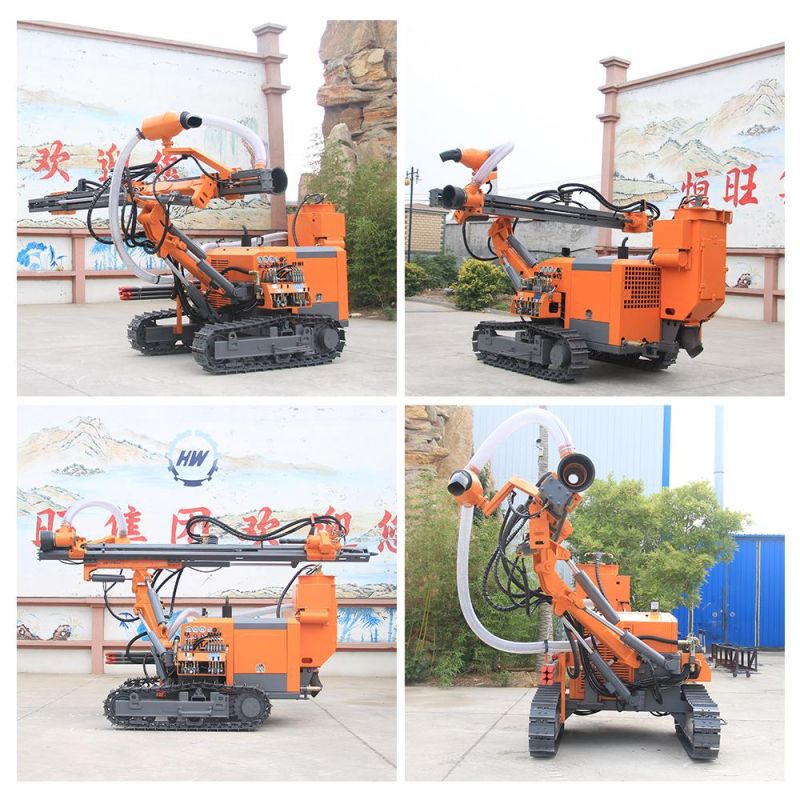

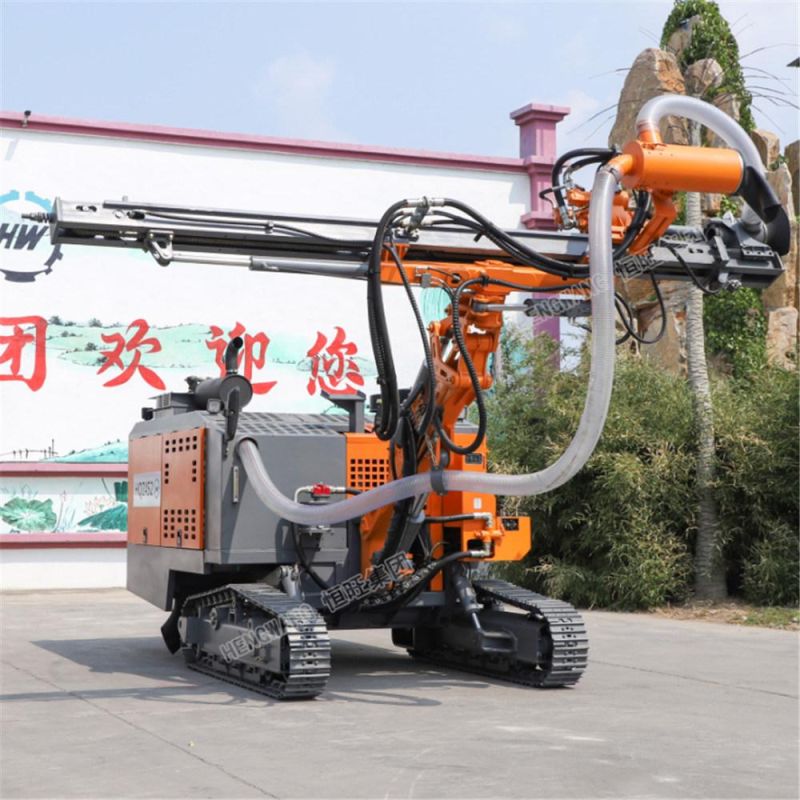

Picture:
DTH Multifunctional Portable 30m Water Well Drill Rig Blasting Mining Drilling RigDTH Multifunctional Portable 30m Water Well Drill Rig Blasting Mining Drilling RigDTH Multifunctional Portable 30m Water Well Drill Rig Blasting Mining Drilling RigDTH Multifunctional Portable 30m Water Well Drill Rig Blasting Mining Drilling Rig

DTH Multifunctional Portable 30m Water Well Drill Rig Blasting Mining Drilling Rig
