Hw420 Crawler Mounted Portable Multi Functional Mechanical Top Drive Drilling Rig for Water Well
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service:Yes
- Warranty:12months
- Certification:CE
- Condition:New
- Motor:Diesel
- Drill Hole Diameter:<100mm
Base Info
- Model NO.:HW420
- Drill Hole Depth:<100m
- Bit Type:Diamond Bit
- Drilling Way:Compound
- Name:DTH Drilling Rig
- Hole Depth:30m
- Drill Pipe Sizes:76 X 3,000 mm
- Drill Pipe Dia:90-130 mm
- Rotation Torque (Max.):2200 N.M
- Rotation Speed:0 -150 Rpm
- Working Pressure:0.7 - 2.5 MPa
- F.a.D:8 - 20 M3,Min
- Feed Force:15kn
- Pull up Force:25kn
- Total Weight:4000 Kg
- Transport Package:Stande Package
- Specification:37KW
- Trademark:Hengwang
- Origin:Shandong
- HS Code:8428909090
- Production Capacity:5000sets,Year
Description
Diesel Engine Specifications
Rig Model
Engine Model
Rated Power
HW-420B
Yuchai YC4DK80
58 KW
HW-420B-1
Yuchai YC4DK80
58 KW (Dust collection system as
standard equipment)
General Specifications
Hole Depth
30m
Drill Pipe Sizes
76 X 3,000 mm
Drill Pipe Dia
90-130 mm
Rotation Torque (Max.)
2200 N.m
Rotation Speed
0 -150 rpm
Working Pressure
0.7 - 2.5 Mpa
F.A.D
8 - 20 m3/min
Feed Force
15KN
Pull Up Force
25KN
Feed Type
Hydraulic cylinder-chain
Tramming Speed (Max.)
2.5 km/h
Gradient
30°
Track Frame Oscilation
±10°
Total Weight
4000 kg/4400Kg
Transportation Dimensions
5700 X 2130 X 2200 mm

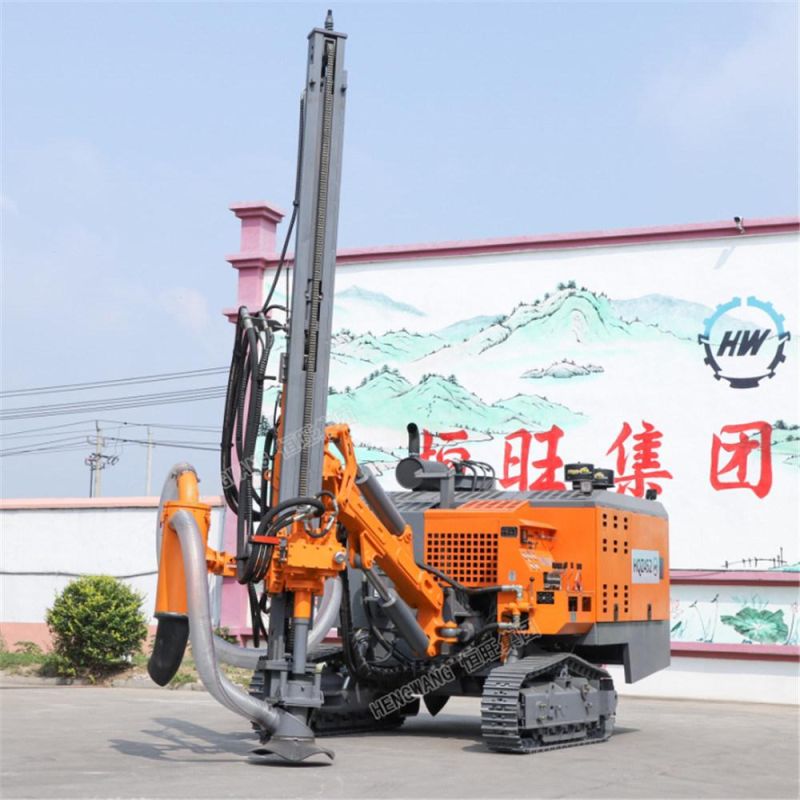

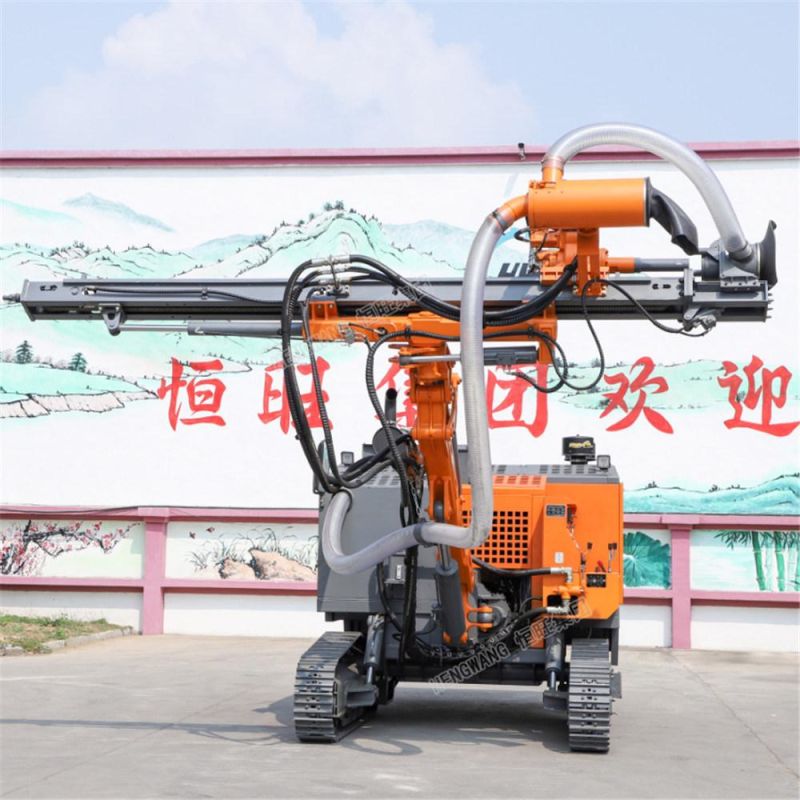

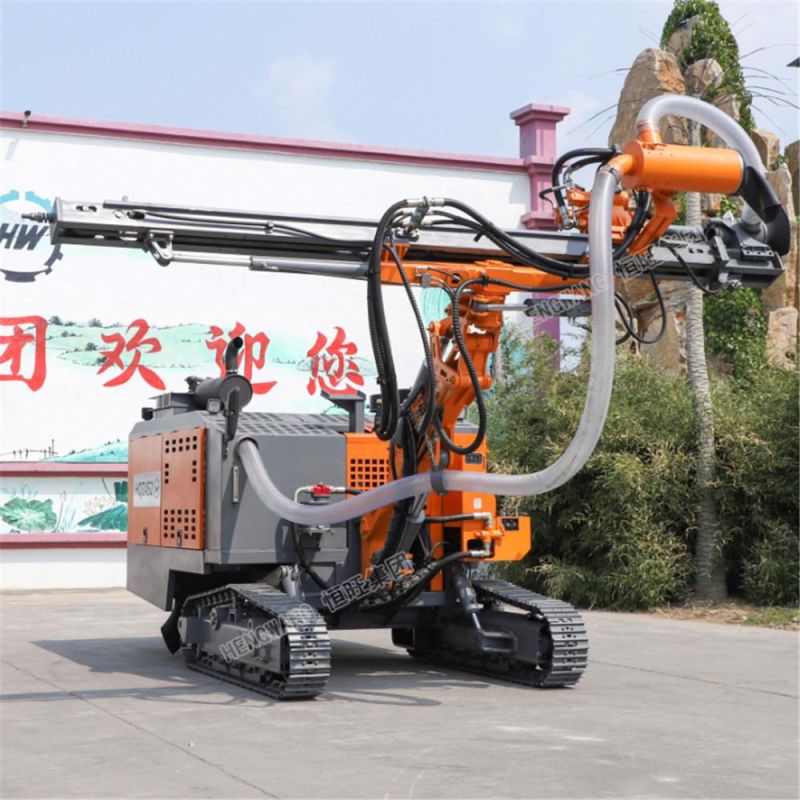

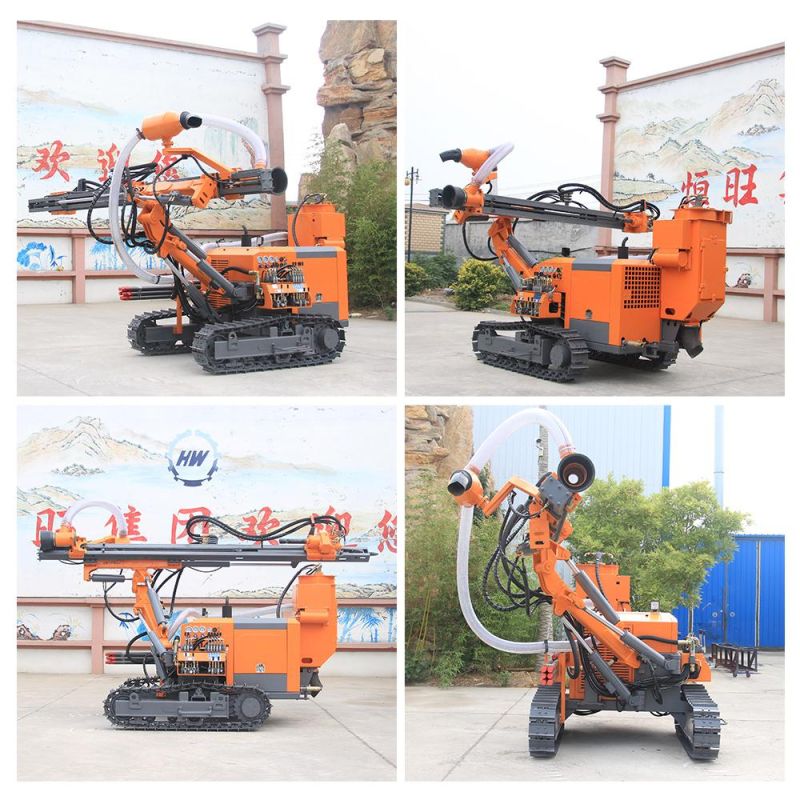

Picture:
