Portable Pneumatic Rock Drilling Rig Hqz-350 Hard Rock Water Well Drilling Rig Machine Core Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：1year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel ,Electric
  • Drill Hole Diameter：250-300mm

Base Info

  • Model NO.：320M
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Drilling Rock：20m~40m,Hour
  • Drilling Depth：320m
  • Drilling Diameter：100-350mm
  • Engine Power：85kw
  • Transport Package：Container
  • Specification：4100*1900*2600
  • Trademark：HW
  • Origin：China
  • Production Capacity：3000pieces,Month

Description

Model

HQZ-320L

Total Weight(T)

7.5/9

Dimensions(mm)

4200*1900*2600

Drilling Diameter(mm)

140-350

Drilling Depth(m)

320

One-time Advance Length of the Drill(mm)

3000/6000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

230

Working Air pressure(Mpa)

1.7-3.3

Air Consumption(m³/min)

23

Main Power(kw)

85/Yuchai

Rotation(rpm)

55-115

Rotary Torque(Nm)

8500-10000

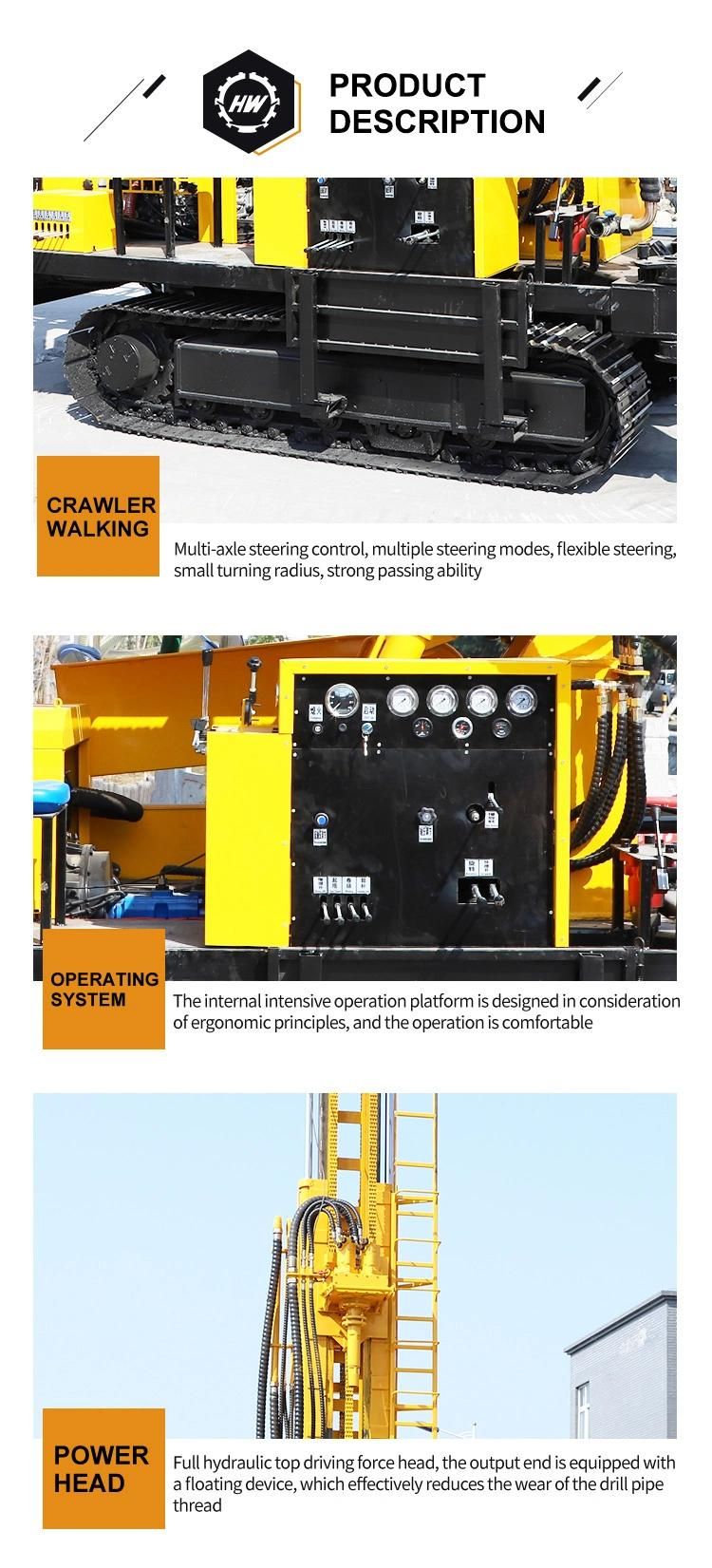

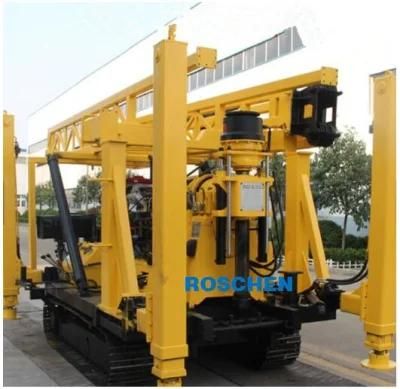

Detail Photos
Portable Pneumatic Rock Drilling Rig Hqz-350 Hard Rock Water Well Drilling Rig Machine Core Drilling Rig
Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
