• Model NO.：GS5000-LS
• Type：Track
• Engine Power：2*294 kW
• Max Torque：140000 N·m
• Max Mud Pump Flow：Extra Mud Pump
• Transport Package：Nude Packing
• Specification：17700*2500*3460 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS5000-LS Type Track Engine Power 2*294 kW Max Torque 140000 N·m Max Mud Pump Flow Extra Mud Pump Transport Package Nude Packing Specification 17700*2500*3460 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

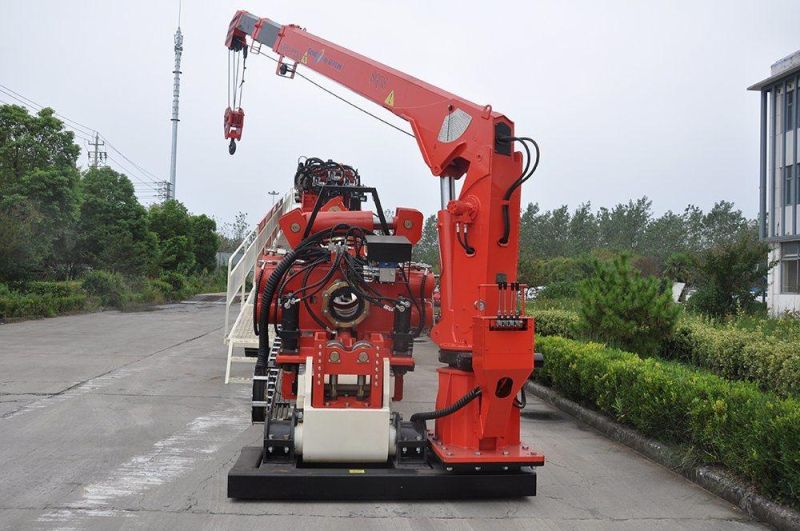

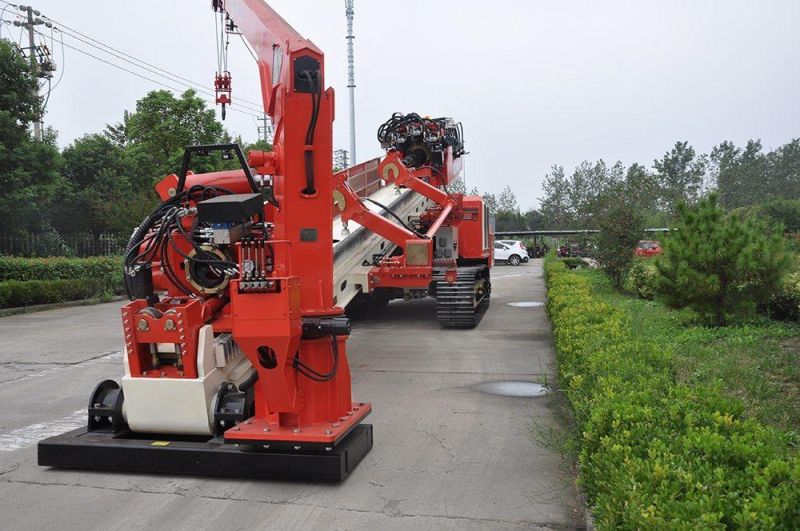

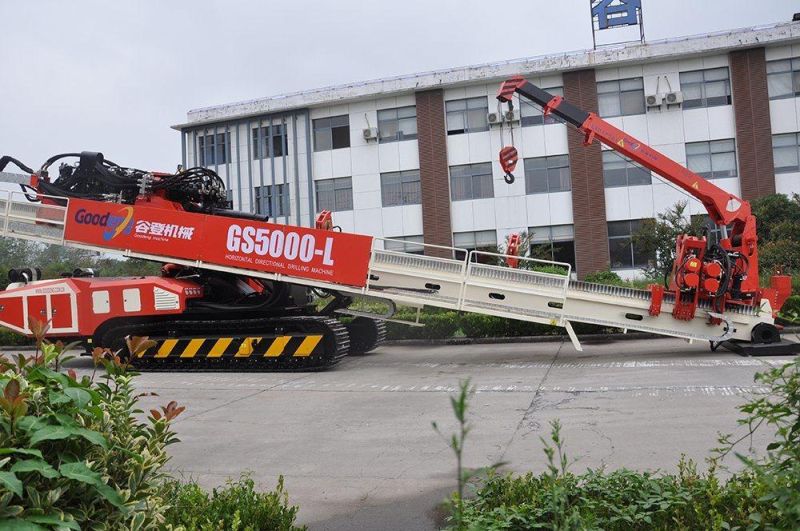

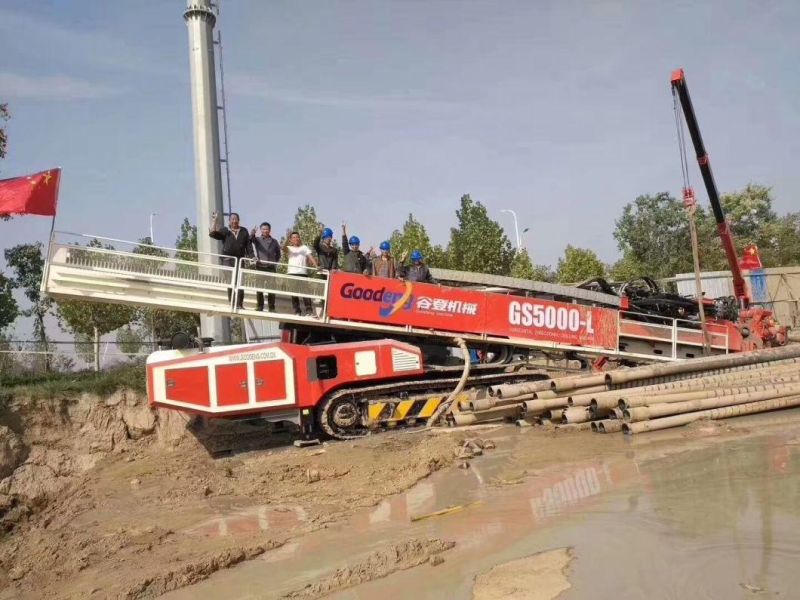

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.The rig frame, which is attached to the power system, compact, 2.5m wide, and 3.4m tall, meets the demands of transportation regulation both at home and abroad.

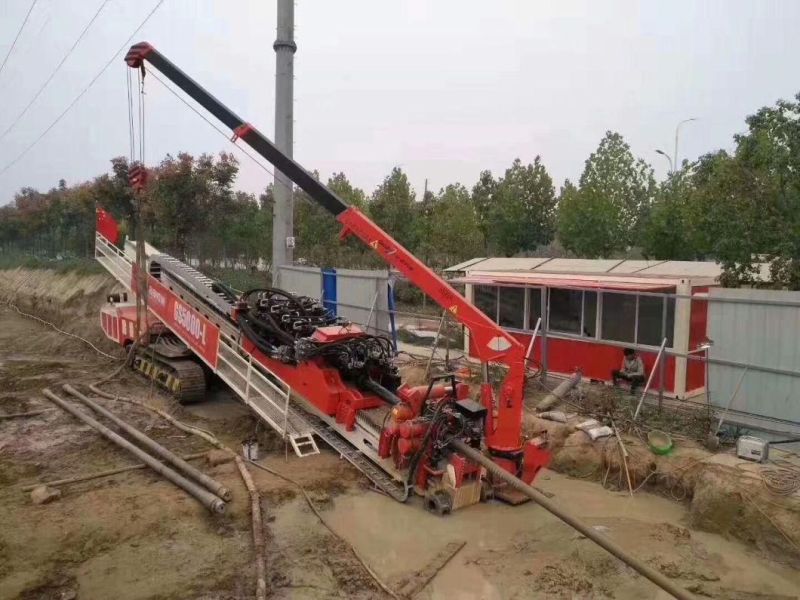

2. It is an initial design domestically that large rig is equipped with manipulator to automatically load/unload rods, which is significant to save labor cost and enhance working efficiency.
3.The machine is equipped with two sets Weichai engine, which features high efficiency and low noise. One or two engines can be applied flexibly, saving energy and reducing fuel consumption.
4. High-performance proportional electrical control open circuit system is adopted for main hydraulic system, and there is no need for oil supplement compared to closed circuit system, making it more efficient.
5. Driving head rotation and push & pull are performed in full-scale stepless speed regulation.

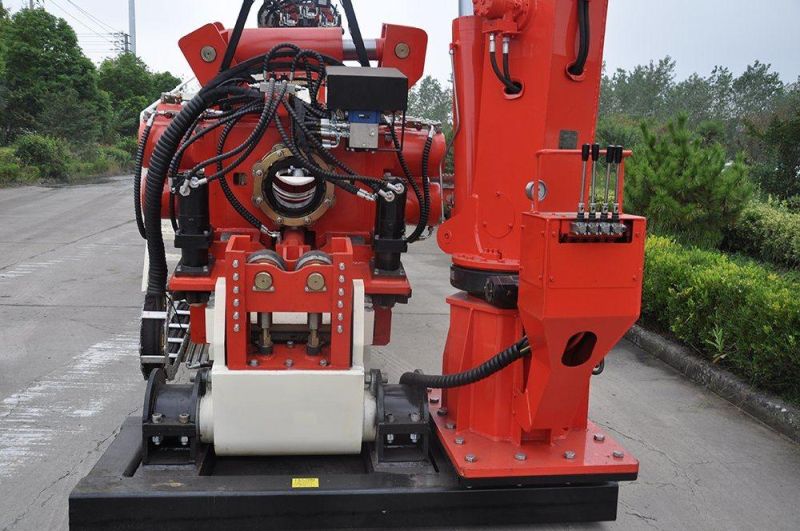

6. Front and back clamping can be separated, and float in the whole process. The front of clamp is equipped with rod supporting mechanism, which can reduce clamping abrasion effectively.
7.It is equipped with φ140×9600mm or φ168×9600mm drill rod, and the floating spindle is in favor of protecting drill pipe thread.
8. Floating girder and front/back cylinder make entry angle adjustable, which is easy to load/unload and transport.

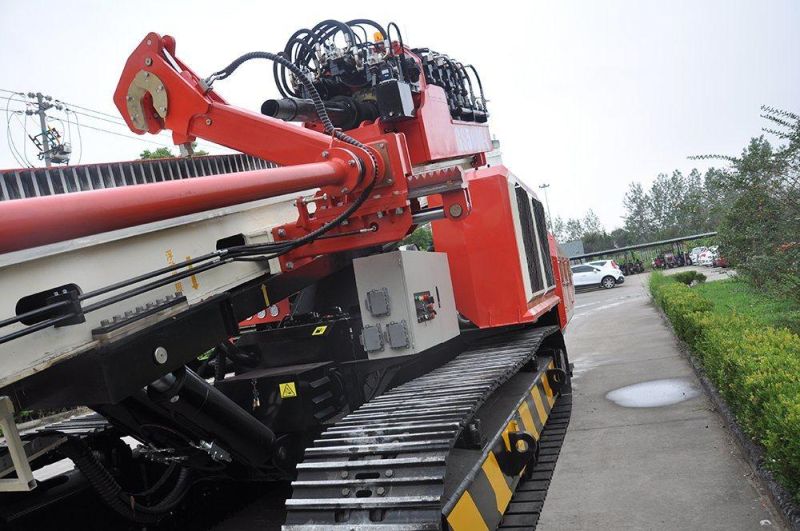

9. Steal track walking system is convenient for transferring at site.

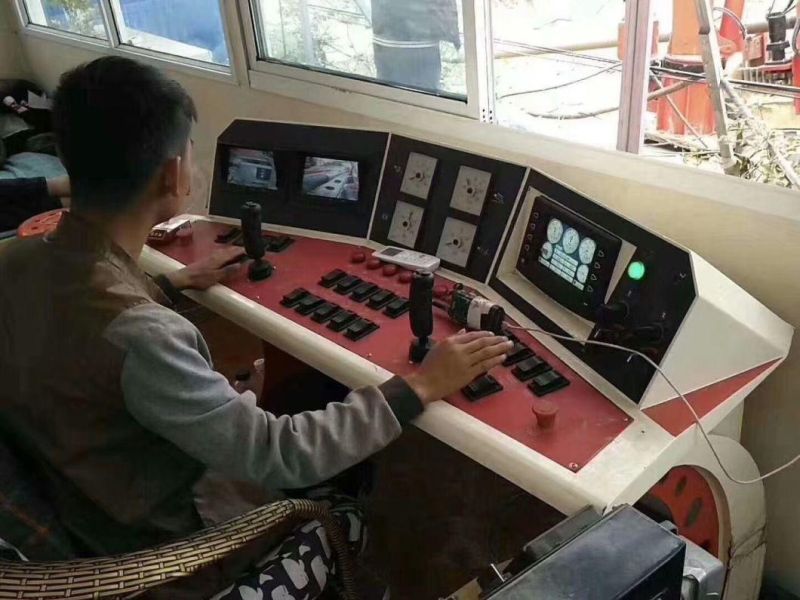

10. It is equipped with independent operation cabin with necessary and comfortable decoration.
11. Drill pipe bracket in the middle increases the accuracy of drill pipe loading and unloading, which can highly improve working efficiency.
12. About Main control valve. The simple and reliable structure can ensure smooth operation. Big drift diameter design is characterized with smaller throttling loss, smaller heating power, more energy saving, compact shape etc. More reasonable power system structure can improve push-pull speed on the condition of not affecting rig torque and push-pull force, hence meeting speed demands in different construction conditions.
13. The design of large flow and high pressure is adopted for hydraulic system, and the self-designed control valve group ensures the fast response and low-pressure loss.
14. The electricity-liquid combined control system realizes the self-adapting control of machine to the different construction situation, increasing the working efficiency by 20%-30%.
15. The cable of the electrical circuit is simple, stable and reliable.
16. The LCD human-computer interaction system offers real-time inspection and control, making the operation easier and more comfortable.
17. Rational and effective cooling system ensures safety, reliability and efficiency of system, extends motor using lifespan, and avoids motor damage.

[Main Technical Parameters]


Rig Weight	57500 kg	Rig Dimension(L*W*H)	17700*2500*3460 (mm)
Engine Power	2*294 kW	Max. Working Pressure	35 MPa
Max. Torque	140000 N·m	Max. Push & Pull Force	6000 kN
Max. Rotation Speed	92 rpm	Max. Push & Pull Speed	45 m/min
Max. Clamping Force	2550 kN	Max. Unscrewing Force of Pipe Jaw	370000 N·m
Drill Pipe Diameter	Φ127mm-Φ168mm	Max. Length of Drill Pipe	9.6 m
Drill Incidence Angle	9°-16°	Max. Caterpillar Walking Speed	4.5 km/h
Main Spindle Floating Distance	100 mm	Max. Mud Pressure	12 MPa
Mud Pump Channel Diameter	3"/4''	Max. Mud Flowing Volume	2000 L/min
Permitted Enviroment Humidity	> 90%	Permitted Working Temperatue	-30°~50°C
Max. Aperture Diameter	Φ2000mm(Soil Depended)	Max. Crossing Length	2500m(Soil Depended)
