Open Quarrying Portable DTH Rock Drilling Rig Machine Powered by Air Compressor

Beijing Jincheng Mining Technology Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：Electric Motor
  • Drill Hole Diameter：75mm-130mm
  • Drill Hole Depth：20m
  • Bit Type：DTH Button Bits

Base Info

  • Model NO.：DM100B
  • Drilling Way：Rotary
  • Lifting Power：600n
  • Rotation Speed：0-80rpm
  • Transport Package：20gp Container
  • Specification：2700*420*610mm
  • Trademark：JCDRILL
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：2000,Set

Description

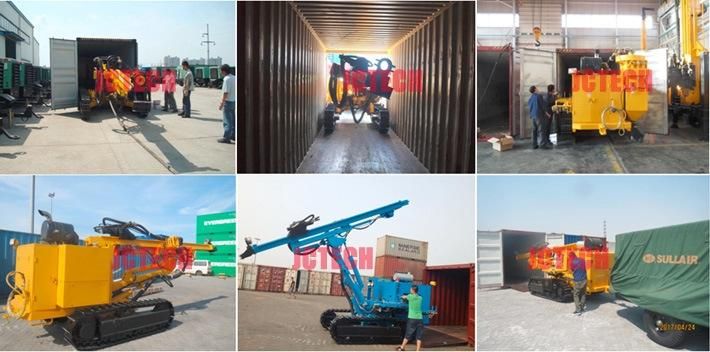

MODELDM100ADM100BAir pressure(Mpa)0.5-0.70.5-0.7Hole diameter(mm)75-13075-130Air consumption(m3/min)9-176-12Hole depth(m)2020Feed Stroke(m)11Lifting power(N)600600Rotation Speed(r/min)0-80110Rock hardnessf=8-16f=8-16Drive modeWind motorMotor(Electricity)Rated power(kw)44Drill pipe50×1000mm50×1000mmSize2700×450×6302700×420×610Weight(kg)245300Packing& Delivery
Open Quarrying Portable DTH Rock Drilling Rig Machine Powered by Air Compressor

Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
