Hydraulic Down The Hole Rock Blasting Drilling Rig

Taian Longye Import and Export Trade Co., Ltd.
  • After-sales Service：Available
  • Warranty：Available
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm

Base Info

  • Model NO.：CTQ-Z115Y-2
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Bore Hole Diameter：90-140mm
  • Depth：40m
  • Air Pressure：0.7-1.6
  • Air Consumption：7-15
  • Once Promotion：3000
  • Transport Package：Standard Size
  • Specification：5480*1950*3150mm
  • Trademark：longye
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：500 Sets,Year

Description

Bore diameter(mm)

90-140

Bore depth(m)

40

Walk speed(km/h)

0-2.5

For rock(F)

6-20

Air pressure(Mpa)

0.7-1.6

Air consumption(m³/min)

7-15

Once promotion(mm)

3000

Skid pitch(°)

Up and down100

Swinging angle of skid(°)

Left and right 55

Boom swing angle(°)

Left and right toal 70

Boom pitch(°)

Up and down total 40

  Rotation Speed(r/min)

0-120

Host Power (Kw)

56

Climb ability(°)

30

Dimension(L*W*H)(mm)

5480*1950*3150

weight(Kg)

5160

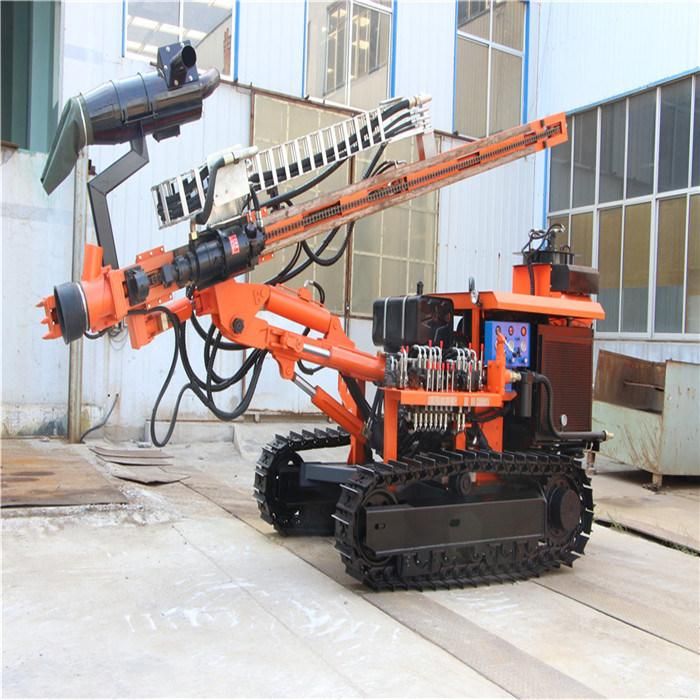

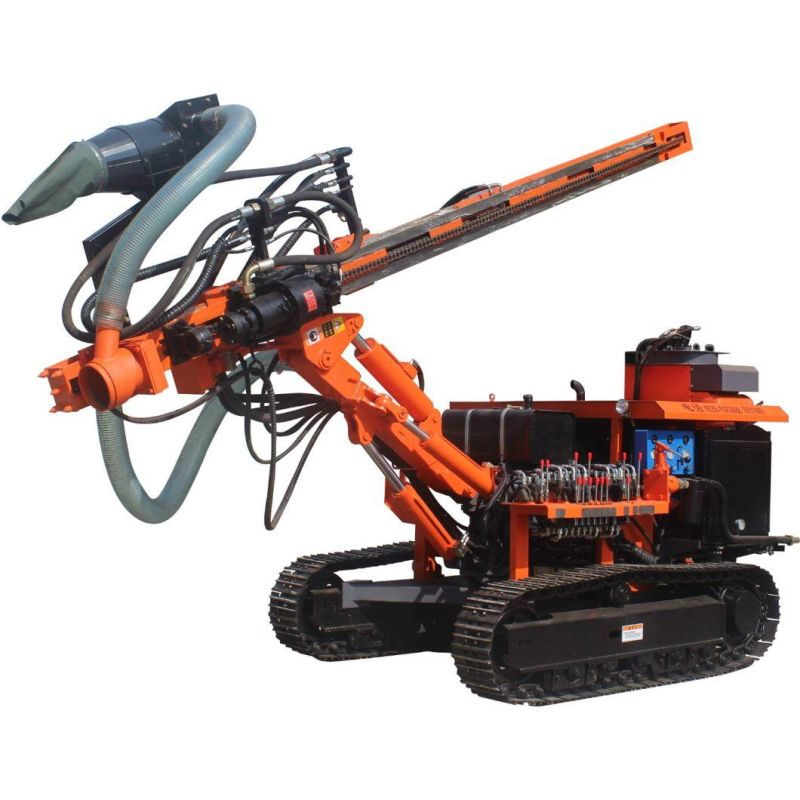

Product Photos
Hydraulic Down The Hole Rock Blasting Drilling RigHydraulic Down The Hole Rock Blasting Drilling RigHydraulic Down The Hole Rock Blasting Drilling Rig

Company Profile

Hydraulic Down The Hole Rock Blasting Drilling RigPackages & Shipping



Hydraulic Down The Hole Rock Blasting Drilling Rig

Attend Exhibition

Hydraulic Down The Hole Rock Blasting Drilling Rig
