20m Depth Crawler DTH Drill Rig for Blasting Hole Drill

Taian Longye Import and Export Trade Co., Ltd.
  • After-sales Service：Available
  • Warranty：Available
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm

Base Info

  • Model NO.：CTQ-Z115Y-2
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Bore Hole Diameter：90-140mm
  • Depth：40m
  • Air Pressure：0.7-1.6
  • Air Consumption：7-15
  • Once Promotion：3000
  • Transport Package：Standard Size
  • Specification：5480*1950*3150mm
  • Trademark：longye
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：500 Sets,Year

Description

Bore diameter(mm)

90-140

Bore depth(m)

40

Walk speed(km/h)

0-2.5

For rock(F)

6-20

Air pressure(Mpa)

0.7-1.6

Air consumption(m³/min)

7-15

Once promotion(mm)

3000

Skid pitch(°)

Up and down100

Swinging angle of skid(°)

Left and right 55

Boom swing angle(°)

Left and right toal 70

Boom pitch(°)

Up and down total 40

  Rotation Speed(r/min)

0-120

Host Power (Kw)

56

Climb ability(°)

30

Dimension(L*W*H)(mm)

5480*1950*3150

weight(Kg)

5160

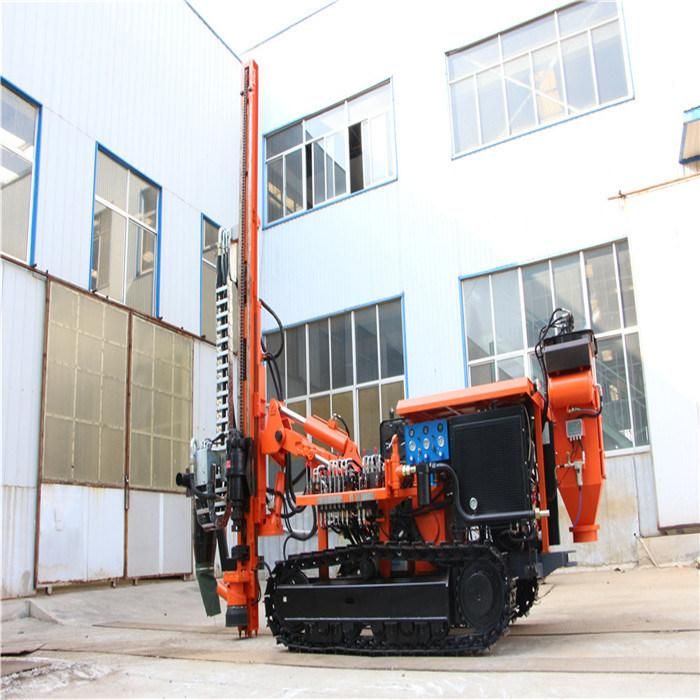

Product Photos
