CE Hqz180L Rotary Crawler Air Drilling Machine Borehole Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：18 Month
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-200mm
Base Info
- Model NO.：borehole drilling rig
- Drill Hole Depth：>200m
- Bit Type：DTH Bit
- Drilling Way：Impactor
- Type：Crawler
- Overall Weight：3.5 T
- Dimension：3400*1500*2400mm
- Drilling Diameter：180m
- One-Time Advance Length of The Drill：3000mm
- Traveling Speed：2.5 Km,H
- Climbing Ability：25 Degree
- Main Machine Power：Yunnei 42kw
- Rotary Torque：4000-5000 Nm
- Rotary Speed：38 - 80 Rpm
- Air Consumption：15 - 27 M³,Min
- Working Air Pressure：1.45 - 2.5 MPa
- Transport Package：Loading Within 20FT Container
- Specification：3400*1500*2400 mm
- Trademark：HW
- Origin：China
- HS Code：8430419000
- Production Capacity：8000 Set ,Year
Description
Model
HQZ-180L
Overall weight (T )
3.5
Dimension (mm )
3400*1500*2400
Drilling diameter (mm )
130-245
Drilling depth (m)
180
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
25°
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.45 - 2.5
Air consumption(m³/min)
15 - 27
Main machine power (kw)
Yunnei 42Kw
Rotary Speed (rpm)
38 - 80
Rotary torque (Nm)
4000-5000
HQZ-180L drilling rig detail information

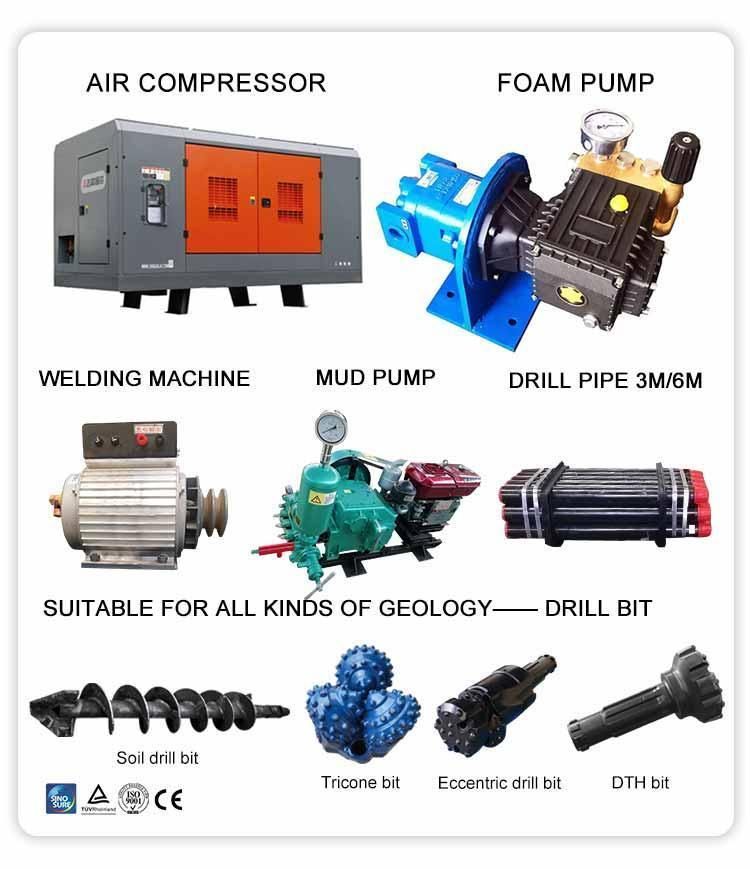

The drilling rig is multi-functional, with different configurations suitable for different geology.All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.

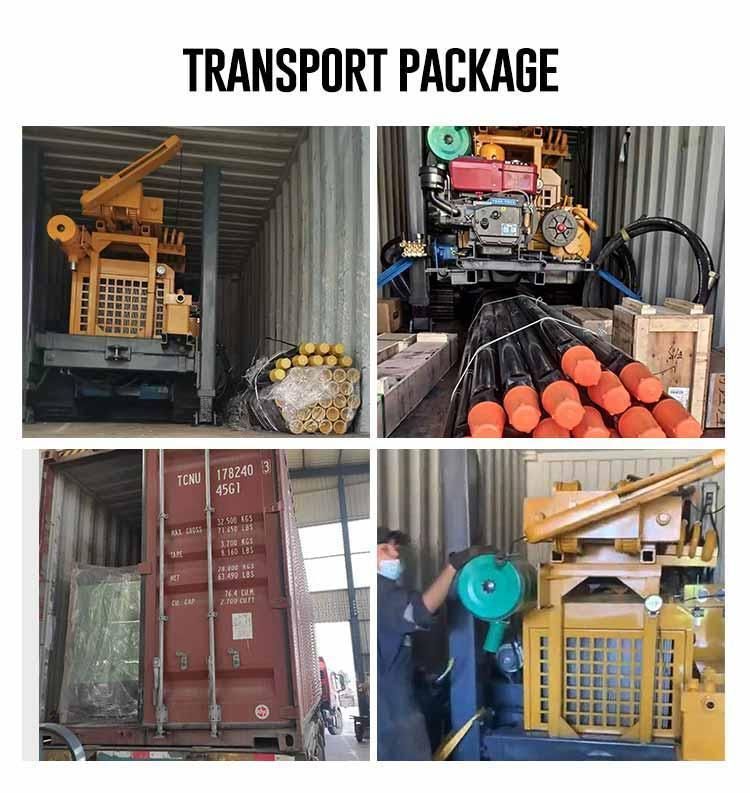

Drill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
Our factory is specialized in manufacture drilling rig , we have many models , if you have any questions, pls contact with us ,Contact person : Sally
