20m Depth 110mm Blasting Borehole Rock Drill in Peru Mining

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：CE
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW421
  • Drilling Way：Impactor
  • Drill Pipe Size：φ76*3000mm
  • Hole Diameter Range：φ110*138mm
  • Rotation Torque(Max.)：2500n.M
  • Rotation Speed：0-100rpm
  • DTH Hammer：4inch
  • Drill Depth：20m
  • Working Pressure：17bar
  • Total Weight：11300kg
  • Transportation Dimensions：7657*2500*290mm
  • Transport Package：Standard Export Packing
  • Trademark：HW
  • Origin：China
  • Production Capacity：30set,Month

Description

                                       air compressor built-in  surface DTH mine drilling rig for quarry                                                                                     ModelHW421Machine Weight6800kgEngineYuchai  162 kWDrill Pipe Sizes60 X 3,000 mmHole Dia80-115 mmWorking Pressure15 barF.A.D12 m3/minTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions6000X2800X2750 mm
Detailed Images

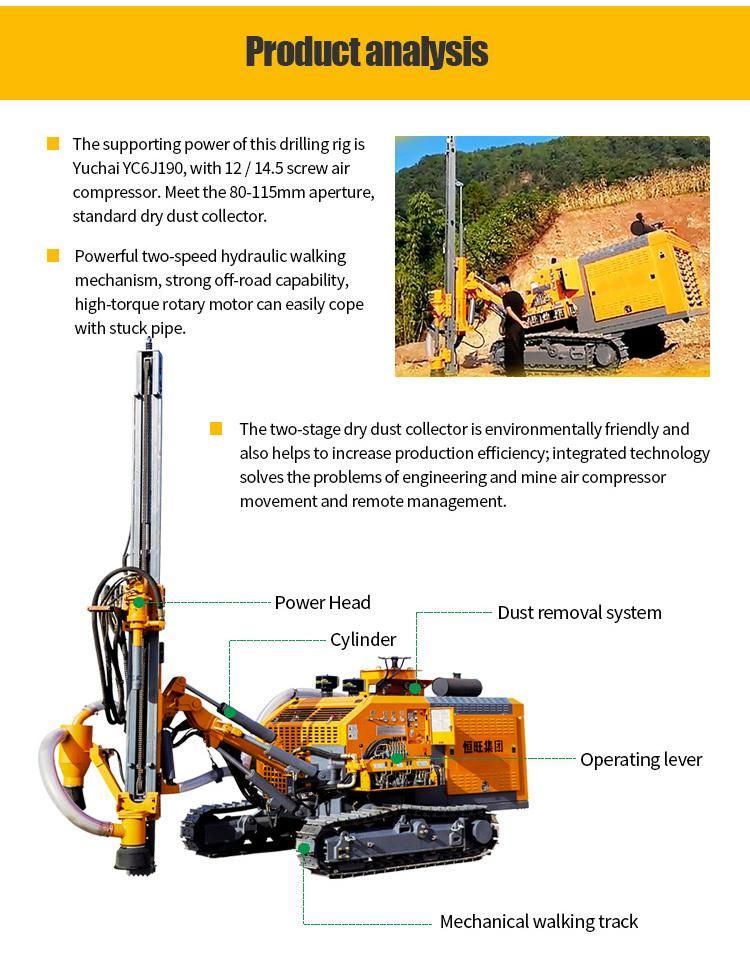

20m Depth 110mm Blasting Borehole Rock Drill in Peru Mining

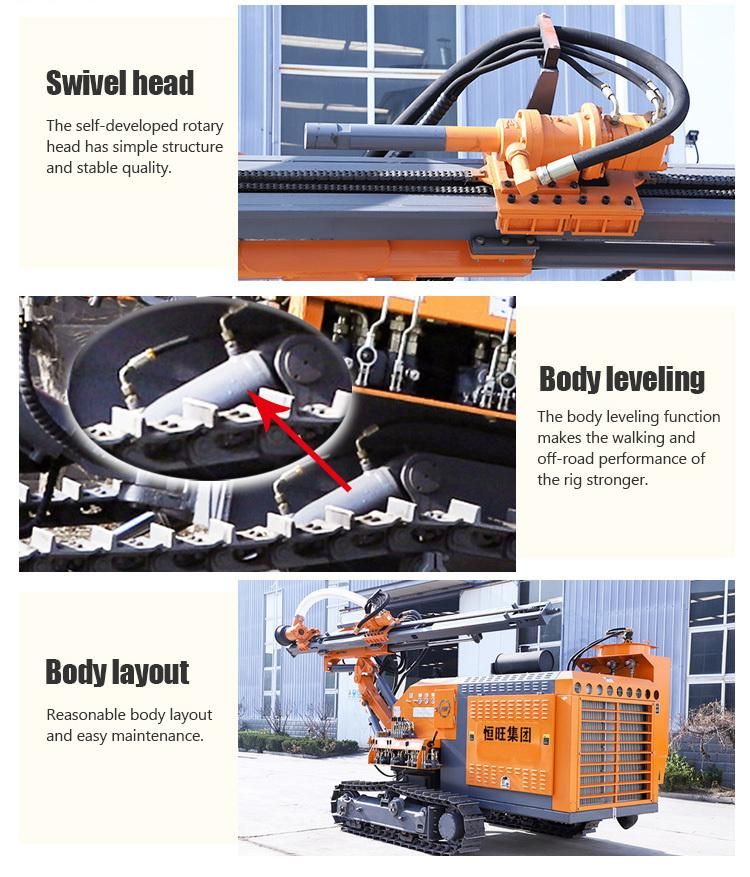

High Quality gold mine drilling machine and Durable.

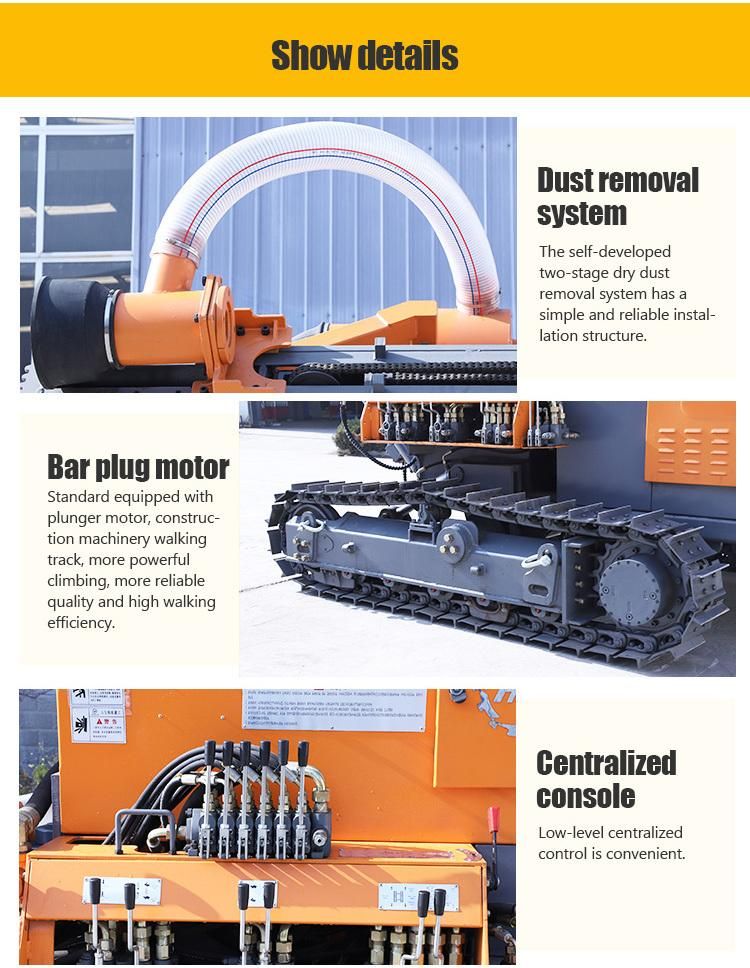

20m Depth 110mm Blasting Borehole Rock Drill in Peru Mining

20m Depth 110mm Blasting Borehole Rock Drill in Peru Mining

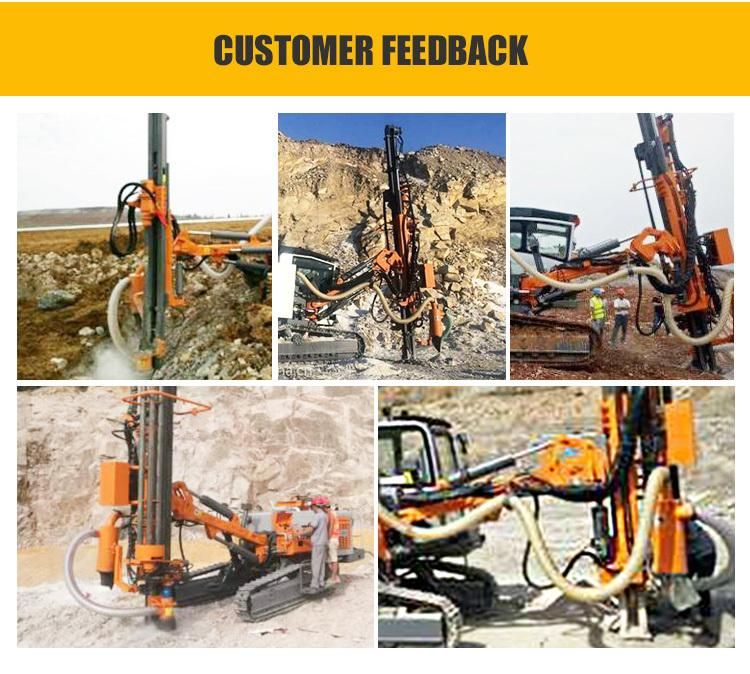

Construction Site of  open pit mine drilling machine20m Depth 110mm Blasting Borehole Rock Drill in Peru Mining
