Drill Stone Rig Mine Pneumatic Air Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：Yes
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：HW421
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Dimensions(L*W*H)：6000X2800X2750mm
  • Operating Weight：6800kg
  • Diesel Engine Power：162kw
  • Drill Depth：20m
  • Hole Diameter：80-115mm
  • Air Comrpessor Size：14.5bar
  • Transport Package：Roro Ship
  • Specification：6800kg
  • Trademark：HW
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：3000pieces,Month

Description

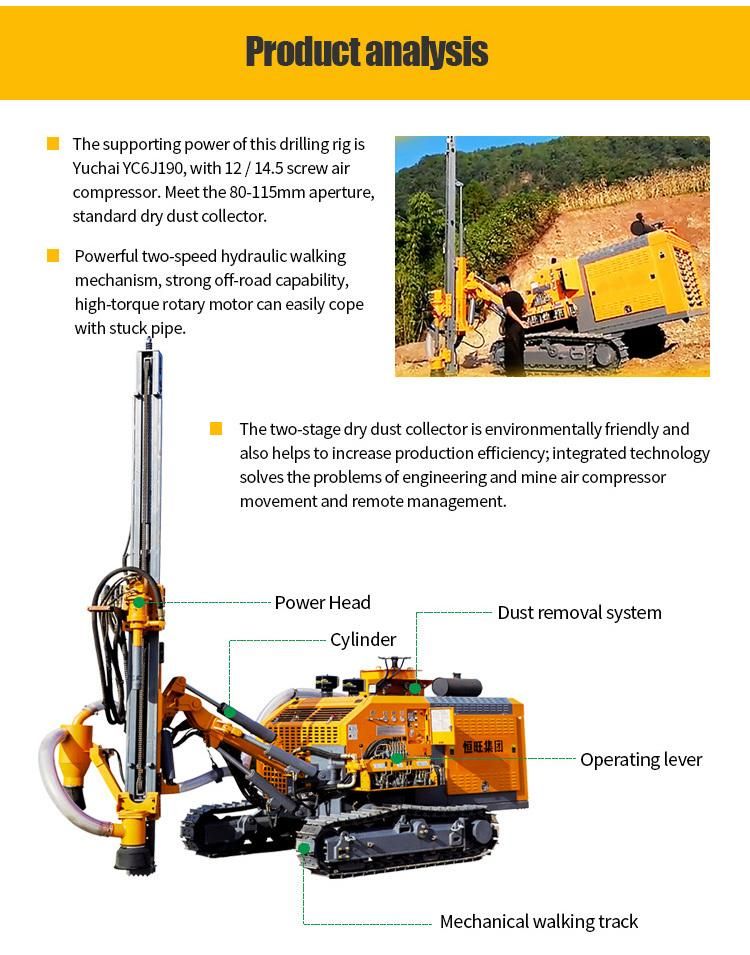

                                       air compressor built-in  surface DTH mine drilling rig for quarry                                                                                     ModelHW421Machine Weight6800kgEngineYuchai  162 kWDrill Pipe Sizes60 X 3,000 mmHole Dia80-115 mmWorking Pressure15 barF.A.D12 m3/minTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions6000X2800X2750 mmWidely Used International Standard 1 Ton New Mini Excavator Prices
