• Type：track
• Engine Power：179 kW
• Max. Torque：19000 N·m
• Max. Mud Pump Flow：450 L,Min
• Transport Package：Nude Packing
• Specification：7300*2250*2270 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Type track Engine Power 179 kW Max. Torque 19000 N·m Max. Mud Pump Flow 450 L/Min Transport Package Nude Packing Specification 7300*2250*2270 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1. Close-circuit system is adopted for rotation system; automatic variable system is adopted for push & pull, clamping and walking and it is under load-sensitive control. Advanced hydraulic system raises more than 20% productivity, reduces about 50% heat, and saves more than 20% energy compared to traditional one.
2. The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
3. Four bar linkage luffing structure is adopted for main girder, which highly increases entry angle range and ensures the large angle and rig tracks are not off ground, having improved the safety performance.
4. Wire-control walking system can ensure the safety when the machine performs walk, transfer and load & unload.
5. The machine is equipped with φ76×3000mm or φ83×3000mm, and the machine body occupies a moderate area, meeting the requirement for high efficiency construction in small place.
6. Main hydraulic components are from the international first-class hydraulic components manufacturer, which greatly improve the reliability of the product performance and safety.
7. Electric design is reasonable with low failure rate, which is easy for maintenance.
8. The steel track with rubber plate is adopted for crawler, which can not only bear high load, but also satisfy walking on different roads.
9. Rack and pinion system is adopted for push&pull, which is good for high effiency, long life, stable working and maintenmance is also convenient.

[Main Technical Parameters]


Engine Power	179 kW	Max Torque	19000 N·m
Rig Weight	13000 kg	Dimension(L*W*H)	7300*2250*2270 mm
Max. Push & Pull Force	430/860N	Max Rotation Speed	185 r/min
Max.. Push & Pull Speed	53 m/min	Max. Mud Pump Flow	450 L/min
Caterpillar Walking Speed	3-5 km/h	Max. Mud Pump Pressure	8 Mpa
Enter Drill Angle	12-25°	Max. Climbing Gradient	18°
Max. Aperture Diameter	Φ1350 mm(Soil Depended)	Max. Crossing Length	650 m(Soil Depended)

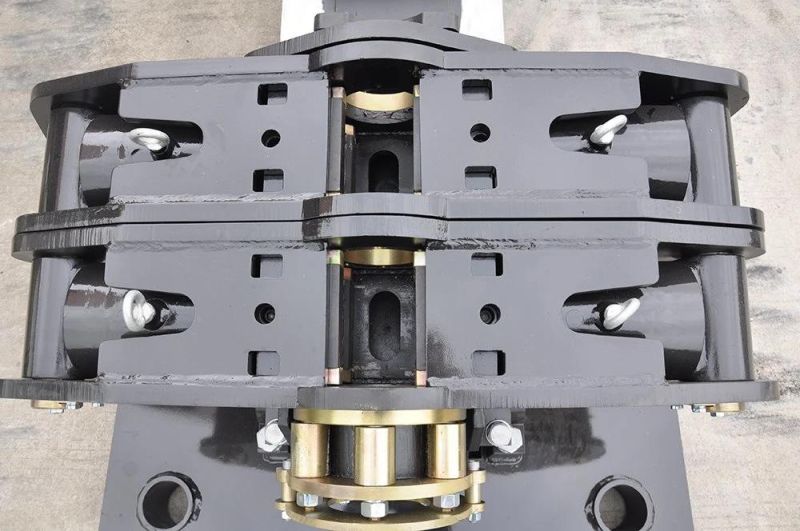

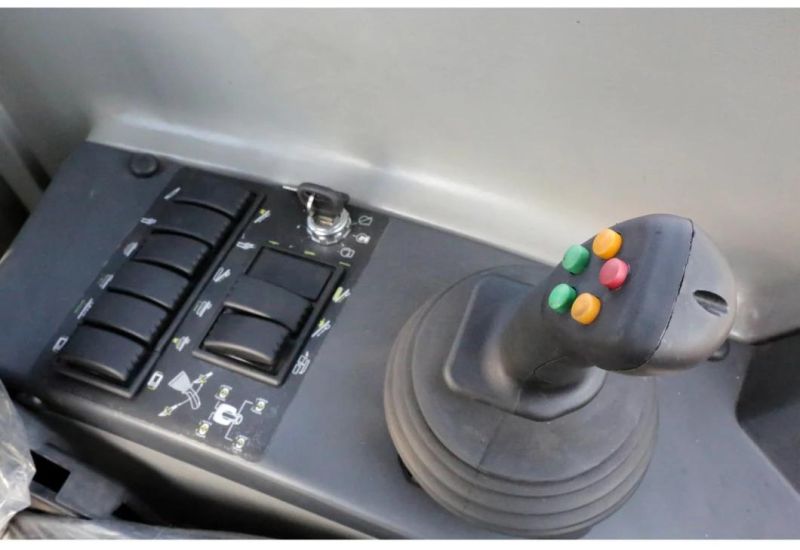

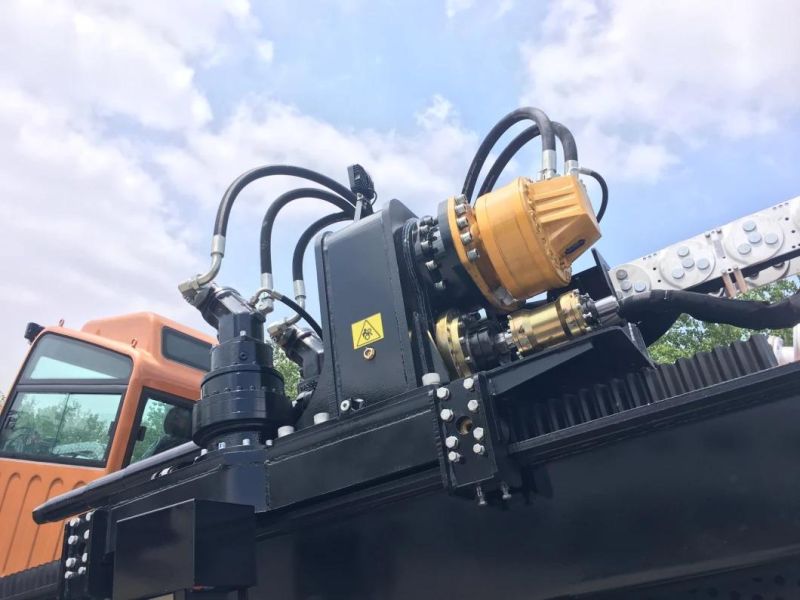

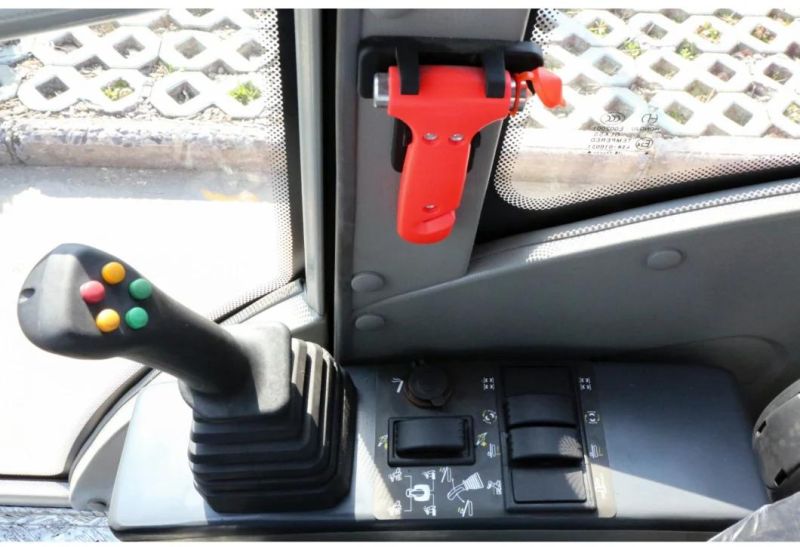

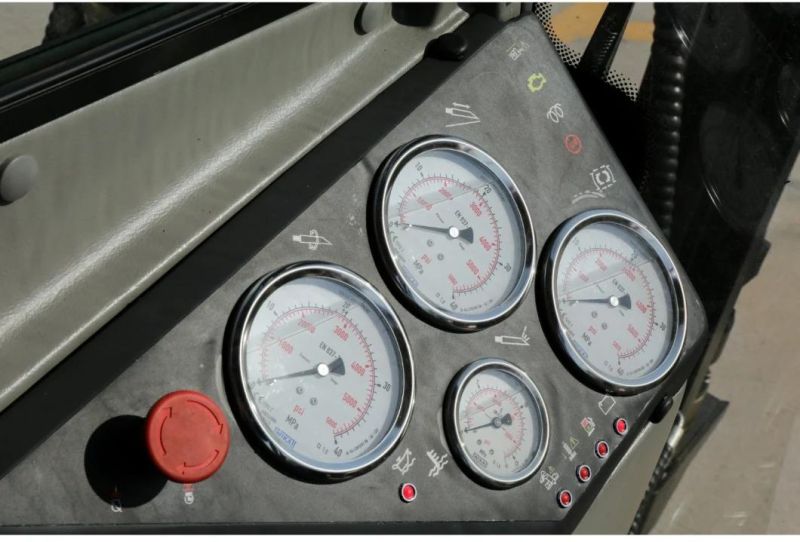

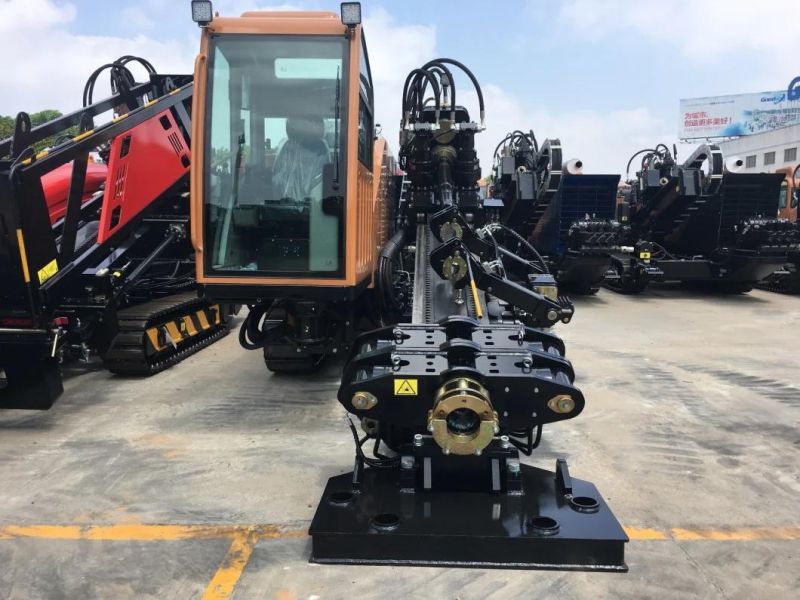

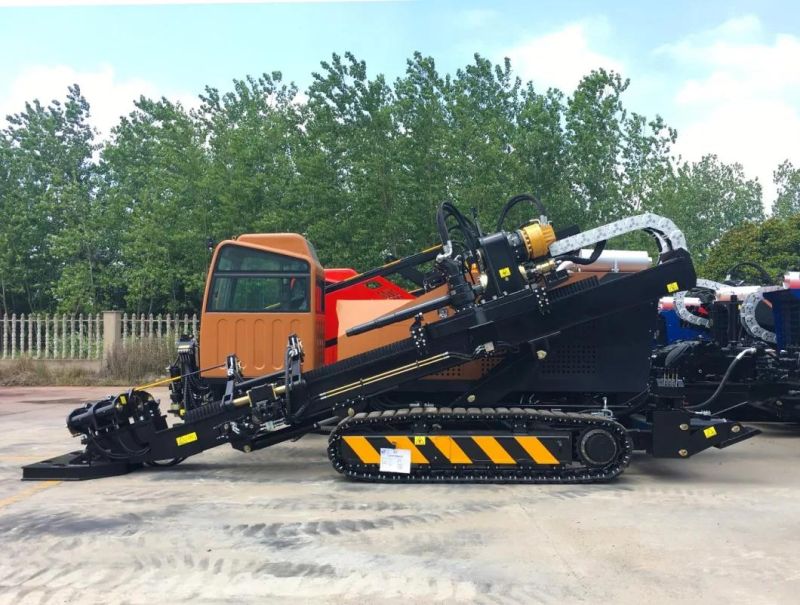

[Product Photos ]













[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is a national high-tech enterprise, which is specialized in research & development, manufacturing, sales and service for trenchless equipment. Our main products are GD/GS series of horizontal directional drilling machine and accessories. As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which has filled in multiple domestic and foreign technical blanks. Many kinds of products have obtained national and provincial progress prize in science and technology of machinery industry. In 2018, "Goodeng Machine" had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
