• Model NO.：JT20
• Transport Package：Wooden Case
• Trademark：raytone
• Origin：Linyi, Shandong
• HS Code：90248000
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. JT20 Transport Package Wooden Case Trademark raytone Origin Linyi, Shandong HS Code 90248000 Production Capacity 50 Sets Per Month

Product Description

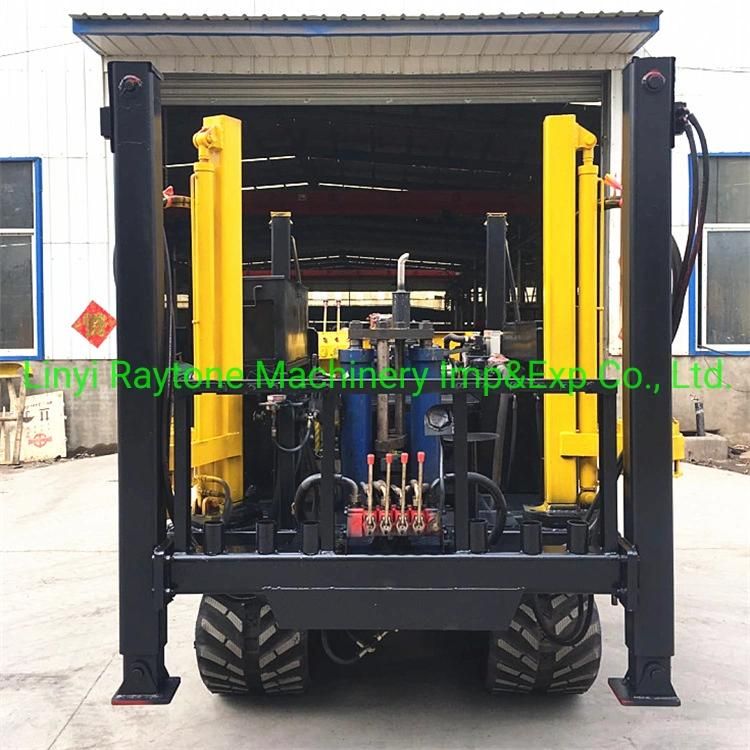

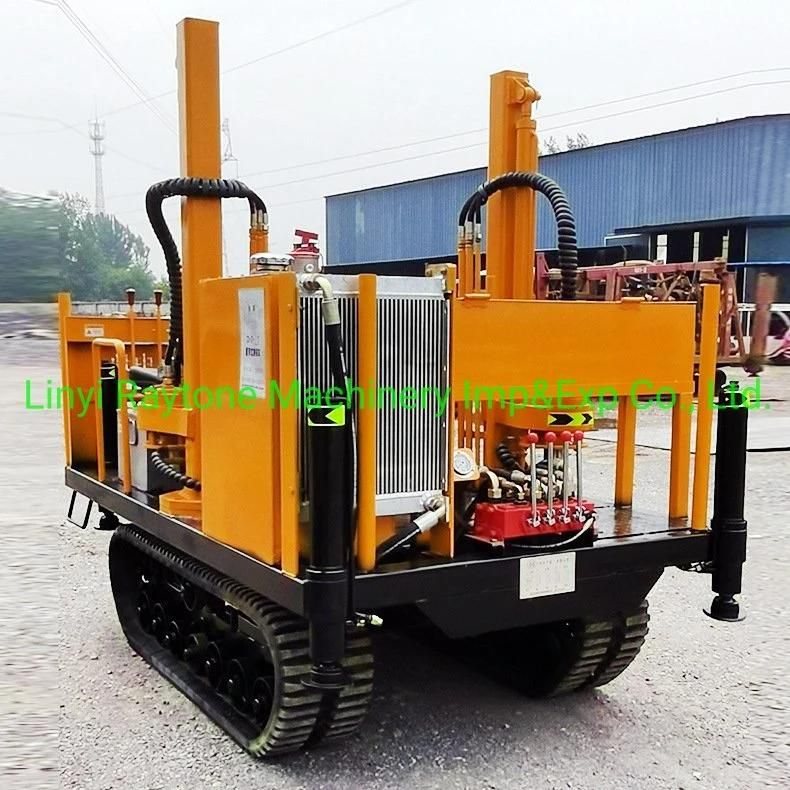

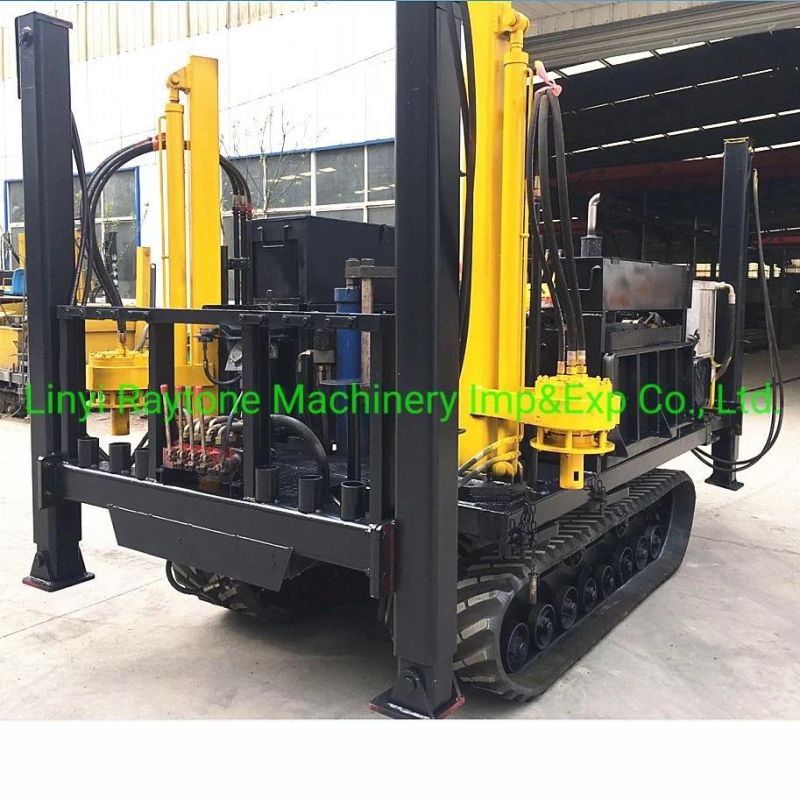

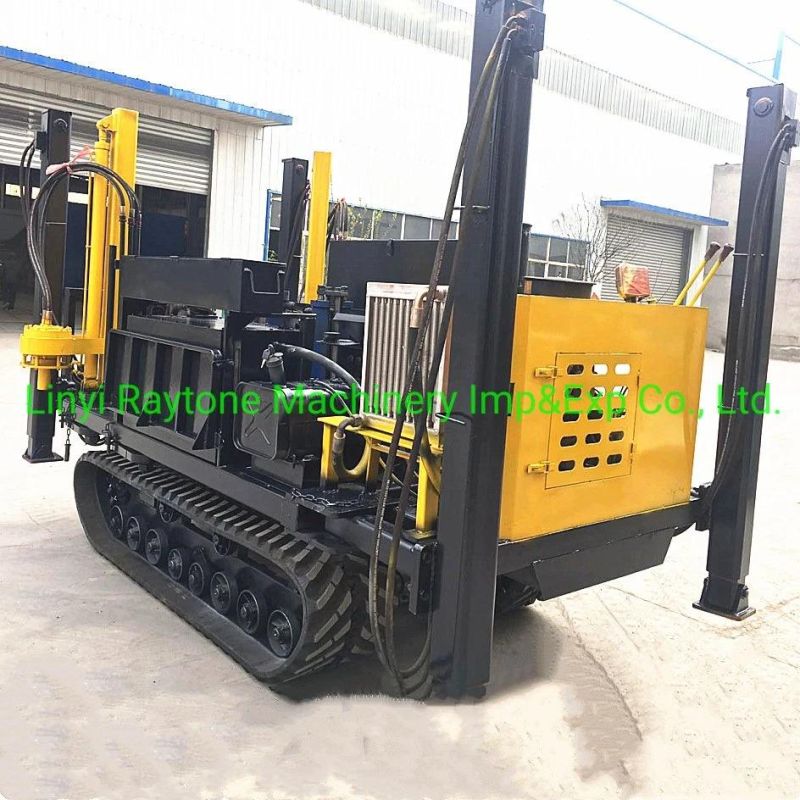

The JT-20 crawler static penetration tester is composed of a crawler chassis, a diesel engine, a hydraulic jacking system, and a controller, all assembled on a frame.
1. Main features
1. This machine has a wide range of use and can be used interchangeably with static probe components, reducing the number of personnel, reducing labor intensity and saving costs.
2. It is suitable for complex terrain and landforms such as beaches, river beaches, sandy land and paddy fields.
3. The unique hydraulic small crane structure can easily load and unload the penetrating cylinder when excavating miscellaneous soil.
4. The main component combination of the bulk static probe machine is adopted, which can also use the user's original bulk equipment to reduce costs.
5. Single cylinder power system, low fuel consumption.
6. This machine is not only an ideal equipment for static penetration testing, but also equipped with accessories, which can be used for hole pressure static testing, flat shovel side expansion, cross plate shear, and press-in wave velocity test.
7. The handle is centralized and easy to operate.
2. Technical specifications
1. Basic parameters of the sounding machine
Rated penetration force: (KN) 150-200 Rated pulling force: (KN) 180-230
Penetration speed: (m/min) 1.2±0.3 Working stroke: (mm) 500
Anchor motor: QJM12-1.25 Working pressure: (MPa) 16
Speed: (rpm) 4-160 Engine: ZS1105 diesel engine
2. Walking part of crawler chassis
Theoretical speed forward (Km/h) 0.9, 2.0, 2.7, 3.2, 6.3, 15
Reverse gear (Km/h) 0.9, 2.1 Rated load mass (KN) 30
Rated climbing degree (degrees) uphill 30, downhill 30 Ground clearance (mm) 200
Track length (mm) 4500 Foot width (mm) 350
Track center distance (mm) 1100 Track grounding length (mm) 1600
3. Hydraulic system
Gear pump: CBF-F425-AEP Rated speed: (r/min) 2000
Flow rate: (L/min) 25 Pressure: (MPa) 20
4. Allowable working temperature
Maximum ambient temperature: (ºC) 40 Minimum ambient temperature: (ºC)-20 Engine water temperature: (ºC) <90 Hydraulic oil temperature: (ºC) <65
5. Overall dimensions of the whole machine (length*width*height) 2540* 1610*1700 (mm)
Machine weight 2200 (kg)
