• Model NO.：EBZ200A
• Drilling Way：Rotary
• Length：10440mm
• Shovel Plate：3600,3200,2800mm
• Main Body：2520mm
• Travelling Speed：7m,Min
• Ground Pressure：0.132MPa
• Gross Power：325kw
• Power of Electric Pump Motor：110kw
• Input Voltage：AC1140 V
• Input Frequency：50Hz
• Rotation Speed of Cutting Head：46,23r,Min
• Stretch：550mm
• Transport Package：Nude Package,RO-RO,Bulk Shipment,Suitable Containe
• Trademark：Sinomada
• Origin：China
• Production Capacity：300piece,Month

Basic Info.

Model NO. EBZ200A Drilling Way Rotary Length 10440mm Shovel Plate 3600/3200/2800mm Main Body 2520mm Travelling Speed 7m/Min Ground Pressure 0.132MPa Gross Power 325kw Power of Electric Pump Motor 110kw Input Voltage AC1140 V Input Frequency 50Hz Rotation Speed of Cutting Head 46/23r/Min Stretch 550mm Transport Package Nude Package/RO-RO/Bulk Shipment/Suitable Containe Trademark Sinomada Origin China Production Capacity 300piece/Month

Product Description

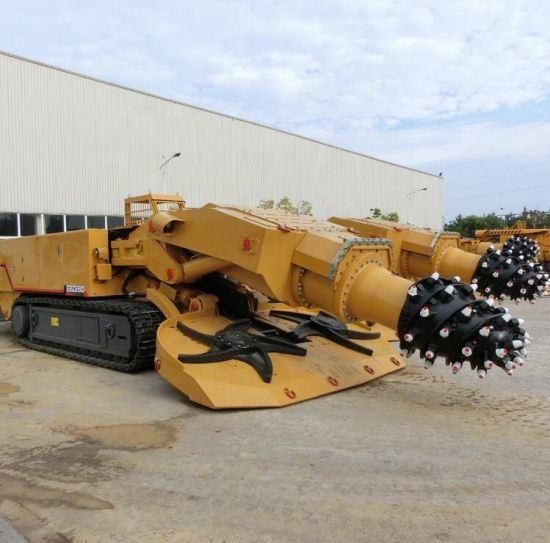

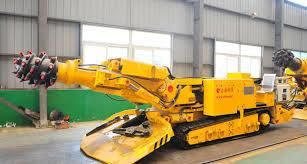

 58 Ton Road Header Mining Drilling Rigs EBZ200A Hot SellingProduct Features:

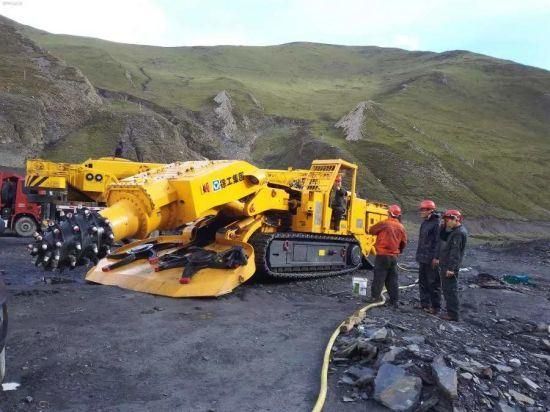

It's applicable for underground tunneling of coal mine,water conservancy,road tunnel and other culverts.

SPECIFICATION:

Item	Unit	Parameter
Overall weight	t	58
length	mm	10440
Shovel plate	mm	3600/3200/2800
Main body	mm	2520
Cutting head is laid horizontally on the highest point	mm	2205
Main body	mm	1795
Undercut depth	mm	440/215
Ground clearance of machine	mm	250
Height	mm	5030/4650
Width	mm	6260/5700
Area	m^2	31.5/26.4
gantry height	mm	400
Grade ability	°	±18
Travelling speed	m/min	7
Ground pressure	MPa	0.132
Gross power	kW	325
Power of Cutting motor	kW	200/100
Power of electric pump motor	kW	110
Input voltage	V	AC1140
Input frequency	Hz	50
Rotation speed of cutting head	r/min	46/23
Stretch	mm	550
Star wheel type	m³/min	4.2
Crawler width	mm	600
Out. width of crawlers	mm	2576
Tensioning style	/	Cylinder tensionning and snap-gauge locking
Water pressure of outside spraying	MPa	≥4
Water pressure of inside spraying	MPa	≥2
Max. non-removable parts size	m	3.125×1.39×1.41
Max. non-removable parts mass	kg	5900
