15 M Wheel Rotary Excavator / Small Rotary Excavator Rotation 180 Degree
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：10-30m
- Bit Type：Manganese Steel Bit
- Drilling Way：Rotary
Base Info
- Model NO.：HWDR150D
- Type：Four-Wheel Trailer
- Color：Yellow or Green
- Drilling Diameter：Max.2200mm
- Piling Depth：Max. 15m
- Hydraulic System Displacement：80ml,R

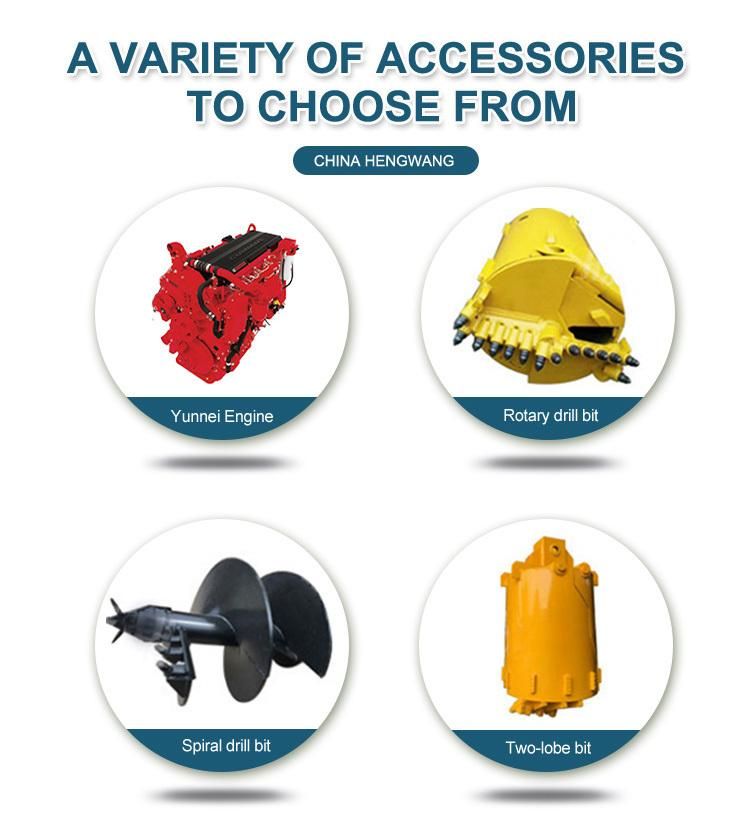

- Accessory：Dril Bits
- Geology：Soil and Small Stone
- Project：Construction Usage
- Loading：1set,40hq Container
- Main Overseas Markets：Southeast Asia
- Transport Package：Pack in Nude
- Specification：15m 13m
- Trademark：HW
- Origin：Shandong, China
- HS Code：8430419000
- Production Capacity：50sets,Month
Description
Model
HWDR150D
Dimensions
8700mm*2300mm*3200mm
Wheelbase
3250mm
Wheel-track
1600mm/Front, 1260mm/Rear
Vehicle weight
9000(KG)
Engine power
120-150HP
Piling depth
1-15(m)
Drilling diameter
400-2200(mm)

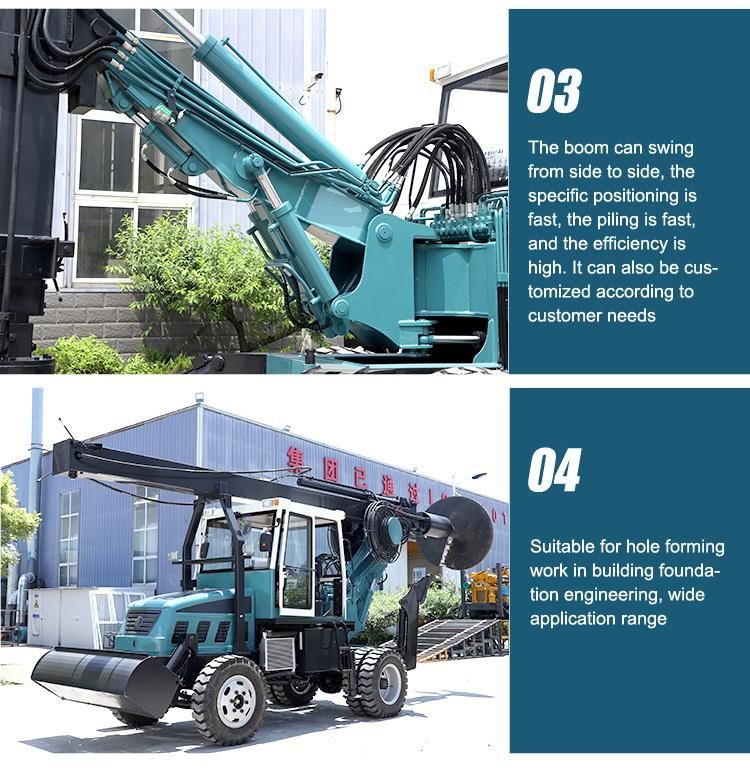

Swing angle
180°
Walking speed
50(km/h)
Working pressure of hydraulic system
20-30(Mpa)
Hydraulic system displacement
80ml/r
We also produce other depth. for square kellybar and machine lock lever bar, Max depth 30m.
15 m wheel rotary excavator / Small rotary excavator rotation 180 degree
