• Model NO.：HW160 HW190 HW230
• Drilling Way：Compound
• Type：Crawler
• Product Name：China Factory Mini Water Well Drilling Rig
• Drilling Depth：230m
• Maximum Borehole Caliber：300mm
• Minimum Borehole Caliber：75mm
• Diameter of Drill Pipe：42,50,60mm
• Drilling Angle：90-75
• Weight(Not Include Power)：1600kg
• Unity Machine Dimension：2750*950*1770mm
• Spindle Rotating Speed：64,128,287,557r,Min
• Spindle Stroke：450mm
• Max. Single Line Lifting Capacity：2400kgs
• Reel Lifting Speed：1.64m,S
• Steel Wire Rope Diameter：13mm
• Steel Wire Rope Capacity：35m
• Hug Floodgate Diameter：245mm
• Transport Package：Export Box
• Specification：160m 190m 230m
• Trademark：HW
• Origin：Shandong
• HS Code：8430419000
• Production Capacity：500PCS ,Month

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsChina factory mini water well drilling rig shallow well drills Pictrures:

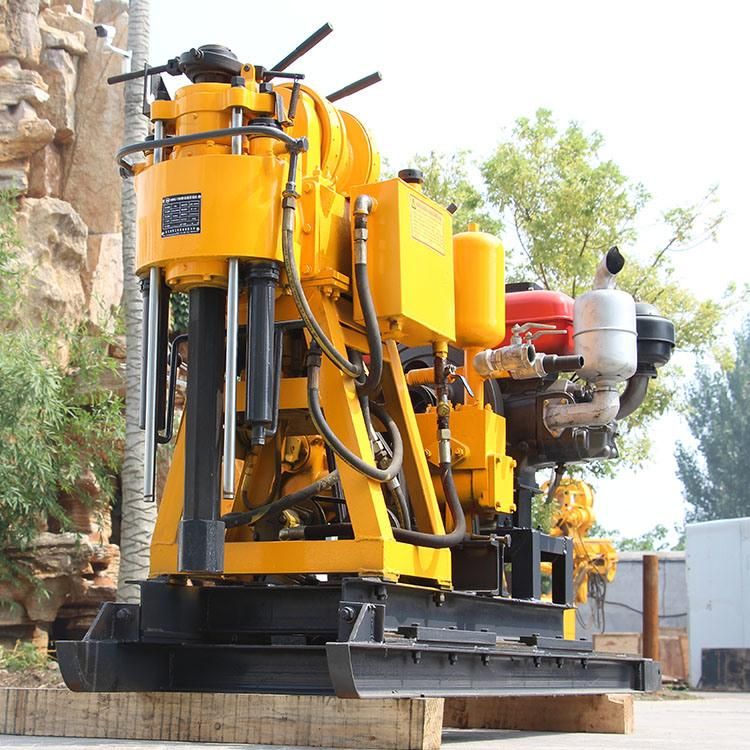

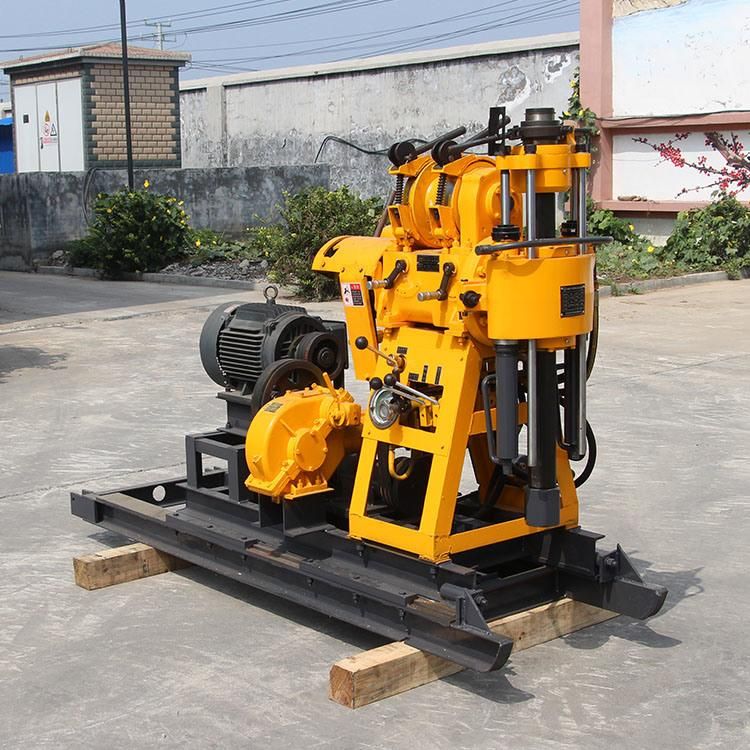

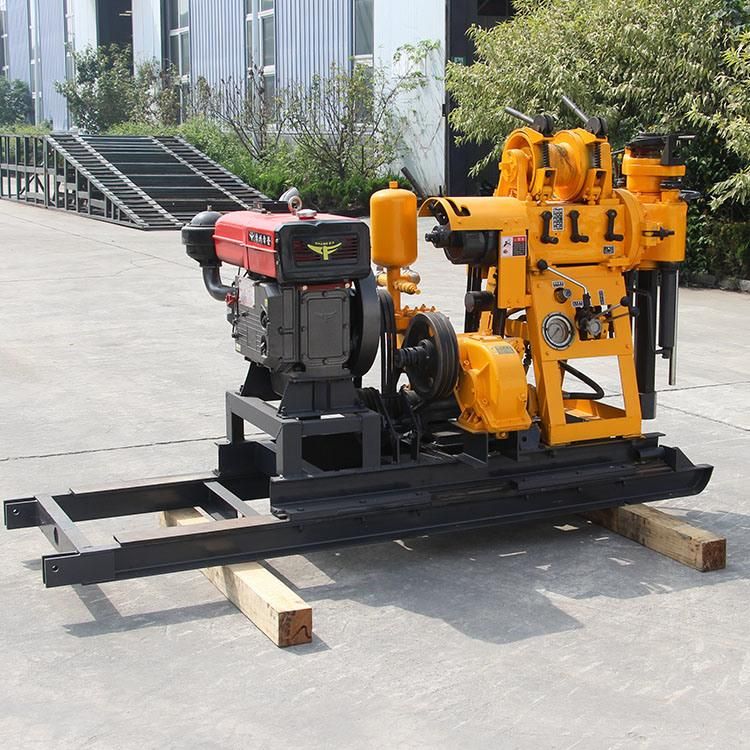

China factory mini water well drilling rig shallow well drills

FAQ

Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.


Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories
broken can be changed for a new one. And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
