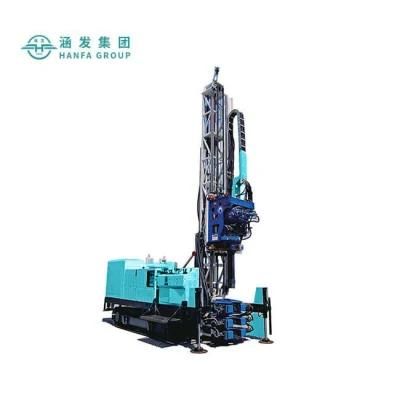

• Model NO.：HFSF-100S
• Drilling Way：Impactor
• Drilling Depth：100m
• Drilling Diameter：86,126mm
• Frequency：4000cpm
• Feed/Balance：40,60kn
• Rotation Speed：0-41;0-82min
• Drill Head Side Open：0-67 Degree(170mm Available Diameter)
• Hoist,Single：11kn
• Weight：8500kg
• Transport Package：Machine in Nude Package,Spare Parts in Wooden Case
• Specification：6300*2150*2550mm
• Trademark：HF
• Origin：Zhengzhou City, China
• HS Code：8430490000
• Production Capacity：10sets,Month

Basic Info.

Model NO. HFSF-100S Drilling Way Impactor Drilling Depth 100m Drilling Diameter 86/126mm Frequency 4000cpm Feed/Balance 40/60kn Rotation Speed 0-41;0-82min Drill Head Side Open 0-67 Degree(170mm Available Diameter) Hoist,Single 11kn Weight 8500kg Transport Package Machine in Nude Package,Spare Parts in Wooden Case Specification 6300*2150*2550mm Trademark HF Origin Zhengzhou City, China HS Code 8430490000 Production Capacity 10sets/Month

Product Description

Product Description
Heavy duty drills with great power offering the best performance with wider applications in the drilling for deeper environmental investigation,monitoring well,soil remediation and geothermal hole, etc.

Application
Environmental investigation
Borehole drilling for GSHP system
Geological investigation
Water well and observation well

Technical Data


Models	HFSF-100S
Recommended depth(m)	100
Sample/GSHP drill diameter	86/126
Rotation speed(min)	0-41;0-82
Frequency(cpm)	4000
Vibration force(KN)	78.4(8000kgf)
Drill Head Side Open	0-67 degree(170mm available diameter)
Feed/balance(KN)	40/60
Drill Head Feeding Stroke(mm)	3500
Hoist(KN),single	11
Diesel Engine(kw)	Cummins 4BT3.0-C100 100ps@1800
Outside dimension During transportation	6300*2150*2550
Approx.weight(kg)	8500

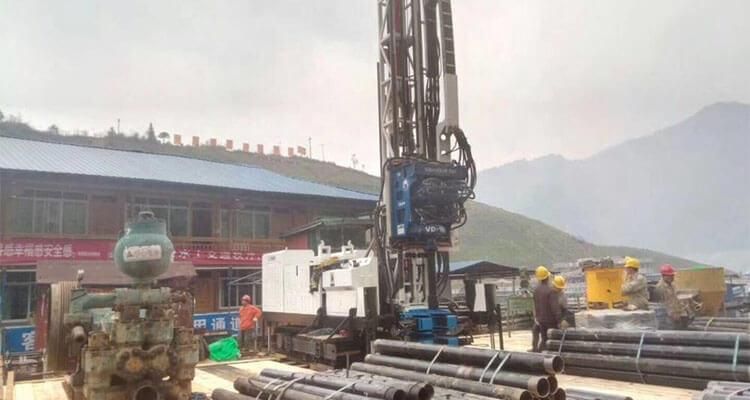

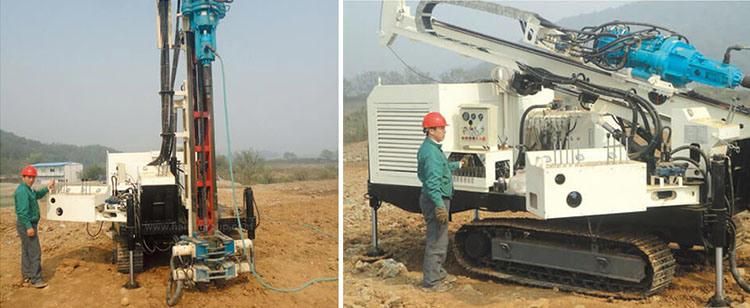

Working Site

Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well
field, with the ability to research,manufacture and market. Now, the Group pursues high standard
manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling
rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly
used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well,
geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific
Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000
and are national inspection-free products.

1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it,
we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging
requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first
time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.

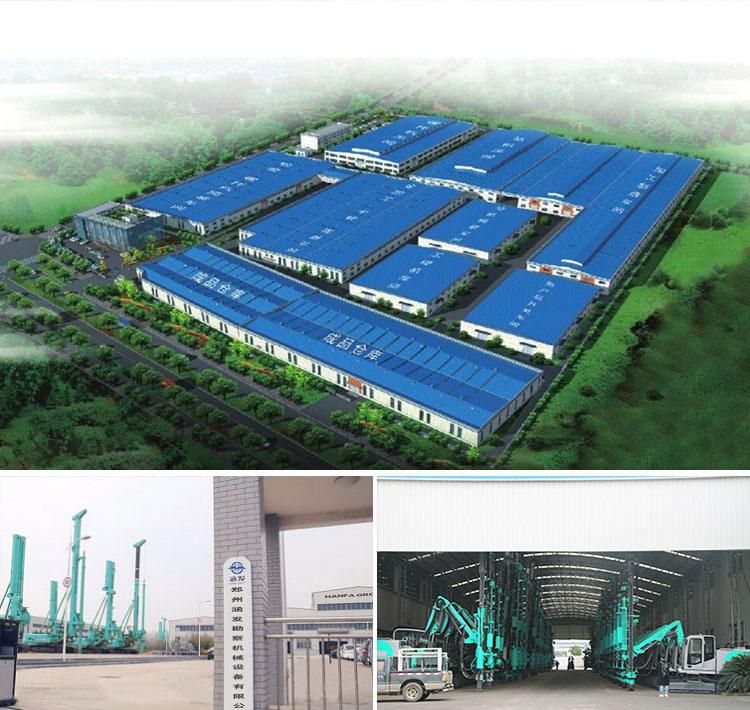

Workshop


Our Customers


Service


Our Honor


FAQ
1, Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig,
DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South
America, Africa, and get a good reputation in the world.

2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for
checking every machine before leaving our factory.

3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great
number of strict testing in order to offer the best quality to our customers.

4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our
engineer to your worksite and provid the training for your staff.

5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
