• Model NO.：G140YF
• Bit Type：DTH Drill Bit
• Drilling Way：Rotary
• Type：Crawler
• Air Pressure：10.5-24.6 Bar
• Air Consumption：10-20 M3,Min
• for Rock：6-20 F
• Skid Pitch：100 Degree
• Skid Swing Angle：100 Degree
• Engine Power：56 Kw
• Transport Package：Standard Shipping Packing
• Specification：5270mm*1960mm*2300mm
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. G140YF Bit Type DTH Drill Bit Drilling Way Rotary Type Crawler Air Pressure 10.5-24.6 Bar Air Consumption 10-20 M3/Min for Rock 6-20 F Skid Pitch 100 Degree Skid Swing Angle 100 Degree Engine Power 56 Kw Transport Package Standard Shipping Packing Specification 5270mm*1960mm*2300mm Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Product Introduction
 G140YF DTH Drilling Rig
  G140YF High Air Pressure DTH crawler drilling rig has excellent performance with low energy consumption, high efficiency, easy transport. The drilling rig controlled by hydraulic systems,only DTH hammer consume air, so it saves purchase cost of the cost of whole equipment. The rotary system adopts new type motor that confirm maintaining large output of rotary torque, when dragging air compressor, it is very flexible and has strong climbing ability, suitable for rugged ground operations.This rig has high drilling efficiency, easy maintenance, high reliability, capable for mining, highway, water conservancy, power station construction and other blasting hole projects.Specification

Bore diameter(mm)	100-140
Bore depth(m)	60
Walk speed(km/h)	0-2.5
For rock(F)	6-20
Air pressure(Mpa)	1.05-2.46
Air consumption(m3/min)	10-20
Once promotion(mm)	3000
Skid pitch(°)	Up Down Total  100
Skid swing angle(°)	Left Right Total  100
Boom swing angle(°)	Left Right Total  70
Boom pitch(°)	Up Down Total  60
Host power(Kw)	56
Rotation speed(r/min)	0-126
Dimension(L*W*H) (mm)	5270*1960*2300
weight(Kg)	4800

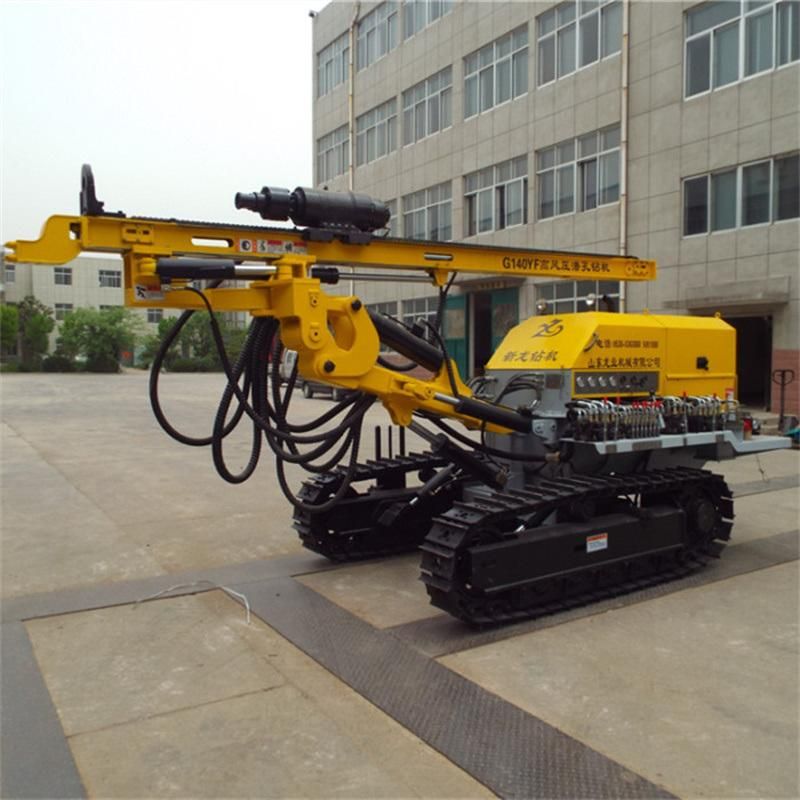

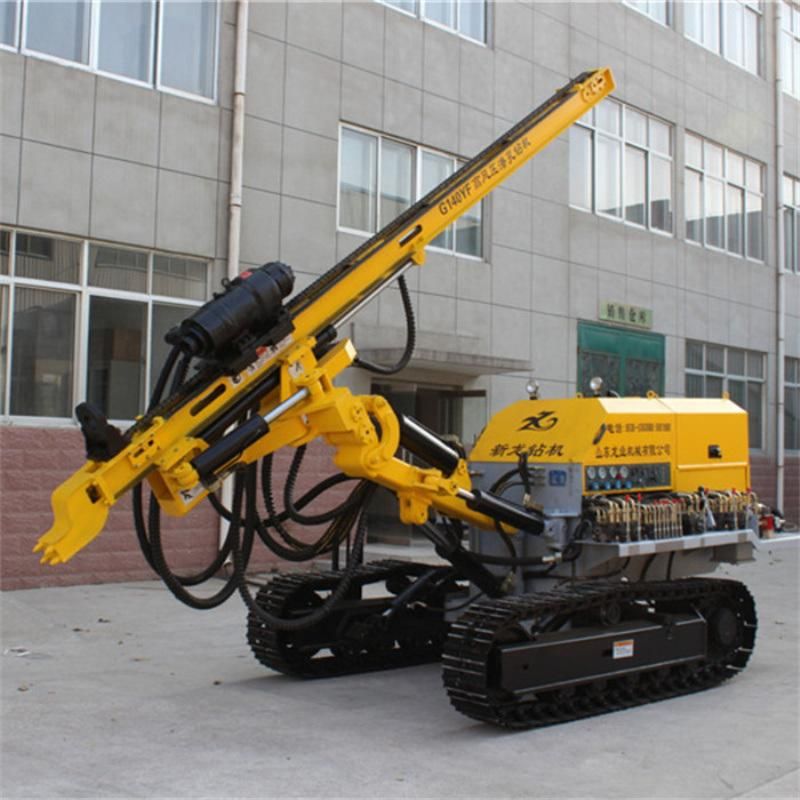

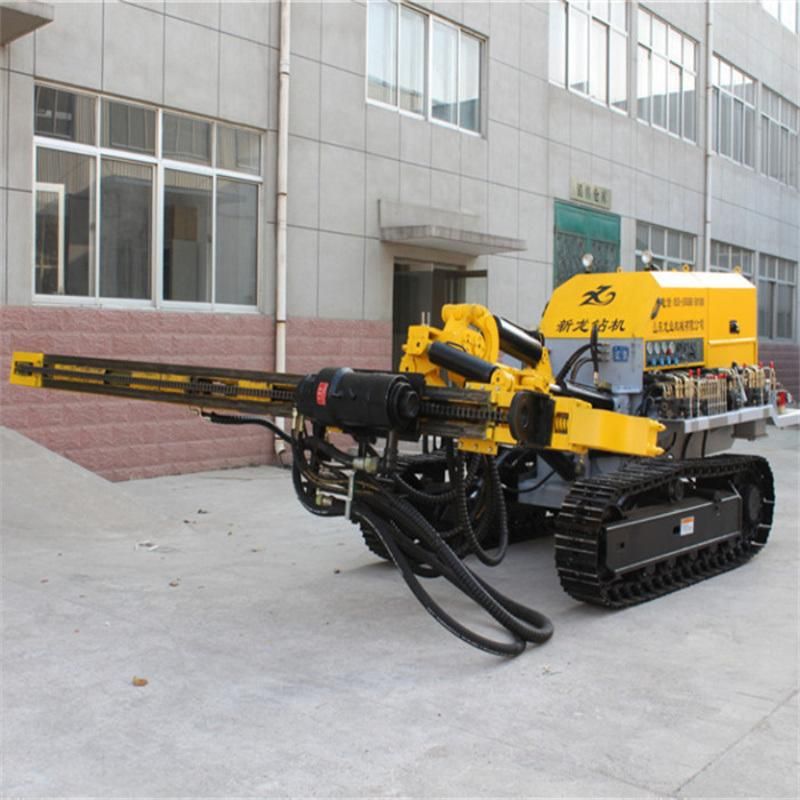

Product Display

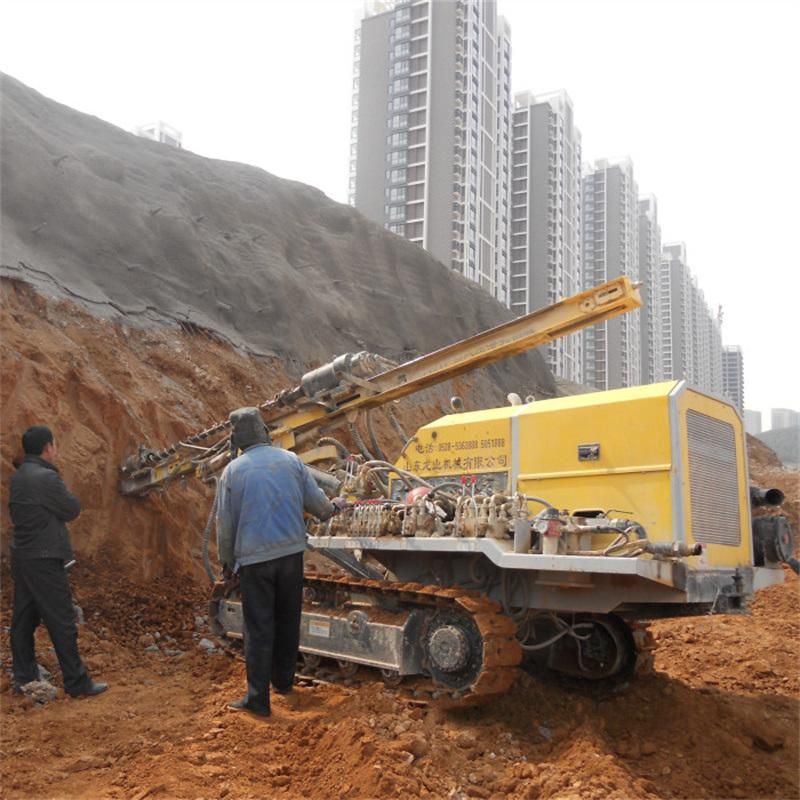

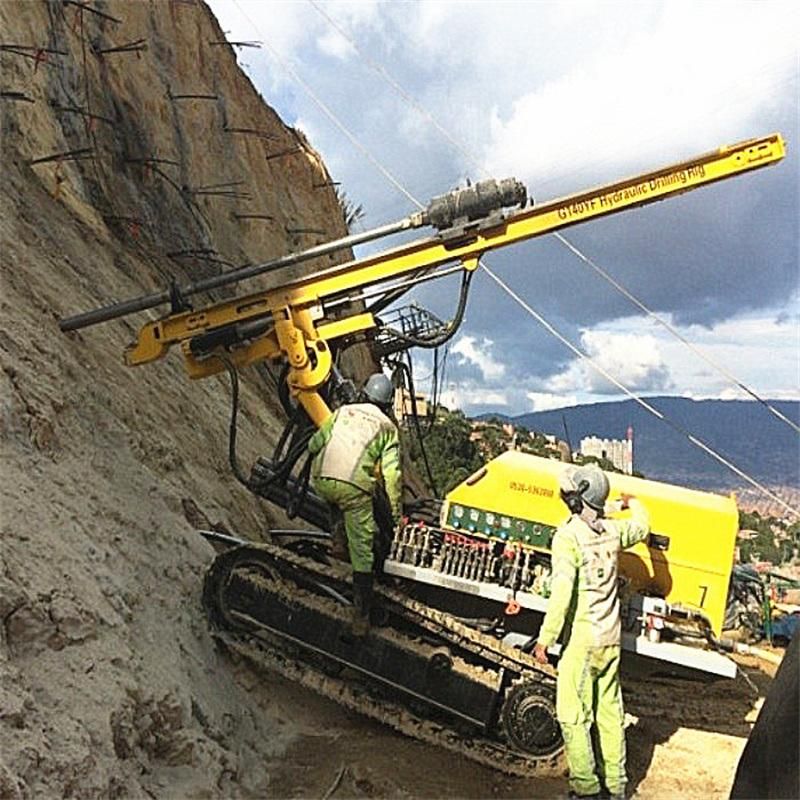

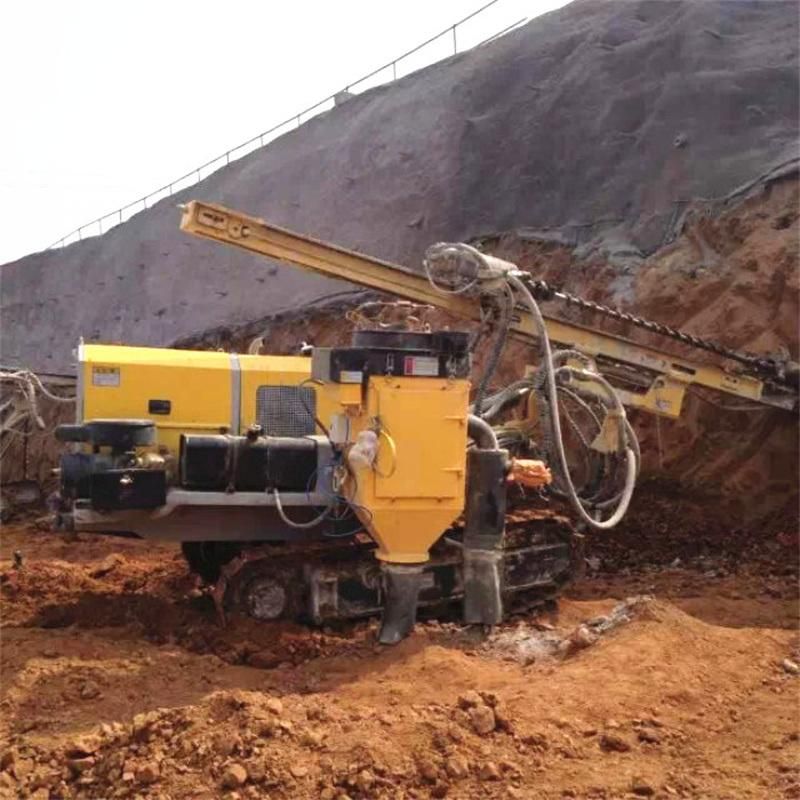

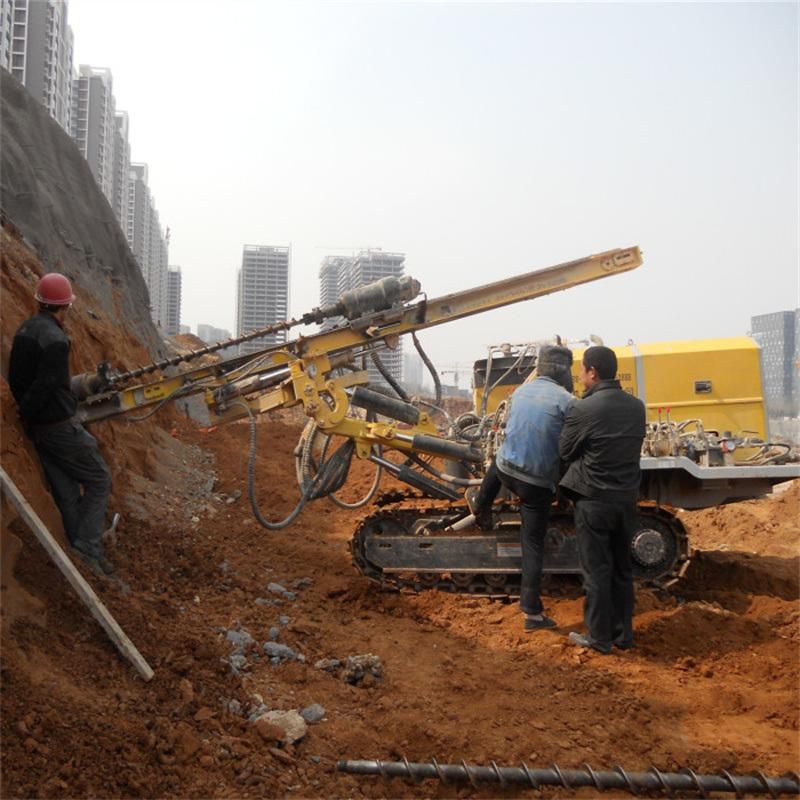

Product Application


Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.
