• Model NO.：SLY100
• Drill Hole Depth：120 Meters
• Bit Type：DTH Drill Bit, Roller Bit
• Drilling Way：Rotary
• Type：Two Wheels Trailer
• Air Pressure：7-14 Bar
• Air Consumption：7-15 M3,Min
• Engine Power：18.37 Kw
• Weight：1700 Kg
• for Rock：6-20 F
• Transport Package：Standard Shipping Packing
• Specification：4375MM*1650MM*1920MM
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. SLY100 Drill Hole Depth 120 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Two Wheels Trailer Air Pressure 7-14 Bar Air Consumption 7-15 M3/Min Engine Power 18.37 Kw Weight 1700 Kg for Rock 6-20 F Transport Package Standard Shipping Packing Specification 4375MM*1650MM*1920MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Product Introduction

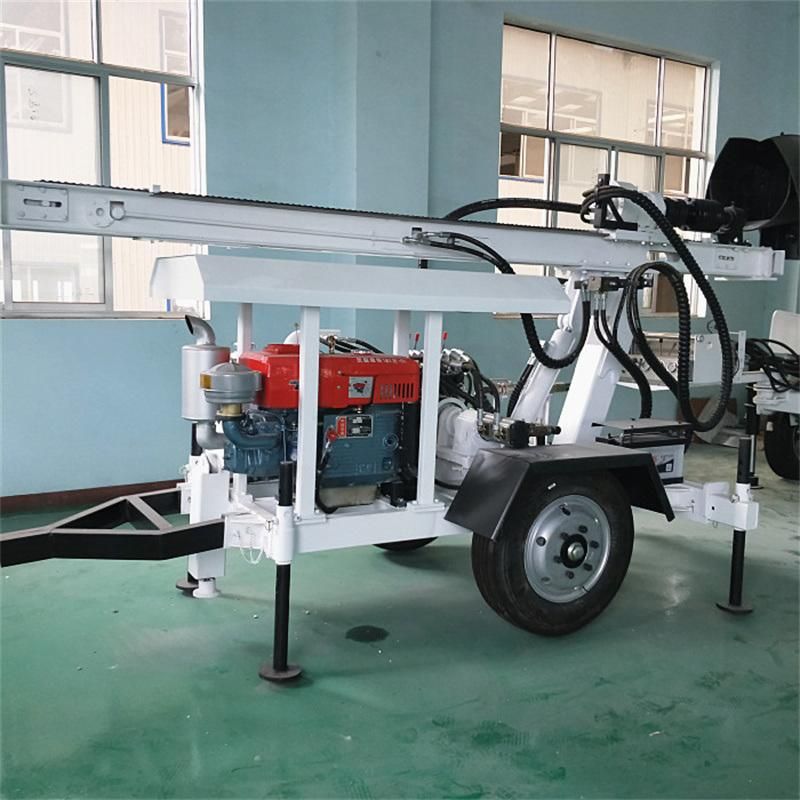

Hydraulic Portable Wheel Water Borehole Drilling Machine

  SLY100 Water Well Drilling Rig is lightweight, high efficient, multi-functional drilling rig, which can use air, foam or mud rotary for drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration holes , in particular in drilling geothermal heating hole, it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Technical Parameters

Bore diameter(mm)	90---140
Bore depth(m)	70---120
Walk speed(km/h)	<20
For rock(F)	6-20
Air pressure(Mpa)	0.7-1.4
Air consumption(m³/min)	7-15
Once promotion(mm)	2000
Skid max angle(°)	90
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-90
Rotation torque(NM)	2200
Dimension(L*W*H)(mm)	4375*1650*1920
Host power(Kw)	18.37
weight(Kg)	1700

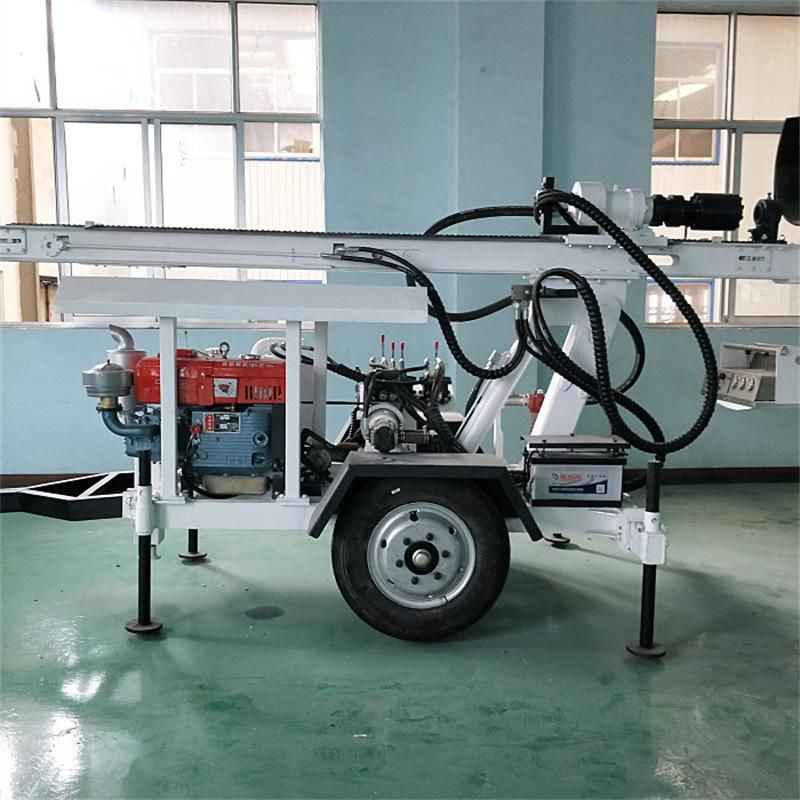

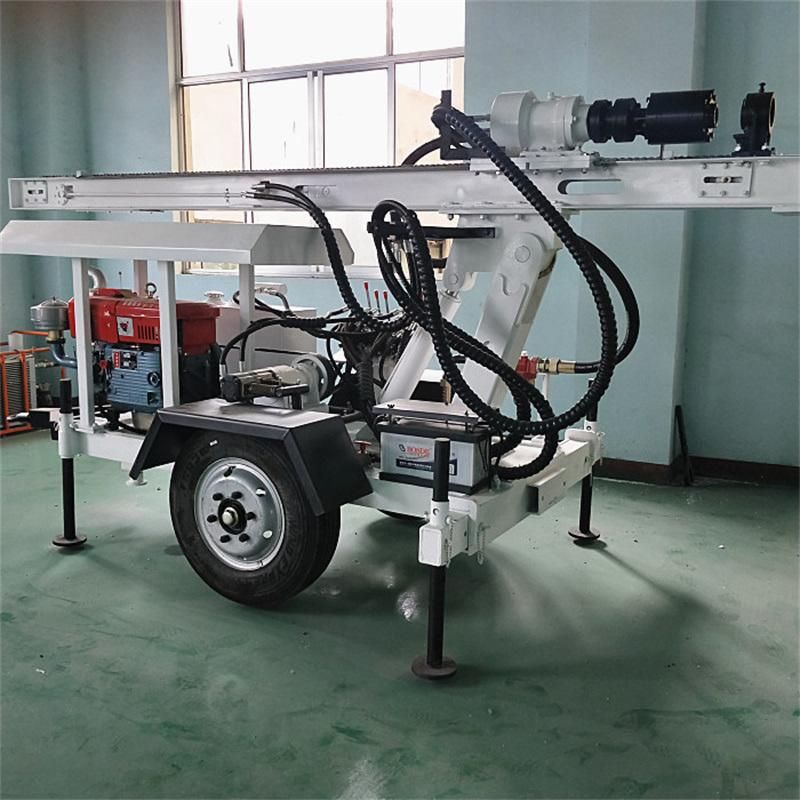

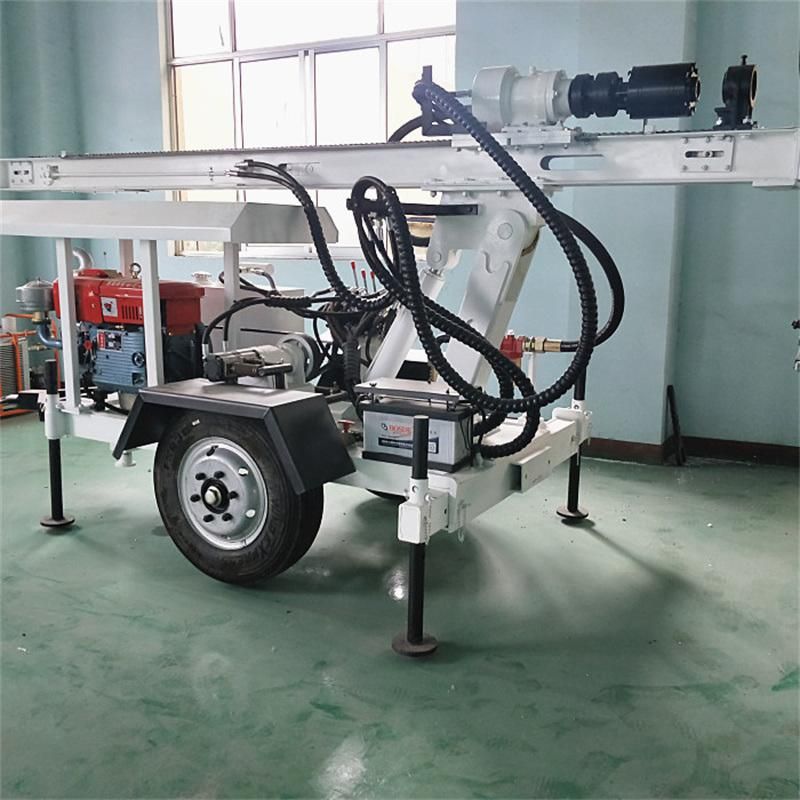

Product Display

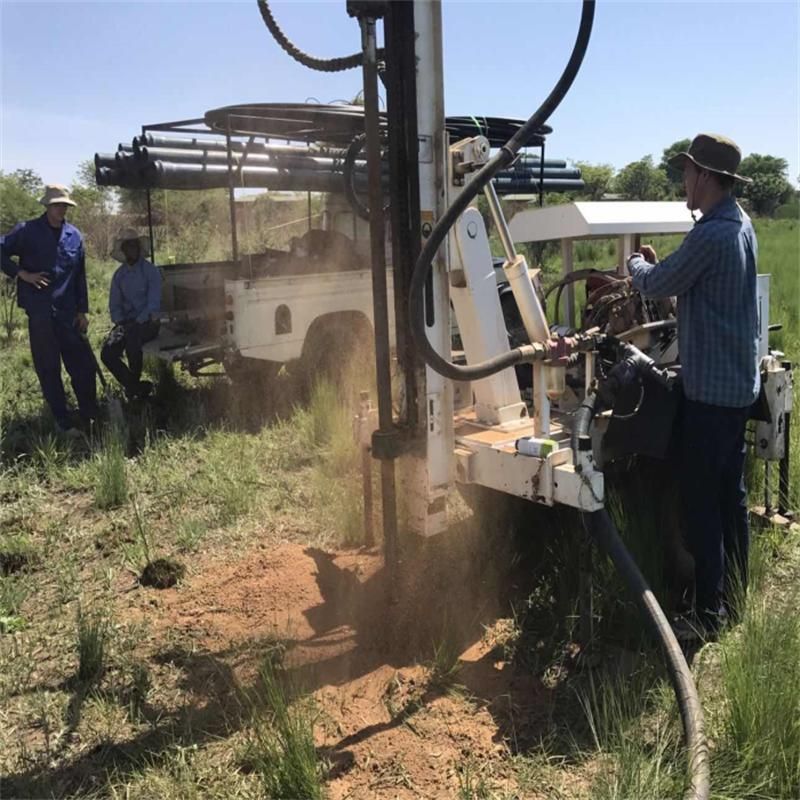

Product Application


Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.


Shipping and Package
Customer Visit

FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for  operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year  for the machine.
