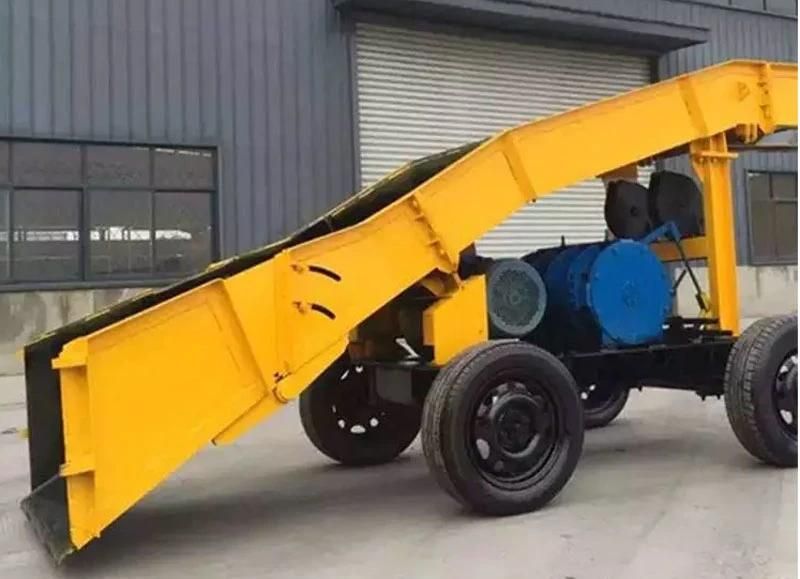

Scraper Loader for Coal Mine

Xibite (Shandong) Precise Machinery Company Limited
  • After-sales Service：a Year
  • Warranty：a Year
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：>300mm

Base Info

  • Model NO.：P90B
  • Drill Hole Depth：>300m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Shandong：Dezhou
  • Transport Package：Box
  • Specification：20
  • Trademark：XBT
  • Origin：China Dalu
  • HS Code：8401200021
  • Production Capacity：50000 a Year

Description

Basic Info.

Model NO. P90B Drill Hole Depth >300m Bit Type Diamond Bit Drilling Way Rotary Shandong Dezhou Transport Package Box Specification 20 Trademark XBT Origin China Dalu HS Code 8401200021 Production Capacity 50000 a Year

Product Description

Scraper Loader for Coal MineP - 15 scraper mucker productivity main parameters in the rock (rake) (m3 / h) : 15.Scraper volume (m3) : 0.15;Working roller traction (kM) : 12.3;Idle roller traction (KN) : 8.8;Main rope pulling speed (m/s) : 1.1 tail rope pulling speed (n/s) : 1.7.Wire diameter (m/s) : 12.5Overall dimensions length x width x height (mm) : 4700 * 1170 * 1750P - 30 b scraper mucker applicable clear height 2 meters (net section 6 square meters) of roadway.
P - 30 b scraper mucker productivity parameters (m3 / h) : 30-50;Rake half volume (m3) : 0.3Winch type: planetary gear double-drum hoist;Work the traction drum (2 n) : 13.23-19.11;Idle roll Jane traction (kI) : 9.48 13.64;Main rope pulling speed (m/s) : 0.85 1.22;Tail rope pulling speed (m/s) : 1.18-1.7 wire diameter (m/s) : 12.5.Overall dimensions length X width X height (mm); 6600 * 1500 * 1950
