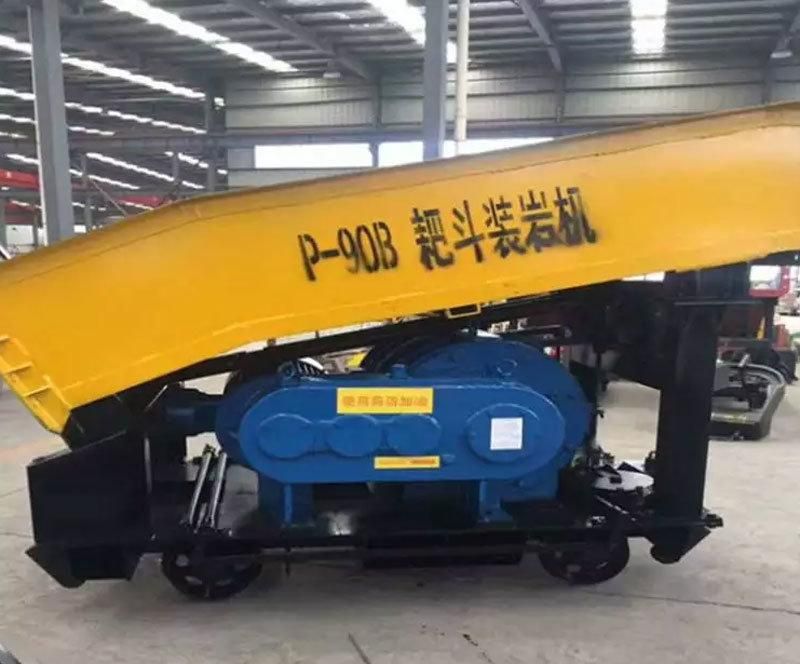

• Model NO.：P90B
• Shandong：Dezhou
• Transport Package：Box
• Specification：8400× 2010× 2531mm
• Trademark：XBT
• Origin：China Dalu
• HS Code：3058161893
• Production Capacity：50000 a Year

Basic Info.

Model NO. P90B Shandong Dezhou Transport Package Box Specification 8400× 2010× 2531mm Trademark XBT Origin China Dalu HS Code 3058161893 Production Capacity 50000 a Year

Product Description

P - 15 scraper mucker productivity main parameters in the rock (rake) (m3 / h) : 15.Scraper volume (m3) : 0.15;Working roller traction (kM) : 12.3;Idle roller traction (KN) : 8.8;Main rope pulling speed (m/s) : 1.1 tail rope pulling speed (n/s) : 1.7.Wire diameter (m/s) : 12.5Overall dimensions length x width x height (mm) : 4700 * 1170 * 1750P - 30 b scraper mucker applicable clear height 2 meters (net section 6 square meters) of roadway.
P - 30 b scraper mucker productivity parameters (m3 / h) : 30-50;Rake half volume (m3) : 0.3Winch type: planetary gear double-drum hoist;Work the traction drum (2 n) : 13.23-19.11;Idle roll Jane traction (kI) : 9.48 13.64;Main rope pulling speed (m/s) : 0.85 1.22;Tail rope pulling speed (m/s) : 1.18-1.7 wire diameter (m/s) : 12.5.Overall dimensions length X width X height (mm); 6600 * 1500 * 1950
