Hfx500 Deep 500m Portable Mud Pump Hydraulic Water Well Drilling Rig
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- After-sales Service：Online Support,Field Maintenance
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：129kw
- Drill Hole Diameter：400mm
Base Info
- Model NO.：HFX500
- Drill Hole Depth：500m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Driling Depth：500m
- Max. Diameter of Working Floor：∅400mm
- Max. Lifting Capacity：280kn
- Max.Feeding Capacity：120kn
- Max.Lifting Speed：30m,Min
- Max.Feeding Speed：60m,Min
- Max. Pressure：4(Optional)L,Min
- Pressure：8MPa
- Transportation Dimension(L*W*H)：6100mm*2100mm*2690mm
- Weight：12t
- Transport Package：Standard Export Packing or as You Needs
- Specification：CE, ISO
- Trademark：HANFA
- Origin：Zhengzhou City, China
- HS Code：843041
- Production Capacity：30sets,Month
Description
Product Parameters
Type
HFX500
Drilling capability
Driling depth
m
500(∅89)
Max. diameter of working floor
mm
∅400
Feeding system
Max. lifting capacity
KN
280
Max.feeding capacity
KN
120
Max.lifting speed
m/min
30
Max.feeding speed
m/min
60
Stroke
mm
7000
Top drive
Max.torque
N.M
9200/4600
Max.Speed
r/min
95/190
I.D
mm
∅55
Floating distance
mm
/
Max.tilting angle
°
/
Deck engine
Type
YC6J175-T302
Rated power
kw
129
Main winch
Hoisting capacity
/
Tool winch
Hoisting capacity
KN
15
Breakout device
Max.breakout torque
KN
/
vise clamping range
N.M
/
Foam pump
Max. flow
mm
35(Optional)
Max. pressure
L/min
4(Optional)
Mud pipe
I.D
mm
∅55
Max. pressure
Mpa
8
Chassis
Drive mode
Mpa
Crawler chassis
Rated power
kw
/
High speed
km/h
2
Max.climbing gradient
%
39
Working dimension(L*W*H)
mm
5100 x 3200 x 9800
Transportation dimension(L*W*H)
mm
6100 x 2100 x 2690
Weight
t
12

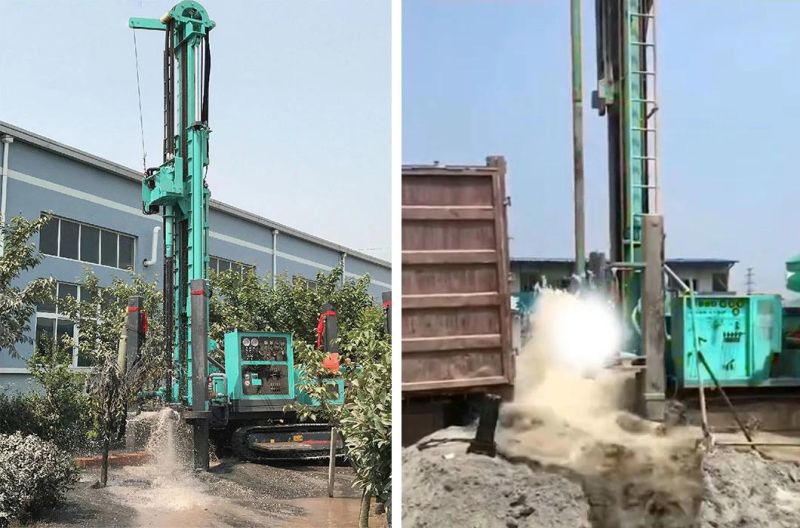

Working Site
