Hot Sales Rotary Drilling Rig Sr150 55m 125kw with Best Price
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Online Support
- Warranty：Online Support
- Certification：CE
- Condition：New
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：30-50m
Base Info
- Model NO.：SR150
- Bit Type：Drag Bit
- Drilling Way：Rotary
- Type：Crawler
- Max.Drilling Depth：55m
- Transport Package：6501*3151*2562mm
- Specification：2760kg
- Trademark：sinomada
- Origin：China
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. SR150 Bit Type Drag Bit Drilling Way Rotary Type Crawler Max.Drilling Depth 55m Transport Package 6501*3151*2562mm Specification 2760kg Trademark sinomada Origin China Production Capacity 50000PCS/YearProduct Description

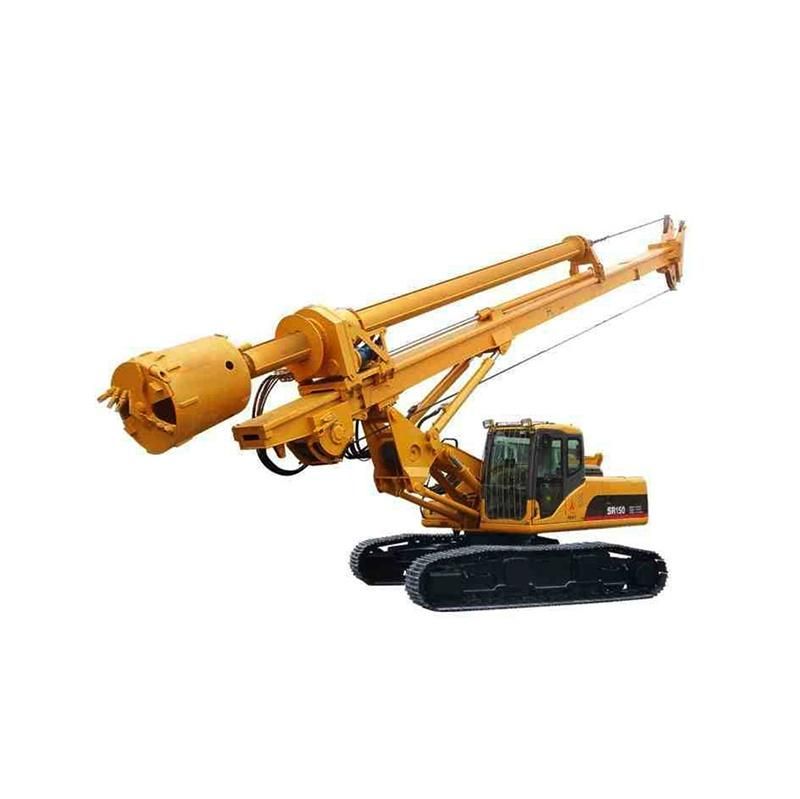

Brand New Rotary Drilling Rig SR150
| SR150C | Unit | Parameters |
| Max.Drilling Dia. | mm | 1500 |
| Max.Drilling Depth | m | 55 |
| largest torque | kN.m | 150 |
| Speed of rotary drive totation | rpm | 7-14 |
| Max.push | kN | 150 |
| Max.pull | kN | 160 |
| Crowd stroke | mm | 4250 |
| Mast sideward | . | (+/-)5 |
| Mast forward | . | 5 |
| Main winch pull(1st layer) | kN | 160 |
| Main winch wire rope dia. | mm | 28 |
| Max.main winch line speed | m/min | 70 |
| Aux.winch pull(1st layer) | kN | 60 |
| Aux.winch wire rope dia. | mm | 14 |
| Engine | CC-6BG1TRP |
| Engine power | KW(HP) 125 (168) @2100rpm |
| Style | 4-storke,water-colled,overhead value type and electronic injection |
| Intake form | Turbocharged, inter cooling |
| Fuel | Diesel oil |
| Emission regulation | EU stage II/E-P-A Tier 2 |
| No of cylinder-bore*stroke | 6-105mm X 125mm |
| Displacement | 6.494 |
| Compression ration | 17.5:1 |
| Rated power | 125KW @ 2100rpm |
| 168HP @ 2100rpm | |
| Max. output torque | 637.9N.m @ 1800rpm |
| 864lbf.ft @ 1800rpm |
