• Model NO.：ZR160A-1
• Drill Hole Depth：>300m
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Max. Drilling Torque：160kn.M
• Drilling Diameter：1500mm
• Base Engine：Mitsubish
• Drilling Depth：42m
• Transport Package：Nude by Roro
• Specification：13055*4100*3262mm
• Trademark：ZOOMLION
• Origin：China
• HS Code：84305090
• Production Capacity：100 Sets,Month

Overview Product Description



Zoomlion's specific-use in-house undercarriage is used to achieve superior stability and transport convenience;
• The turbocharged ATAAC Cumins diesel engine provides strong power to satisfy the requirements of various applications;
• The well-designed hydraulic system with stable performance can achieve low energy loss, making it more efficient and energy saving;
• The imported world-class main pump and main valve in original packaging provide perfect matching and achieve higher work performance and reliability;
• The maximum drilling depth gets to 55 meter, broadening application scope of the equipments.

Product Parameters

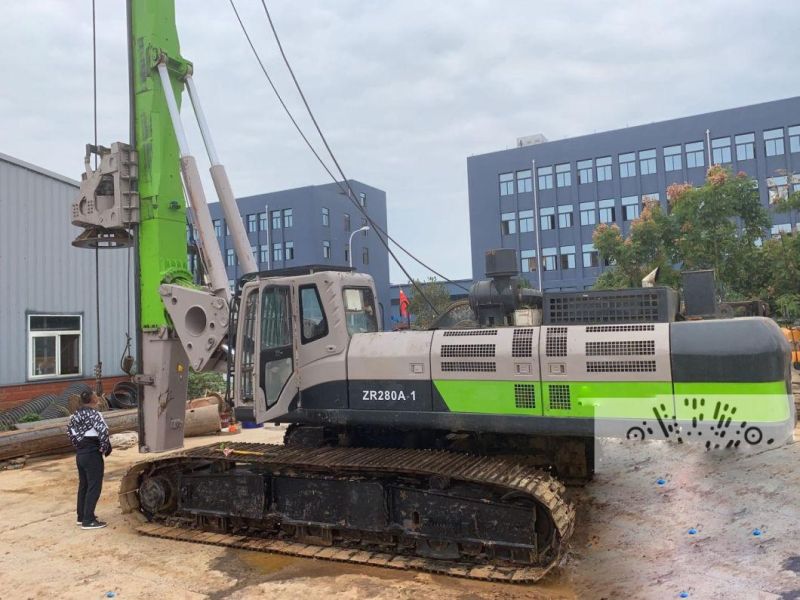

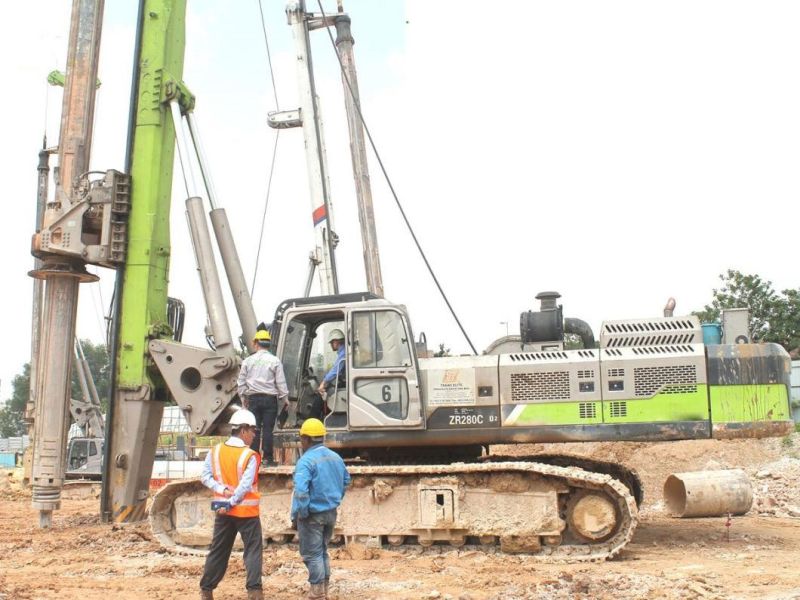

Torque(KN.M)160Drilling Diameter(mm)1500Drilling Depth(m)4255Drilling Speed(r/min)5-31Engine ModelCumins 6C 8.3Rated Power(kw)186Rated Engine Speed(r/min)2000Max.Crowd Force(kN)150Max.Crowd Cylinder Pull(kN)160Line Pull(main winch)(kN)160Line Speed(main winch)(m/min)70Line Pull(aux.winch)(kN)60Line Speed(aux.winch)(m/min)51Operating Mass(t)52Traction Force(kN)365Diesel Tank(L)62Rope diameter(Main winch)(mm)26Rope diameter(auxiliary winch)(mm)18Detailed Photos
