Made in China Crawler Positive Circulation Borehole Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：1 Year
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：100-150m
Base Info
- Model NO.：100m
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Type：Crawler
- Max. Drilling Depth：150m
- Drilling Diameter：1500mm
- Transport Package：FCL
- Specification：3.2*1.6*2.5m
- Trademark：HW
- Origin：China
- HS Code：8430419000
- Production Capacity：500set,Year
Description
Model
HWZ-120
HWZ-135
HWZ-155
HWZ-175
HWZ-200
Transportation Size(m)
3.2*1.6*2.5
3.2*1.6*2.5
3.2*1.6*2.5
3.2*1.6*2.5
3.2*1.6*2.5
Working Size(m)
3.2*1.6*5.5
3.2*1.6*5.5
3.2*1.6*5.5
3.2*1.6*5.5
3.2*1.6*5.5
Engine Power(Hp)
12
12
12
12
15
Working torque(Kn)
20
25
30
35
45
Drilling diameter(Cm)
10-60
10-80
10-90
10-100
10-100
Drilling depth(m)
130
130
130
150
180
Motor power(Kw)
5.5/5.5
7.5/5.5
11/5.5
15/7.5
18.5/7.5
Voltage(V)
380
380
380
380
380
Machine weight(Kg)
2200
2300
2400
2500
3000

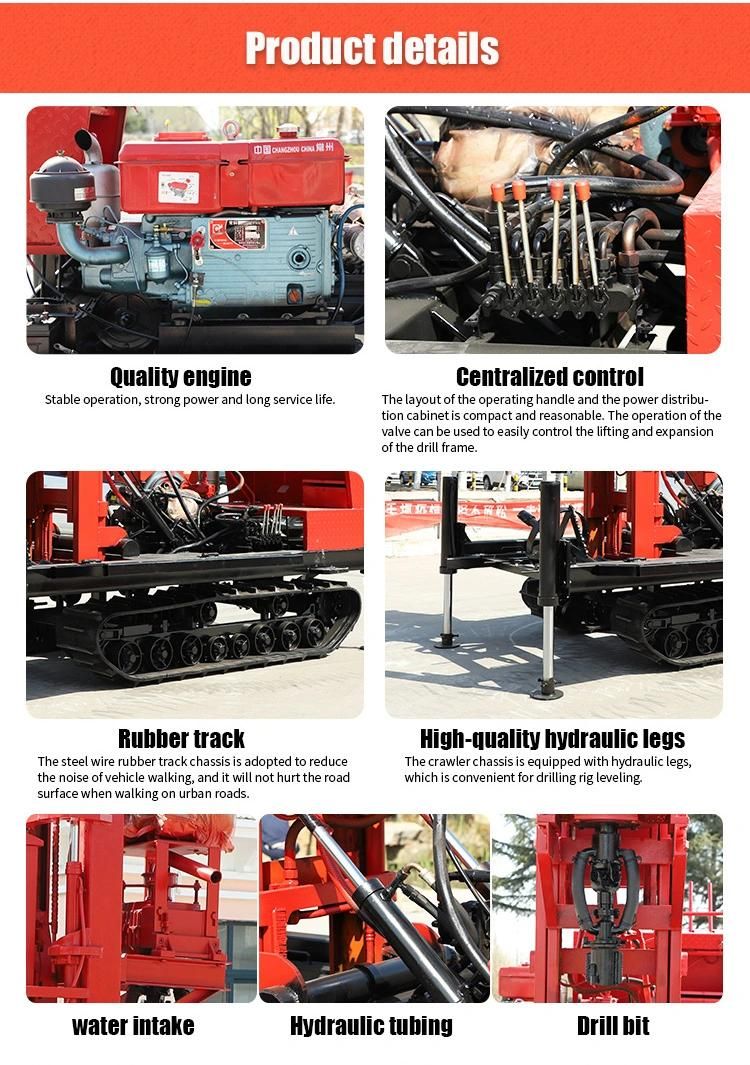

Details Images
Welcome your enquiry: Hengwang brand drilling rig
