Drilling Rig

Product Category

Home > Product > Water Well Drilling Rig

High Quality Water Well Digging Machine with Low Price

Zhengzhou Yongchuang Machinery Equipment Co., Ltd.

Certification：CE, SGS, TUV
Condition：New
Motor：DC Motor
Drill Hole Diameter：250-300mm
Drill Hole Depth：100-150m
Bit Type：Diamond Bit

Base Info

Model NO.：SC-D150
Drilling Way：Rotary
Type：Crawler
Transport Package：Wooden Box
Specification：2100mm*800mm*600mm
Trademark：Yongchuang
Origin：China
Production Capacity：500 Sets,Month

Description

Technical Parameters of Water Well Drilling Rig SC-D150TypeSC-D150Max. Drilling Diameter300mmMax. Drilling Depth100mTotal Power6.2kwEngine Power2.5kwLifting Power1.5kwCapacity of hoist1.5tPump 2.2kw, 220v (flow head 46m)Height of tower2.5mRotating speed200r/minMeasurement2100mm*800mm*600mmTotal Weight700kgsDrilling Rod Length1.5m/pieceDiameter of Drilling Rod42mm

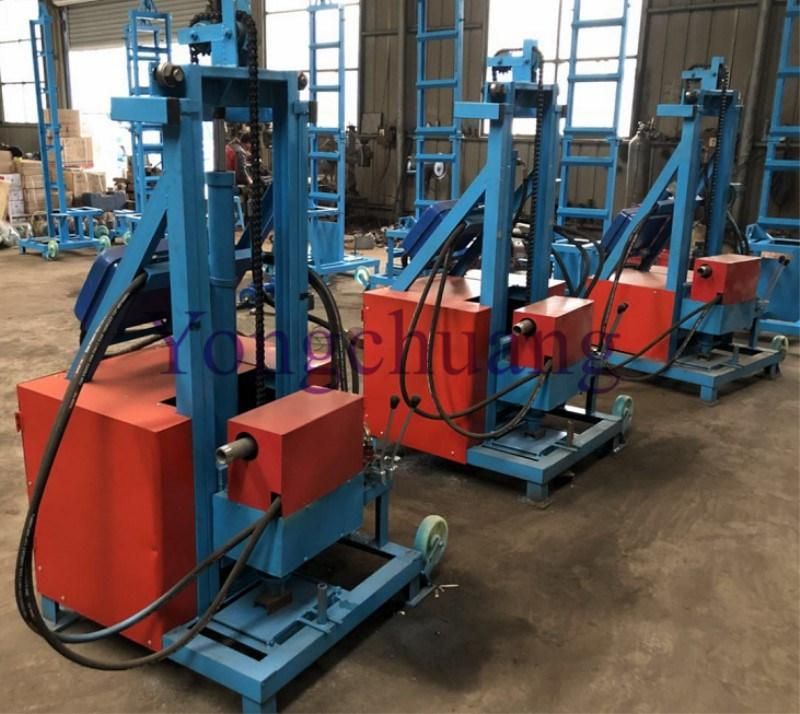

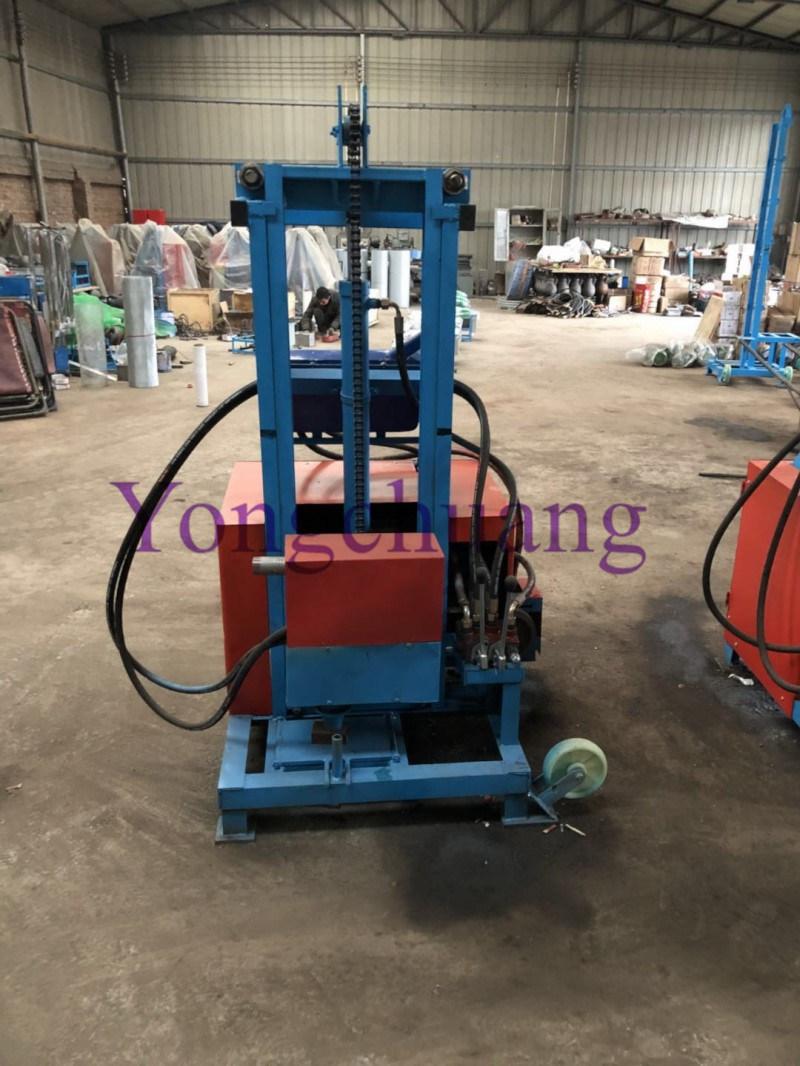

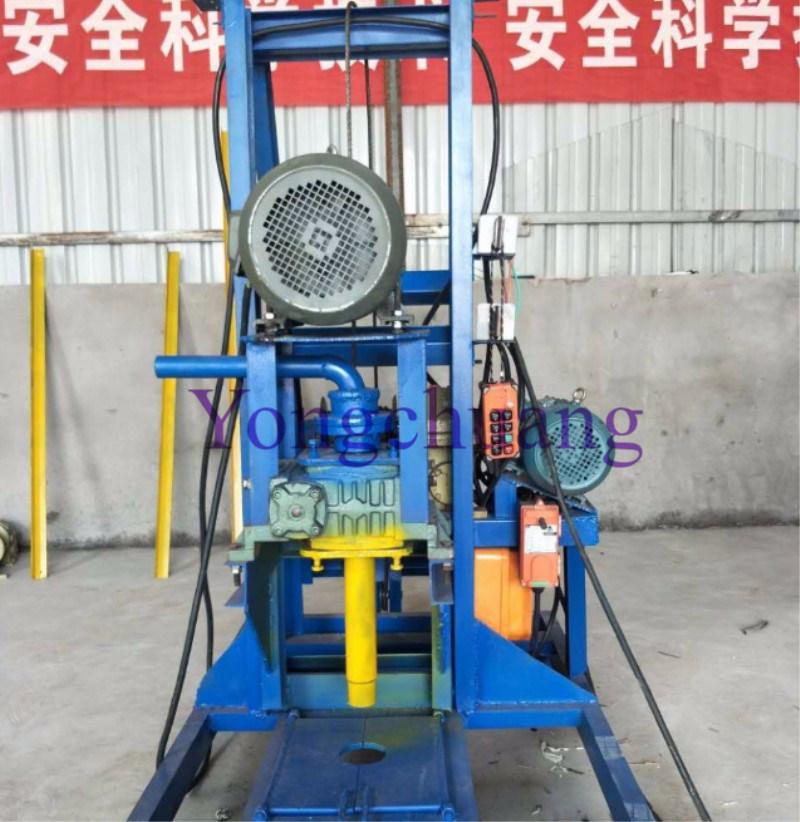

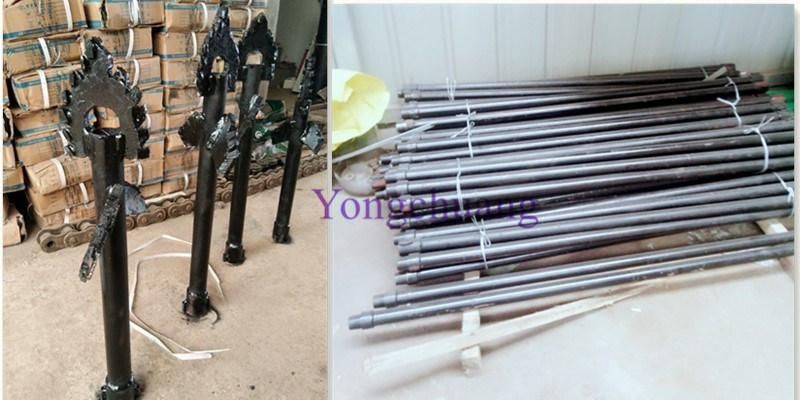

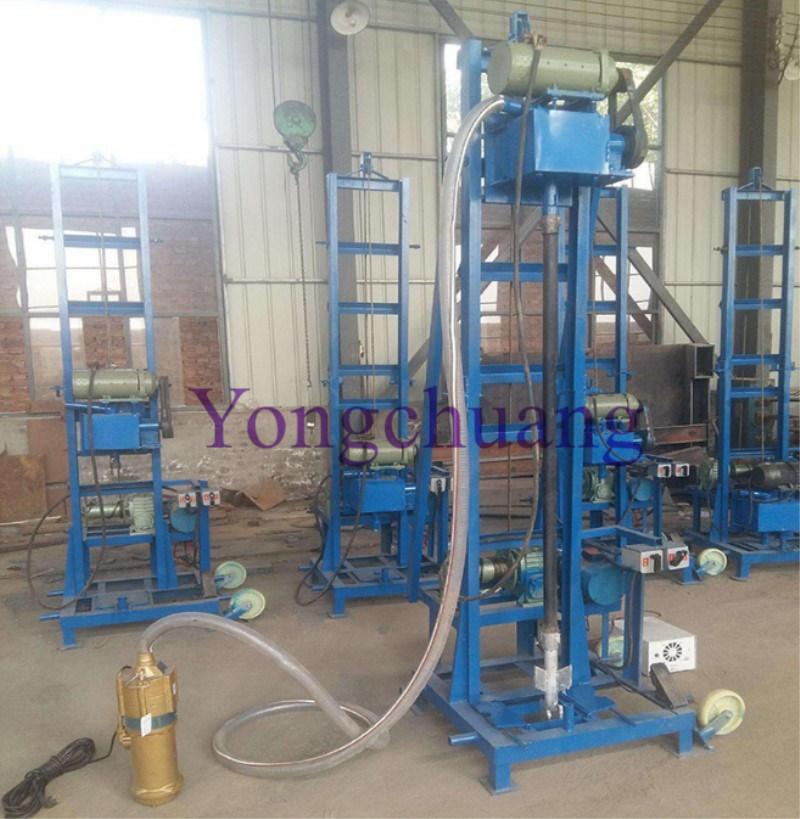

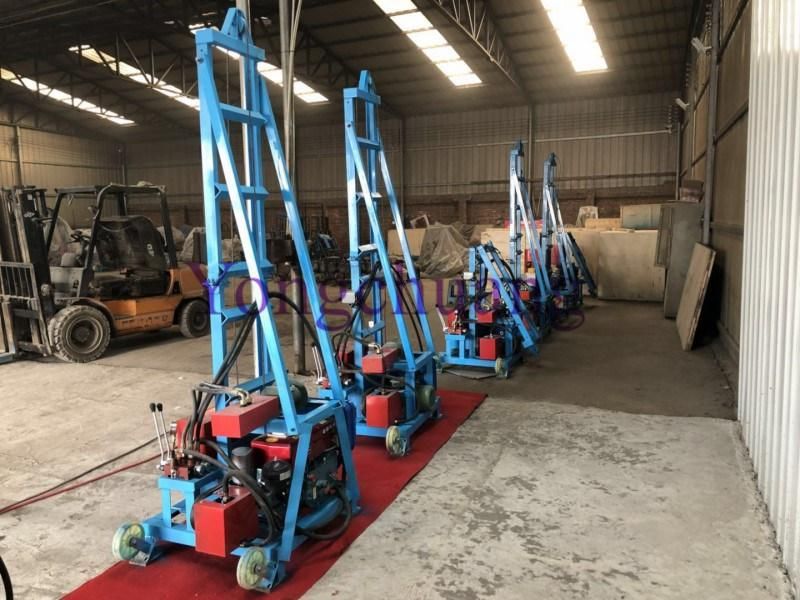

Machine Pictures:
