• Drilling Way：Compound
• Type：Crawler

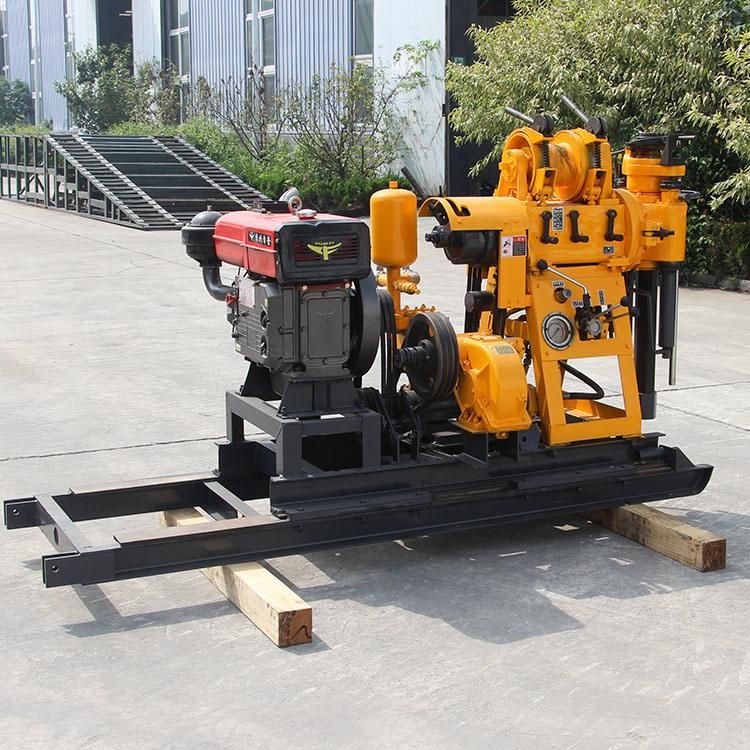

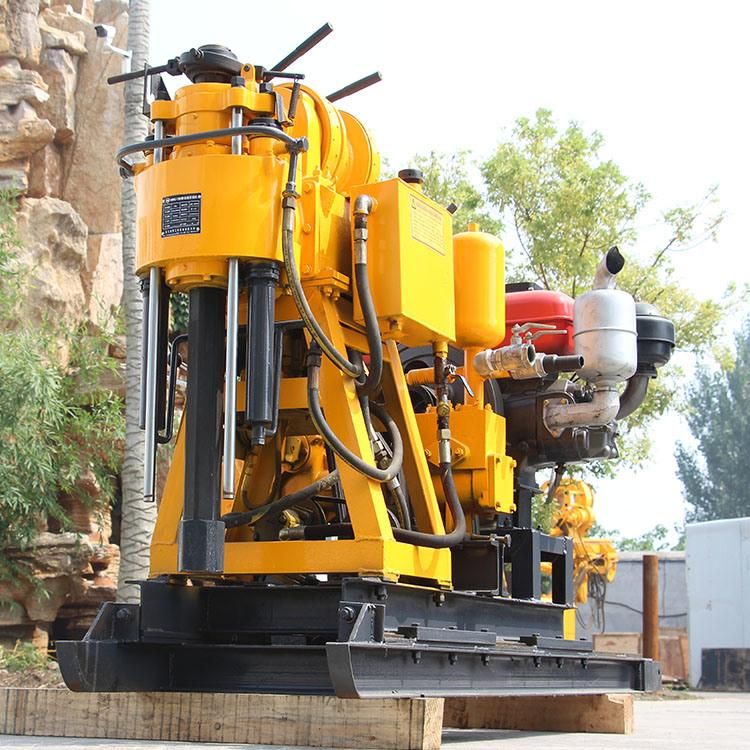

• Product Name：160m Depth Small Water Well Drilling Rig
• Drilling Depth：160m
• Maximum Borehole Caliber：300mm
• Minimum Borehole Caliber：75mm
• Diameter of Drill Pipe：42,50,60mm
• Drilling Angle：90-75
• Weight(Not Include Power)：1600kg
• Unity Machine Dimension：2750*950*1770mm
• Spindle Rotating Speed：64,128,287,557r,Min
• Spindle Stroke：450mm
• Max. Single Line Lifting Capacity：2400kgs
• Reel Lifting Speed：1.64m,S
• Steel Wire Rope Diameter：13mm
• Steel Wire Rope Capacity：35m
• Hug Floodgate Diameter：245mm
• Origin：Shandong
• Production Capacity：1000PCS ,Month

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsWater well drilling rig Diamond core drilling machine with mud pump Pictrures:






Our company for Water well drilling rig Diamond core drilling machine with mud pump
