Yq70 Yq80 Yq100 Yq130 DTH Drilling Rig Pneumatic Blasthole Drilling Rig
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：CE, RoHS
- Condition：New
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：30-50m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：YQ70
- Type：Four-Wheel Trailer
- Transport Package：Wooden Case
- Specification：1740× 260× 420mm
- Trademark：Bafang
- Origin：Jining, China
- Production Capacity：50set,Month
Description
Model
YQ70
YQ100
YQ120
Drilling diameter
φ60-80mm
φ83-100mm
φ85~130mm
·
Suitable for rock (platts hardness)
≥20
≥20
≥20
Drilling depth
≥15m
≥30
30-40m
Rotary speed(r/min)
110r/min
90r/min
90r/min
Air pressure
0.5-0.7Mpa
0.5-0.7Mpa
0.5~1.0Mpa
Air Consumption
≥3.5m3/min
6M3/min
10m3/min
Cylinder diameter
90mm
90mm
90mm
stroke
1070mm
1070mm
1200mm
propelling force
3600N
6000N
9600N
Power
3kW
3kW
3kW
Voltage
380V
380V
380V
Rated speed
1410r/min
1410r/min
1410r/min
Drill pipe diameter
φ42mm
φ42mm
φ42mm
Drill pipe length
1025mm
1025mm
1025mm
Dimension
1740×260×420mm
1800*650*400mm
1800*700*450mm
Weight
220kg
250kg
300kg

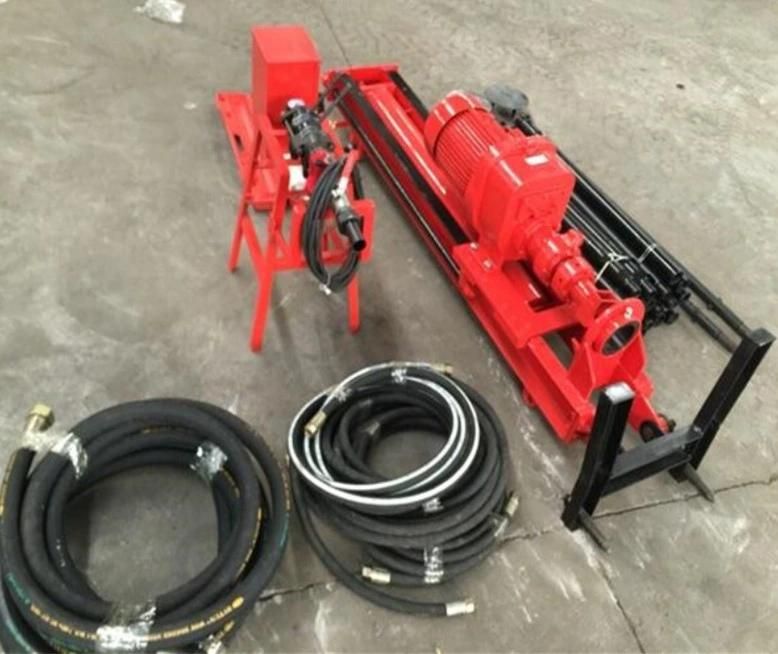

Detailed Images
