• Model NO.：YT26
• Drill Hole Diameter：<100mm
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Compound
• Impact Energy：≥30 J
• Working Water Pressure：200~300 PA
• Rock Drill Hole Diameter：34~42 mm
• Rock Drill Hole Depth：5m
• N.W：26kg
• Transport Package：Wooden Box
• Trademark：HIGHTOP
• Origin：China
• HS Code：8430503900
• Production Capacity：50000 Pieces Each Year

Basic Info.

Model NO. YT26 Drill Hole Diameter <100mm Drill Hole Depth <100m Bit Type Diamond Bit Drilling Way Compound Impact Energy ≥30 J Working Water Pressure 200~300 PA Rock Drill Hole Diameter 34~42 mm Rock Drill Hole Depth 5m N.W 26kg Transport Package Wooden Box Trademark HIGHTOP Origin China HS Code 8430503900 Production Capacity 50000 Pieces Each Year

Product Description

Features

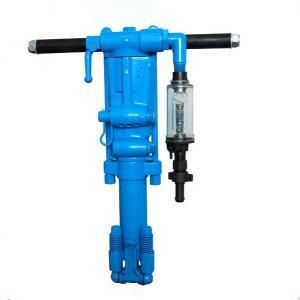

YT26 pneumatic rock drill is an important tool for rock drilling operation in mines, railway, communication and water conservancy projects. Suitable for making horizontal and inclined blast holes in medium-hard and hard rocks. Computer controlled drilling machine from the factory run test bed, grasp the dynamic characteristics of each product to avoid the occurrence of human error to ensure that the manufactured products of excellent quality and superior performance.



Main Characteristics:

1. The use of modern design means, performance of each product is optimized.

2. For all operating agencies were arranged according to ergonomic principles, to ensure that the products of high-performance, high efficiency and convenience of operation, security.

3. Quality materials and scientific and forging, all reflect the "quality" content, to ensure that the products of high strength, high wear resistance and impact resistance.



Specification

Model: YT26

N.W: 26 Kg

Length: 650 mm

Cylinder Diameter: 65 mm

Piston Stroke: 70 mm

Working Pressure: 0.4 Mpa

Impact Energy:  ≥30 J

Impact Frequency:  ≥23 Hz

Air Consumption:  ≤47 L/S

Working Water Pressure: 0.2~0.3Mpa

Air Pipe Inner Diameter: 19 mm

Water Pipe Inner Diameter: 13 mm

Rock Drill Hole Diameter: 34~42 mm

Rock Drill Hole Depth: 5m

Shank Size: 22x108 mm

 YT26 portalbe handheld rock drill/air powered pick YT26 portalbe handheld rock drill/air powered pick

Our service

1. Response within 24 hours , action within 48 hours by email or calls

2. Warranty for 1 year, spare parts accessories optional

3. Provide perfect spare parts and accessories service and support



FAQ

1. OEM is available?

Yes, we can put your logo on the machine if needed.

2. May I know the Lead time?

The lead time of our machine is 5 to 10 workdays.

3. Can you provide the whole rock drill/jack hammer equipments?

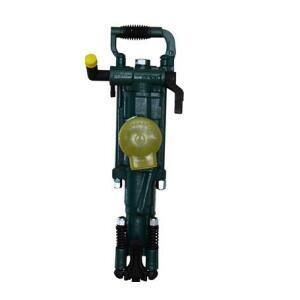

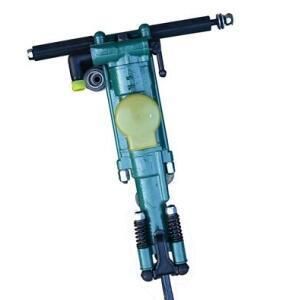

Yes. we offer hand held rock drill, pneumatic air leg rock drill, YT26 portalbe handheld rock drill/air powered pick.
