Drilling Rig

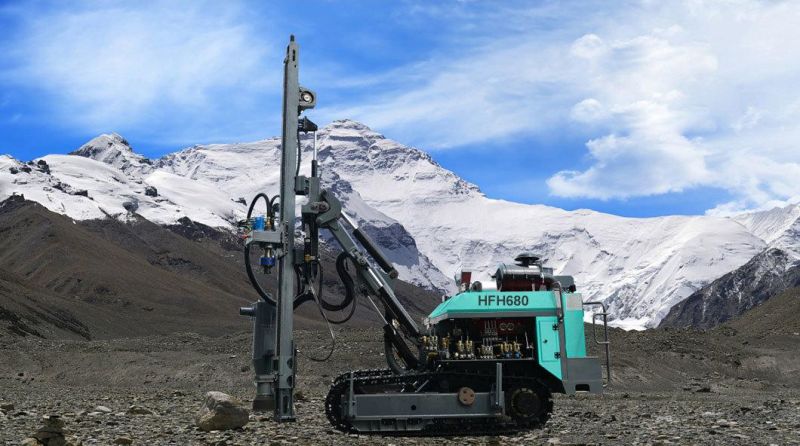

Hfh680 Superior Economy Crawler Separated DTH Drill Machine Mine Drilling Rig

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • After-sales Service:Online Support,Field Maintenance
  • Warranty:1 Year
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Motor:70-90kw
  • Drill Hole Diameter:90-165mm

Base Info

  • Model NO.:HFH680
  • Drill Hole Depth:30m
  • Bit Type:DTH Bit
  • Drilling Way:Impactor
  • Working Pressure:1-2.4 MPa
  • Rotation Torque:3500n.M
  • Rotation Speed:0-1210 R,Min
  • Power:70-90kw
  • Climb Ability:Left45,Right45
  • Weight:6500kg
  • Air Consumption:14~35m3,Min
  • Walking Speed:2-3km,H
  • Maximum Lift Capacity:35kn
  • Once Promotion:4150mm
  • Transport Package:Machine in Nude Packing, Spare Parts in Wooden Box
  • Specification:6100*2250*2500mm
  • Trademark:HF
  • Origin:Zhengzhou City, China
  • HS Code:843041
  • Production Capacity:30sets,Month
