• Model NO.：BZC300CJHW
• Drilling Way：Compound
• Type：Crawler
• Derrick Height：11500mm
• Borehole Diameter：500mm
• Rotary Table Torque：7.1kn.M
• Single Rope Tension of Main Winch：40kn
• Transport Package：Nude
• Specification：13300*3490*3450mm
• Trademark：Binzuan
• Origin：Binzhou
• HS Code：8454521212
• Production Capacity：10units,Month

Basic Info.

Model NO. BZC300CJHW Drilling Way Compound Type Crawler Derrick Height 11500mm Borehole Diameter 500mm Rotary Table Torque 7.1kn.M Single Rope Tension of Main Winch 40kn Transport Package Nude Specification 13300*3490*3450mm Trademark Binzuan Origin Binzhou HS Code 8454521212 Production Capacity 10units/Month

Product Description

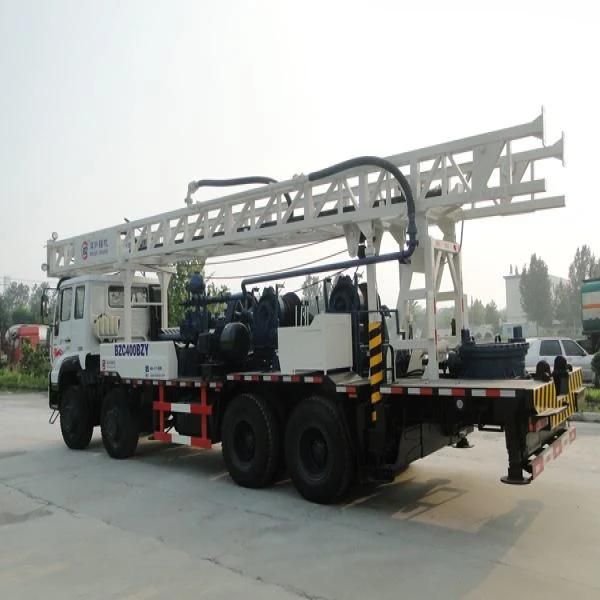

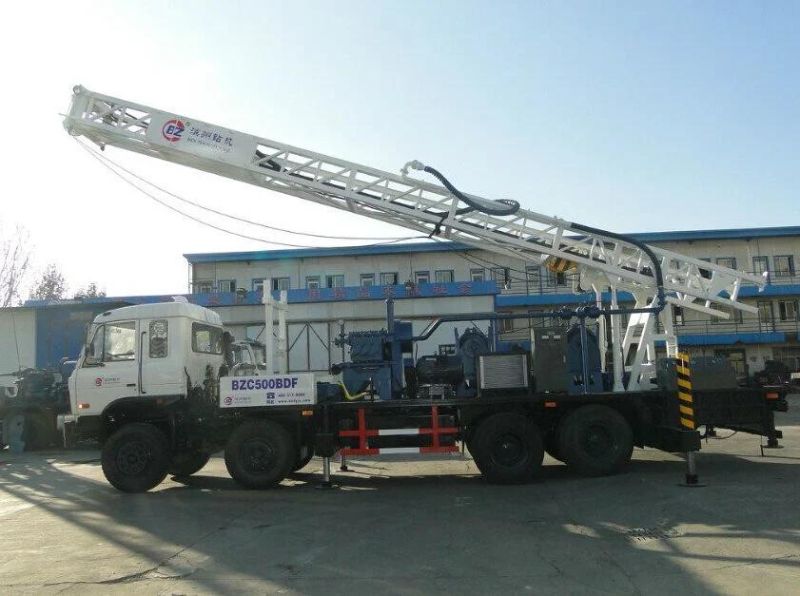

Truck mounted water well drilling rig for sale
1. Main uses



Bzc300chw drilling rig is a 300 meter truck mounted water well drilling rig. The drilling rig is equipped with proper drilling tools and can be used in Quaternary strata such as clay layer, sandy soil layer, weathered rock and bedrock. The drilling rig is reasonable in design, complete in matching and superior in performance. It can realize various drilling processes (such as mud circulation, air foam drilling, pneumatic DTH hammer drilling, gas lift reverse circulation drilling) to adapt to different strata.



2. Main features



Bzc300chw drilling rig is equipped with heavy truck HOWO 6x6 special vehicle chassis, and the power station, double winch unit, mud pump, rotary table and drilling tower are installed on the chassis, which is convenient for transportation and good mobility.



1) The drilling rig is equipped with four hydraulic outriggers, which can act simultaneously or independently, which is convenient for rapid leveling of the drilling rig. Moreover, the two rear legs can be extended horizontally, which improves the stability of the whole rig.



2) The rotary table is of lever type, with spiral bevel gear transmission inside, which has stable transmission and large torque transmission.



3) The rig is equipped with a large displacement reciprocating plug pump produced by well-known domestic manufacturers, with large flow rate and high pressure, which can ensure the smooth progress of drilling construction.



4) The main and auxiliary hoists have large lifting force, which can meet the needs of normal drilling, and have the ability to deal with general well accidents.



5) This drilling rig is equipped with an auxiliary rod unloading oil cylinder, which is used to push the ratchet of the rotary table to rotate in reverse direction. The first thread of the drill pipe joint is removed, and then the rotary table is used to reverse the rod unloading. This greatly reduces the labor intensity and improves the service life of the machine parts.
