Zy-Manual Horizontal Coring Drill
Fujian Ningde Aqt Imp. & Exp. Co. Ltd- After-sales Service：Good-Quality Technical Services
- Warranty：1 Year
- Certification：CE, ISO
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：75mm
Base Info
- Model NO.：ZY-75HD-M
- Drill Hole Depth：0-30m
- Bit Type：Core Drill Bit
- Drilling Way：Impactor
- Transport Package：Plywood
- Specification：700kg
- Trademark：Stonewin
- Origin：Xiapu, Fujian, China
- HS Code：8430412900
- Production Capacity：1000sets Per Year
Description

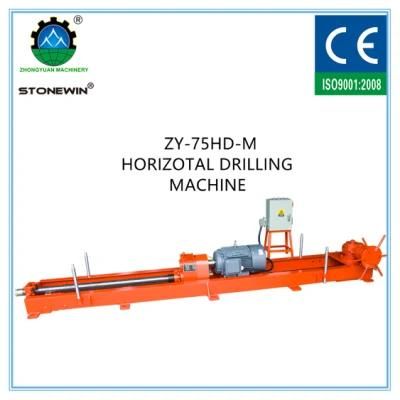

ZY-75HD-M MANUAL
HORIZONTAL
CORING DRILLMODEL UNIT ZY-75HD-M DIAMETER OF DRILL HOLE (MM) Φ75 MAX.DEPTH OF DRILL HOLE (M) 30 SPEED OF DRILLING (M/H) 3-5 MIN.WATER-SUPPLY PRESSURE (Mpa) 0.1 SINGLE FEEDING DISTANCE (M) 1.5 POWER FEEDING DEVICE SPEED REDUCER DRILLING DIRECTION HORIZONTAL NET WEIGHT (KG) 700

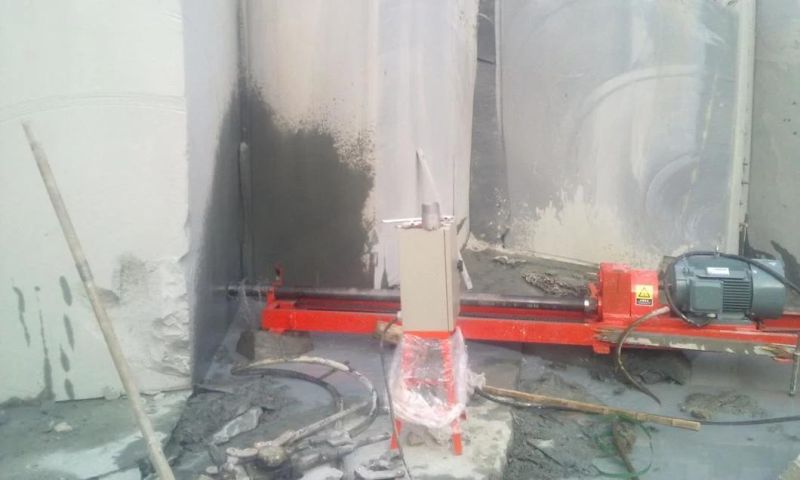

The machine is used for drilling a horizontal hole for passing through the diamond wire saw during stone quarrying. It has the following features: high drilling efficiency, long life, easy hole-joining, high precision, etc.
The walking motor and the inverter are used for automatic power feeding devices. The real-time main motor current and the walking motor rotation speed are displayed on the control platform. The power control cable between the main machine and control platform is connected by the aviation plugs. The operating and installing of the machine are convenient. The control mode adopts an electrical automatic control principle to maximize the drilling speed and achieve the energy-saving and emission reduction effect. Meanwhile, it reduces the intensity of labor.
HORIZONTAL
CORING DRILL
The machine is used for drilling a horizontal hole for passing through the diamond wire saw during stone quarrying. It has the following features: high drilling efficiency, long life, easy hole-joining, high precision, etc.
The walking motor and the inverter are used for automatic power feeding devices. The real-time main motor current and the walking motor rotation speed are displayed on the control platform. The power control cable between the main machine and control platform is connected by the aviation plugs. The operating and installing of the machine are convenient. The control mode adopts an electrical automatic control principle to maximize the drilling speed and achieve the energy-saving and emission reduction effect. Meanwhile, it reduces the intensity of labor.
