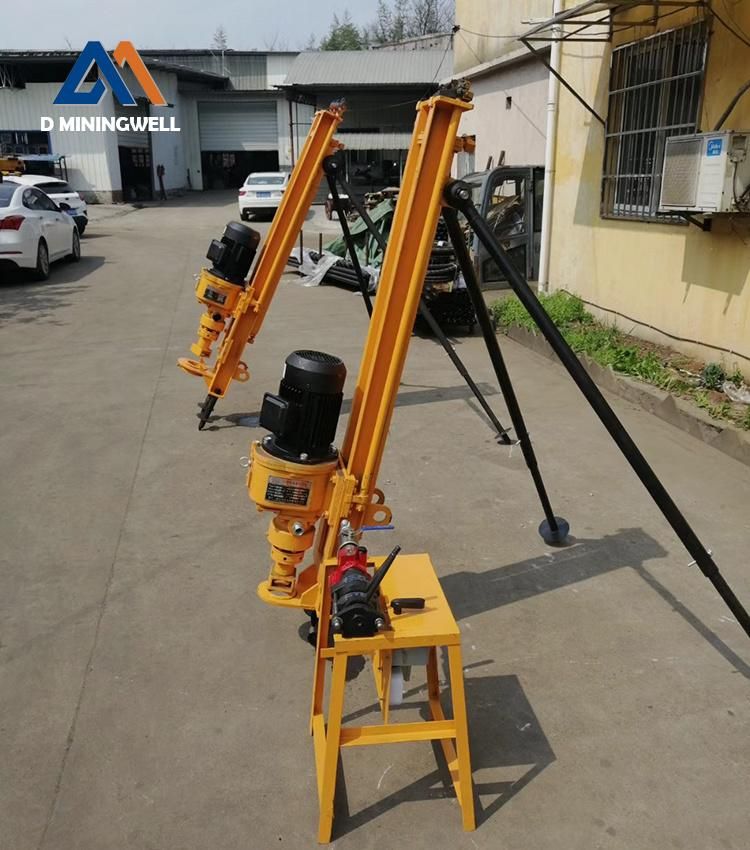

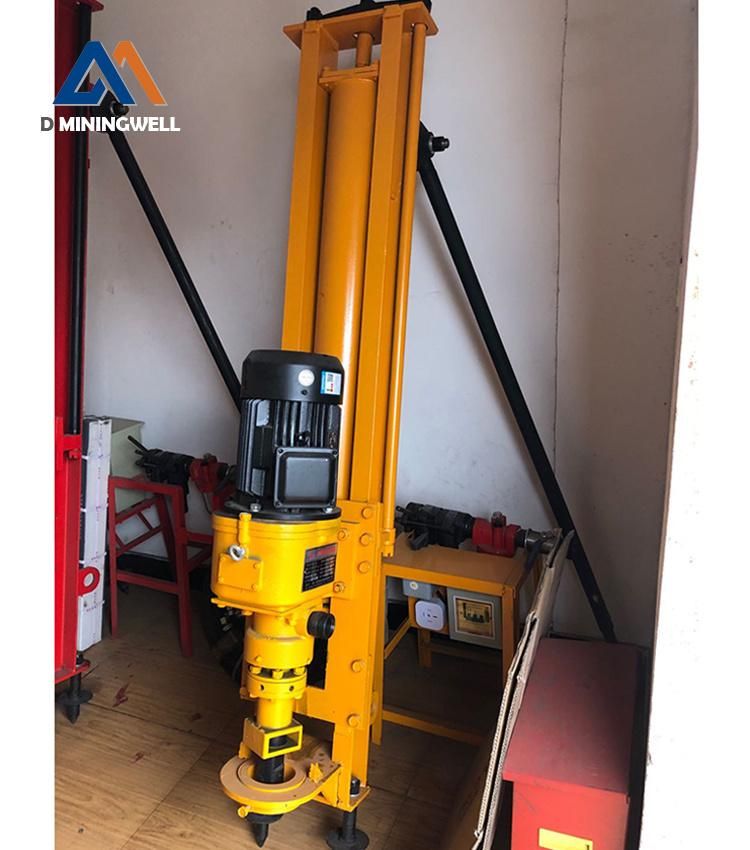

Dminingwell Kqd120 High Quality Small DTH Rock Drilling Rig for Borehole

Zhejiang Miningwell Supply Chain Management Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：KQD120
  • Drilling Way：Impactor
  • Specification：550kg
  • Trademark：Miningwell
  • Origin：Zhejiang China
  • Production Capacity：3000PCS,Month

Description

ModelQD70QD100QD120Drilling Diameter (mm)90-12090-13090-130Apply Rock≥20≥20≥20Drilling Depth (m)15≥25≥30-40Drilling Rotate Speed (r/min)110110110Working Air Pressure (Mpa)0.5-0.70.5-1.00.5-1.0Air Consumption (m3/min)4610Cylinder Diameter (mm)90140140Propulsion Stroke (mm)107010701070Max Propelled Force (N)800096009600Electric Motor Power (KW)3444-5.5Electric Motor Voltage (V)380V three-phase 50HzRated Speed (r/min)144014401440Drilling Rod OD (mm)4250-6060Drilling Rod Length (mm)102510251025Dimension (mm)1740*260*4202230*380*5502230*380*550Weight (kg)280470460320450480
