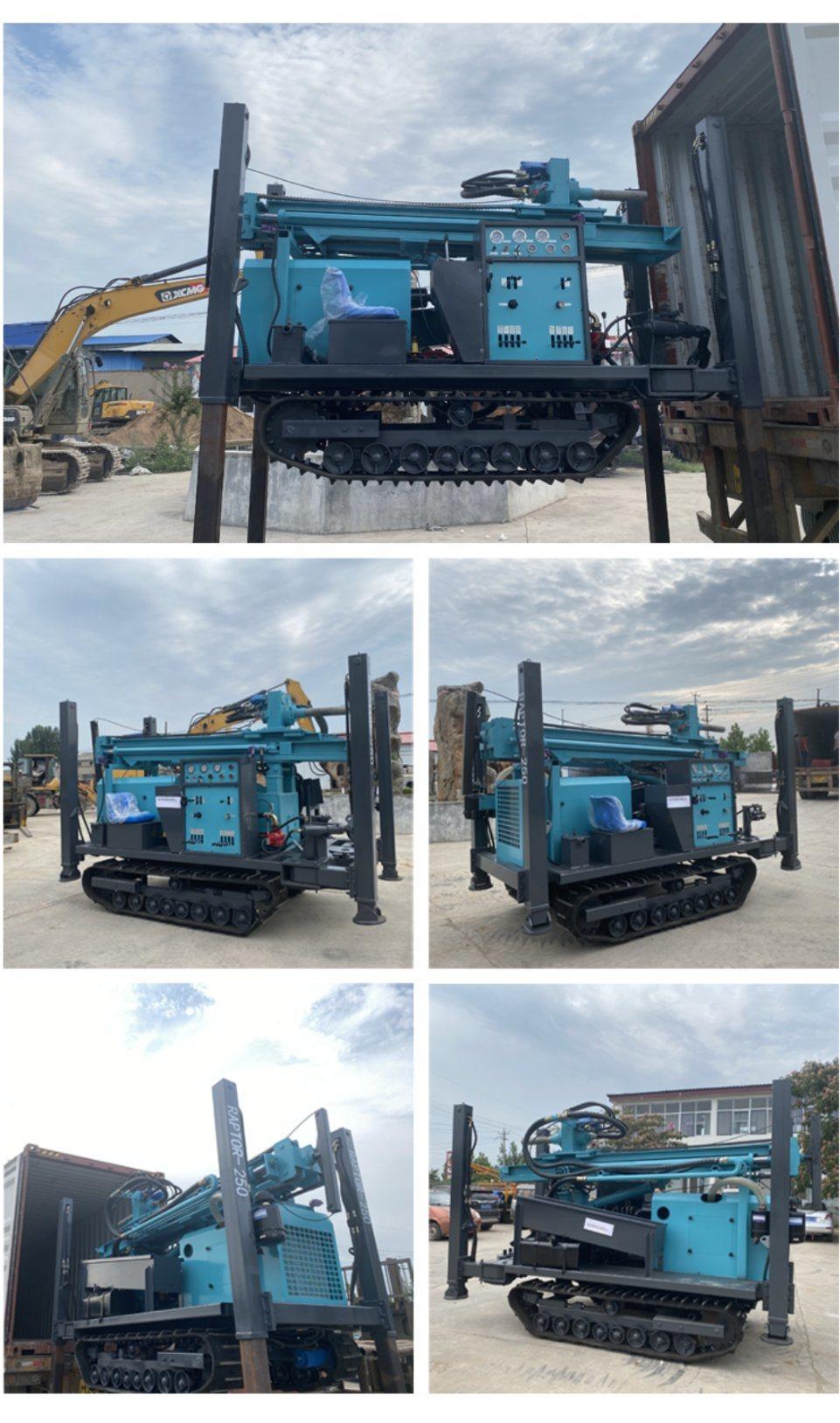

Manufacture Fy280 Crawler Type Water Well Drilling Rig 280m Rotary Water Well Drill Rig
Zhejiang Miningwell Supply Chain Management Co., Ltd.- After-sales Service：Video Technical Support, Online Support, Spare PAR
- Warranty：1 Year
- Certification：ISO9001,CE
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-305mm
Base Info
- Drill Hole Depth：280m
- Bit Type：Diamond Bit, Cone Bit, Drag Bit
- Drilling Way：Impactor
- Type：Crawler
- Dimension(L*W*H)：5900*1850*2360mm
- Air Capacity：17-31m3,Min
- Swing Speed：40-70rpm
- Drilling Pipe Length：1. 5 M,2.0 M. 3.0m
- Key Selling Points：Low Maintenance Cost
- Equipped Capacity：75kw
- Diameter of Drill Rod：76mm,89mm.
- Transport Package：Carton
- Specification：5900*1850*2360mm
- Trademark：Miningwell
- Origin：Zhejiang, China
- Production Capacity：45PCS Per Month
Description
Technical Parameters of FY280 Crawler type water well drilling rig
type
FY280
The weight
7.6T
Dimension
5900*1850*2360mm
The hole diameter
140-305mm
Drilling depth
280m
One-time advance length
6.6m
Walking speed
2.5KM/H
Climbing angles
30
Power
75KW
Using air pressure
1.7-3.0MPA
Air consumption
17-31m3/min
Drill pipe length
1.5m 2.0m 3.0m
Drill pipe diameter
76mm,89mm,
Rig lifting force
17T
Swing speed
40-70rpm
Swing torque
4500-6000N.m
