• Model NO.：HWED50
• Drill Hole Depth：30-50m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Transport Package：FCL
• Specification：2600*950*1700mm
• Trademark：HW
• Origin：China
• HS Code：8430419000
• Production Capacity：50sets,Month

Model

HWED50

Core depth(m)

0-50

Drilling form

Direct push

Casing diameter (mm)

52/63/76/95

Sampling diameter (mm)

38/52/65/70

DTH depth (m)

0-200

Drilling diameter (mm)

38-180

Effective stroke (mm)

1650

Engine(kw r/min)

Joint venture brand 40KW/3000

Hydraulic pump

Imported plunger pump

Multi-way valve

imported

Whole machine oil pipe

Horse Brand (Germany)

Maximum lifting force(t)

10

Drilling force(t)

0-6.5

Direct frequency(bmp)

600-2000

Walking motor

import

Transport size(mm)

2600*950*1700

Maximum working size(mm)

2550*950*4220

Total Weight(T)

1.8

Walking speed(kmZh)

0-5 (high and low speed)

Maximum climbing angle(°)

35

Remote control

Optional function

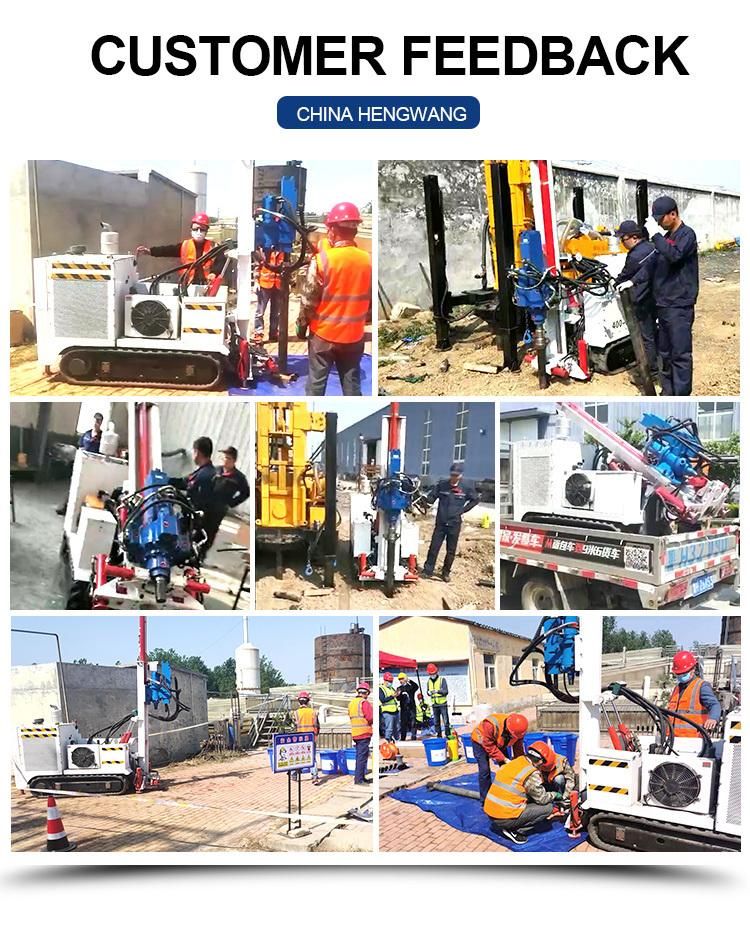

Customer feedback:
