300m Deep DTH Borehole Water Well Drill Rig Deep Hole Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：300
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Dimensions(L*W*H)：6147X3633X6637mm
  • Machine Weight：6850kg
  • Drill Depth：260m
  • Drill Diameter：100-300mm
  • Transport Package：Container
  • Specification：8 t
  • Trademark：HW
  • Origin：China
  • Production Capacity：60 Set,Sets Per Month

Description

Model

HQZ-260L

Total Weight(T)

6.4

Dimensions(mm)

4100*1900*2600

Drilling Diameter(mm)

140-300

Drilling Depth(m)

260

One-time Advance Length of the Drill(mm)

3000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

250

Working Air pressure(Mpa)

1.7-3.0

Air Consumption(m³/min)

17-35

Main Power(kw)

73/Yuchai

Rotation(rpm)

40-70

Rotary Torque(Nm)

7000-9000


 Detail Photos

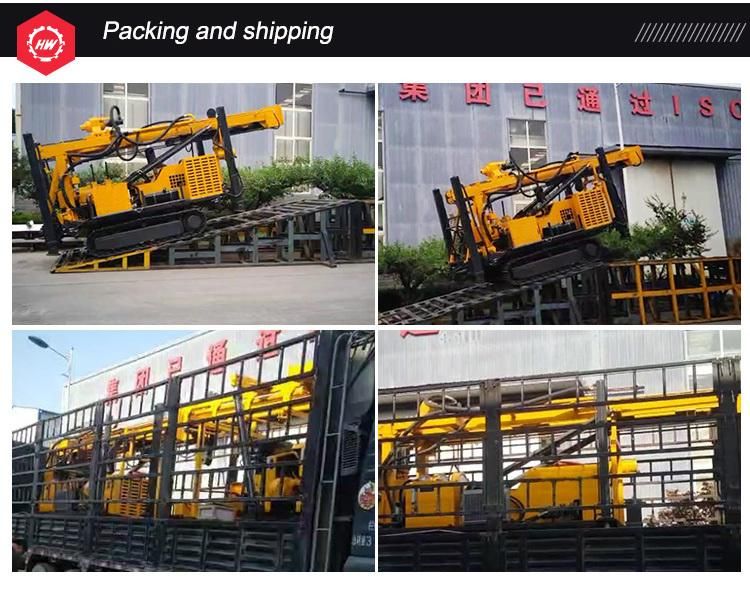

300m Deep DTH Borehole Water Well Drill Rig Deep Hole Drilling Machine300m Deep DTH Borehole Water Well Drill Rig Deep Hole Drilling Machine300m Deep DTH Borehole Water Well Drill Rig Deep Hole Drilling MachineProduct ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;
