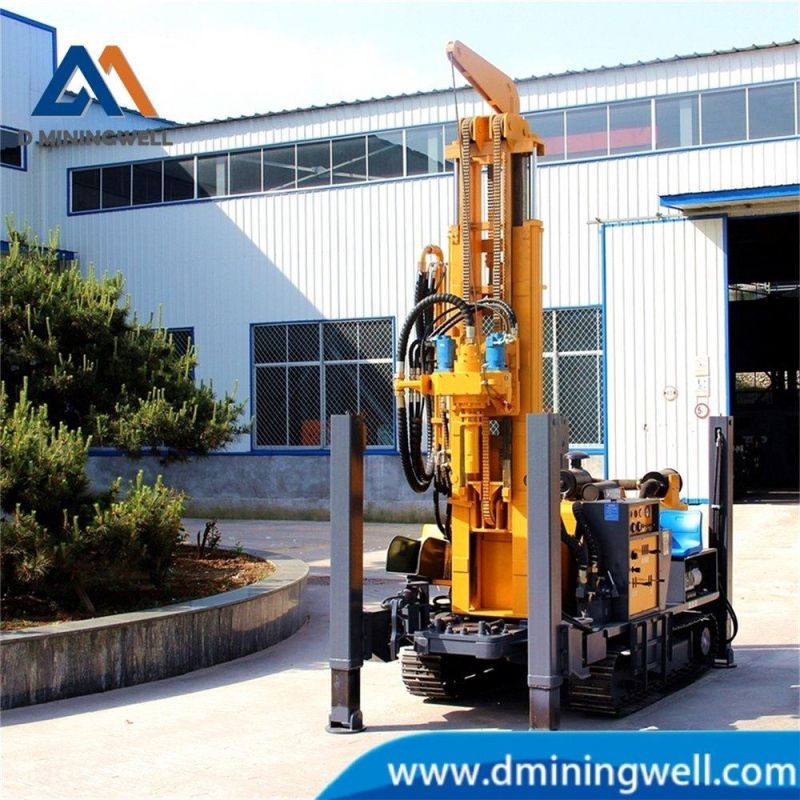

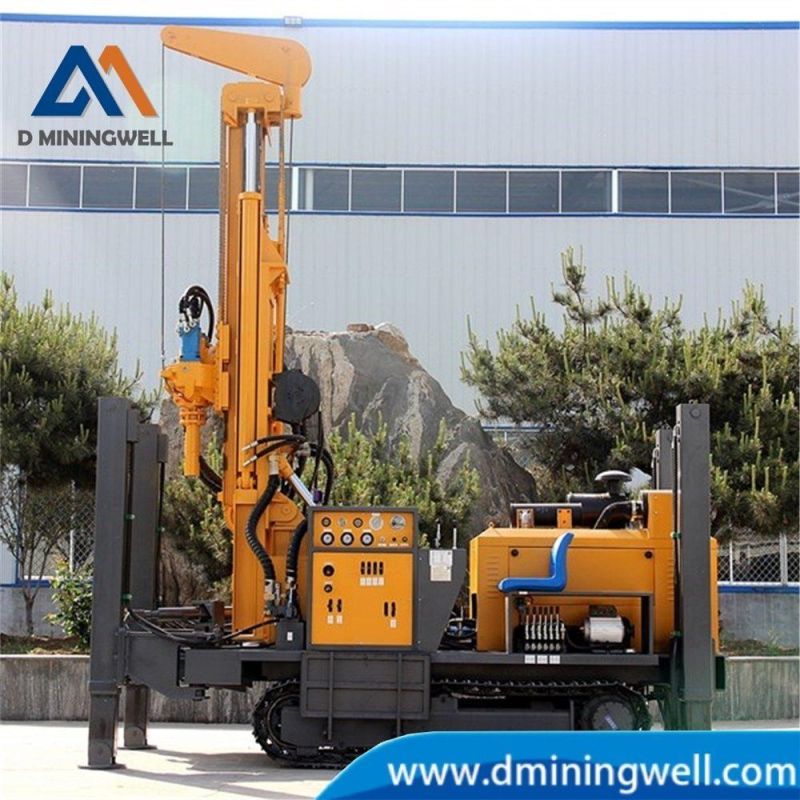

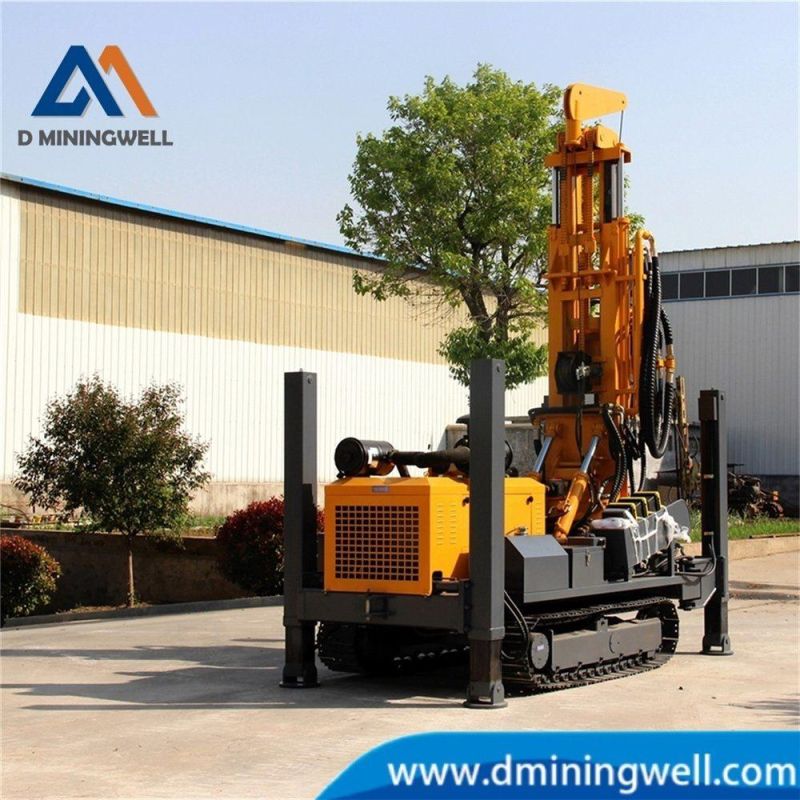

MW300 Steel Crawler Rubber Crawler Drilling Equipment 300m Deep Well Drilling Rig on Promotion
Zhejiang Miningwell Supply Chain Management Co., Ltd.- After-sales Service：Video Technical Support, Free Spare Parts, Online
- Warranty：1 Year
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：150-200mm
Base Info
- Model NO.：MW300
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Air Capacity：17-35 M3,Min
- Power：85kw
- Drilling Depth：300m
- Drill Rod Diameter：76mm,89mm.102mm
- Weight：9t
- Power Type：Diesel
- Key Selling Points：Competitive Price
- Core Components：Motor, Pump, Other, Gear, Gearbox
- Transport Package：Carton
- Specification：15500*5800*5500mm
- Trademark：D Mining Well
- Origin：Zhejiang, China
- Production Capacity：50PCS Per Month
Description
Technical Parameters of MW300 Crawler type water well drilling rig
type
MW300
The weight
9T
Dimension
4100*1950*2600mm
The hole diameter
140-325mm
Drilling depth
300m
One-time advance length
6.6m
Walking speed
2.5KM/H
Climbing angles
30
Power
85KW
Using air pressure
1.7-3.3MPA
Air consumption
17-35
Drill pipe length
1.5m 2.0m 3.0m 6.0m
Drill pipe diameter
89mm,102mm,
Rig lifting force
20T
Swing speed
55-115rpm
Swing torque
6200-85000N.m
