• Model NO.：SLY300
• Drill Hole Depth：350m
• Bit Type：DTH Drill Bit, Roller Bit
• Drilling Way：Rotary
• Type：Truck Mounted
• Work Pressure：10.5-35 Bar
• Air Consumption：16-40 M3,Min
• Max Lifting Force：12 Ton
• Weight：12 Ton
• Transport Package：Standard Shipping Packing
• Specification：8900MM*2100MM*3300MM
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. SLY300 Drill Hole Depth 350m Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Truck Mounted Work Pressure 10.5-35 Bar Air Consumption 16-40 M3/Min Max Lifting Force 12 Ton Weight 12 Ton Transport Package Standard Shipping Packing Specification 8900MM*2100MM*3300MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Product IntroductionTruck Mounted Water Well Drilling Rigs 4*4 Drive      T-SLY300 truck mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular  in drilling hole for geothermal heating. It can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.Technical Parameters

Bore Diameter(mm)	115-400
Bore Depth(m)	220-350
Work  Pressure (Mpa)	1.05-3.5
Air Consumption( m³/min)	16-40
Drill rod length(m)	3
Drill rod diameter(mm)	76/89
Dimension(mm)	8900*2100*3300
Total Weight( T)	12
Max Lifting force(T)	12
Rotation Torque( Nm)	3900
Rotation Speed(r/min)	0-100
Truck chassis	DONGFENG
Drive form	4*2

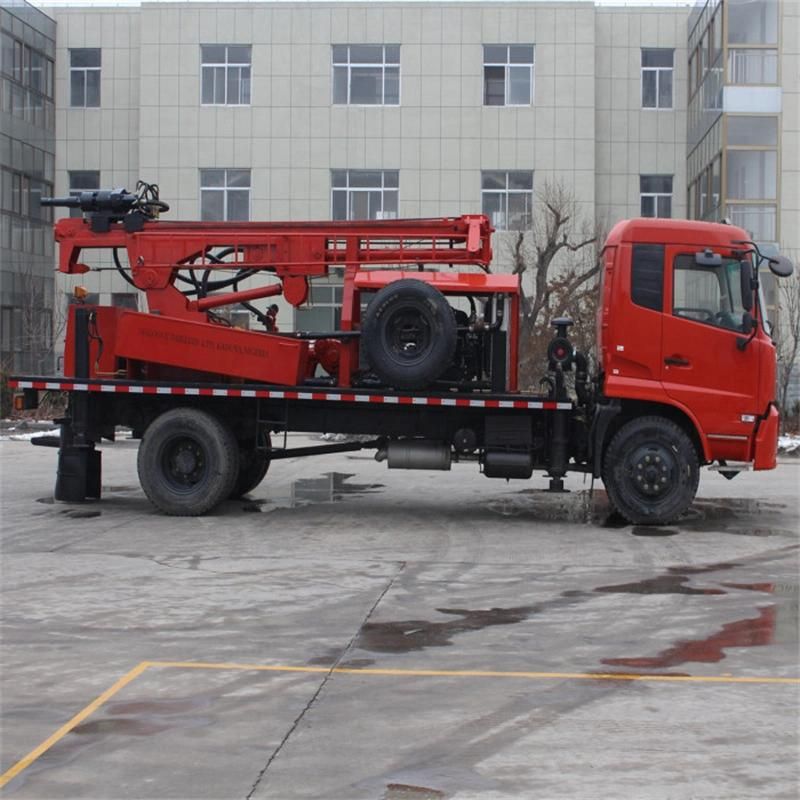

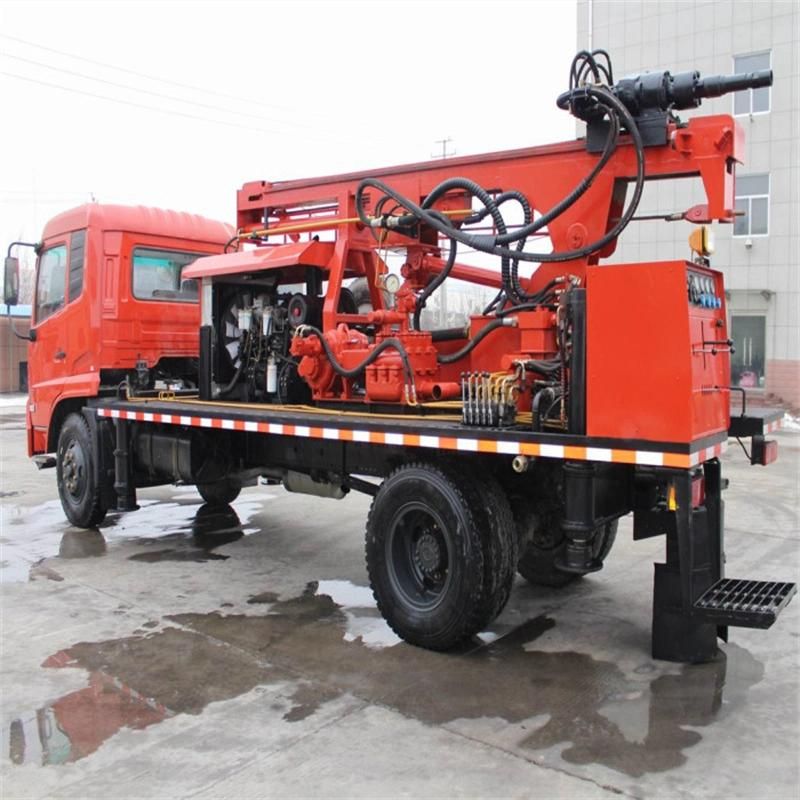

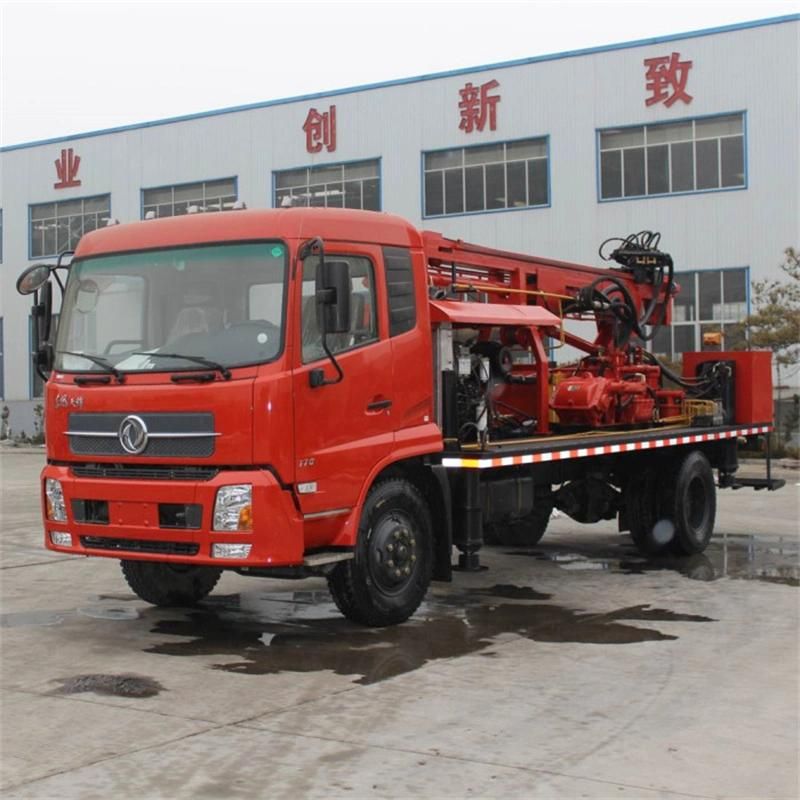

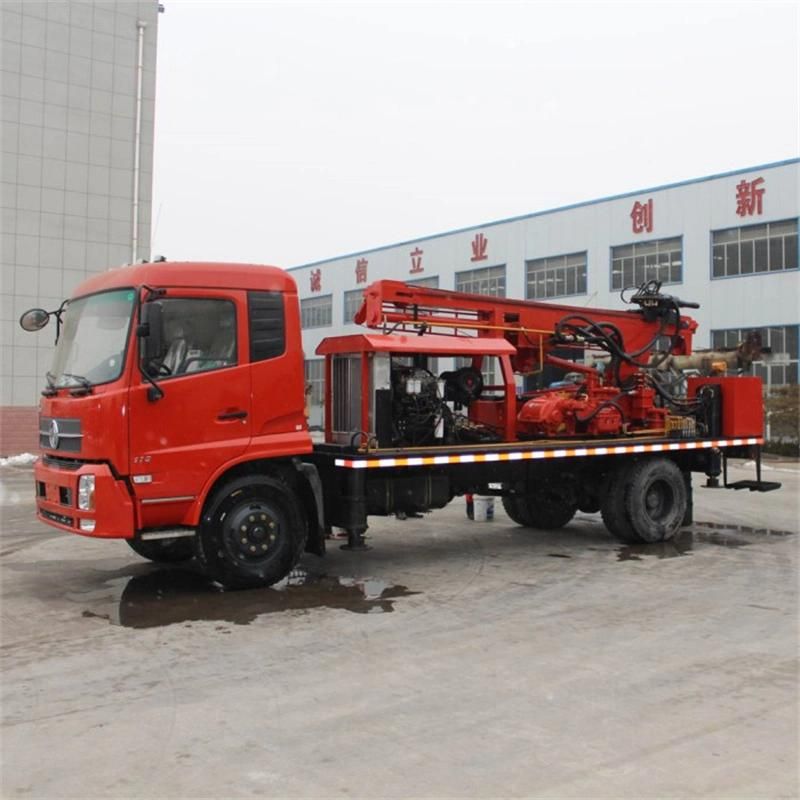

Product Display

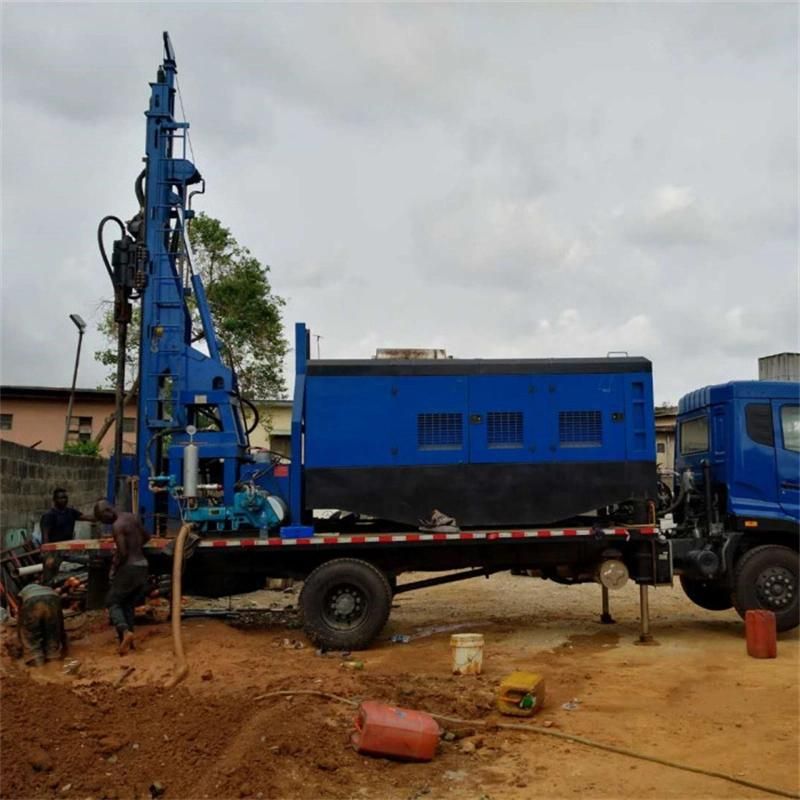

Product Application


Company Profile

Taian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.



FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
