Portable Water Well Drilling Rigs for Sale Air Compressor Water Well Drill Machine
Henan Yugong Machinery Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
Base Info
- Drilling Way：Rotary
- Type：Crawler
- Transport Package：Container
- Specification：3800*1550*2350mm
- Trademark：YUGONG
- Origin：China
- HS Code：8430410900
- Production Capacity：50000,Year
Description
Model
FY180
FY200
FY260
FY300
FY400
FY600
Total Weight (kg)
3800
4600
6200
8800
8700
12000
Dimension (mm)
3800*1550*
2350
3800*1600*
2450
3900*1950*
2550
4350*1850*
2750
5050*2100*
2800
5400*2100*
2850
Hole diameter (mm)
130-254
140-325
140-325
180-325
140-325
140-350
Hole depth (m)
180
200
260
300
400
600
Disposable drilling depth (mm)
3000
3000
3000
6000
6000
6600
Walking speed (km / h)
2.5
2.5
2.5
2
2.5
2.5
Climbing ability (Max.)
30
30
30
30
30
30
Distance off ground (mm)
250
250
250
230
250
250
Working pressure (Mpa)
1.7-2.5
1.7-3.0
1.7-3.0
1.7-3.3
1.7-3.0
1.7-3.5
Air consumption (m3 / min)
15-27
17-35
17-35
23
17-35
17-35
Matching power (kw)
42-65
65
85
85
95
115
Rotational speed (rpm)
48-70
50-70
40-70
55-115
45-75
45-110
Rotational torque (N.M)
4200-5600
5000-6500
7000-9000
7200-8500
8500-10000
8500-10050

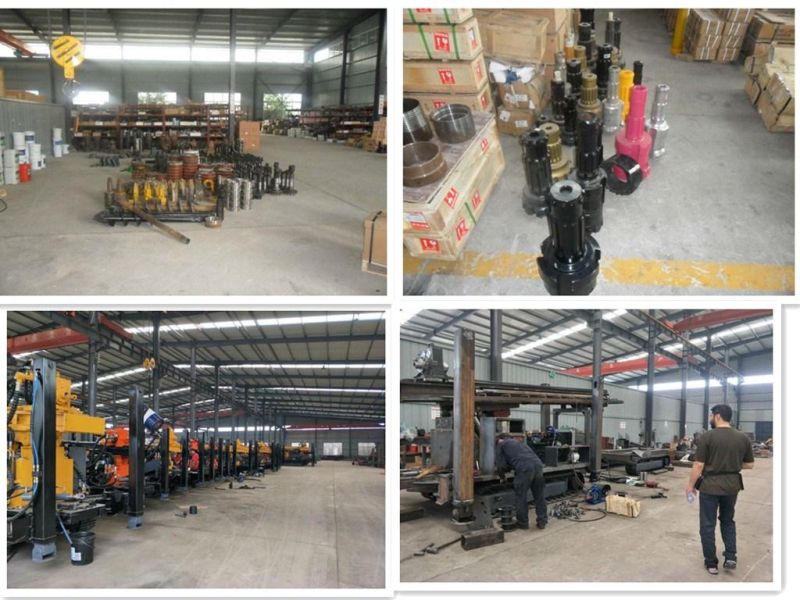

Factory
