• Type：Pole
• Name：DTH Drill Rig
• Size：2280*440*550mm
• Power：3kw
• Warranty：12 Months
• Drill Rod Od：42-45mm
• Rated Speed：1440r,Min
• Voltage：380V
• Drill Depth：25m
• Air Consumption：6m3,Min
• MOQ：1 Set
• Transport Package：by Sea, by Air, by DHL, UPS and So on
• Specification：470kg
• Trademark：YG
• Origin：China
• Production Capacity：5000sets,Month

Basic Info.

Type Pole Name DTH Drill Rig Size 2280*440*550mm Power 3kw Warranty 12 Months Drill Rod Od 42-45mm Rated Speed 1440r/Min Voltage 380V Drill Depth 25m Air Consumption 6m3/Min MOQ 1 Set Transport Package by Sea, by Air, by DHL, UPS and So on Specification 470kg Trademark YG Origin China Production Capacity 5000sets/Month

Product Description

Manual Portable DTH Air Compressor Hammer Drilling Rig Swivel Drilling Rig for Slope Protection

Product Description

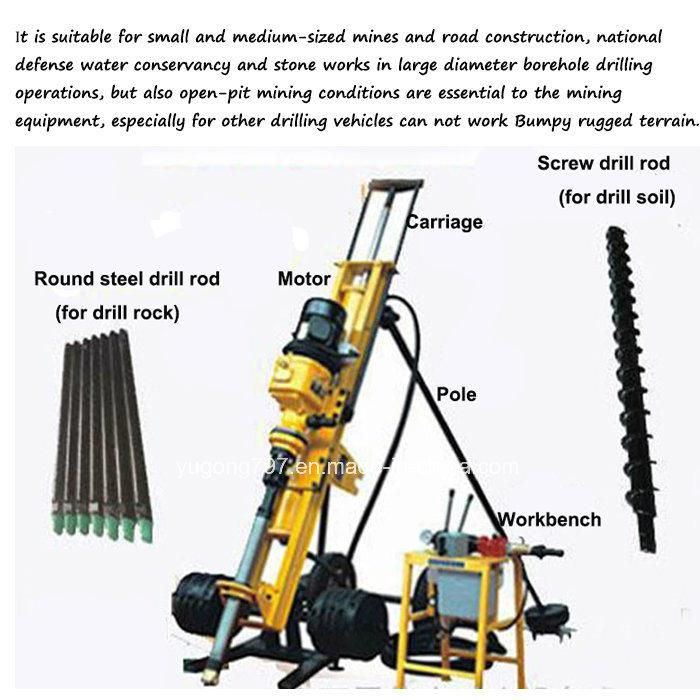

Electric small rock borehole drilling rig is an high efficiency and energy saving electric down-the-hole(DTH) drill, it has simple structure, easy operation and low price.DTH drill can also drill vertical and horizontal blast hole, especially it has low center of gravity and detachability is good, so movement and transportation are convenient

Technical Parameters

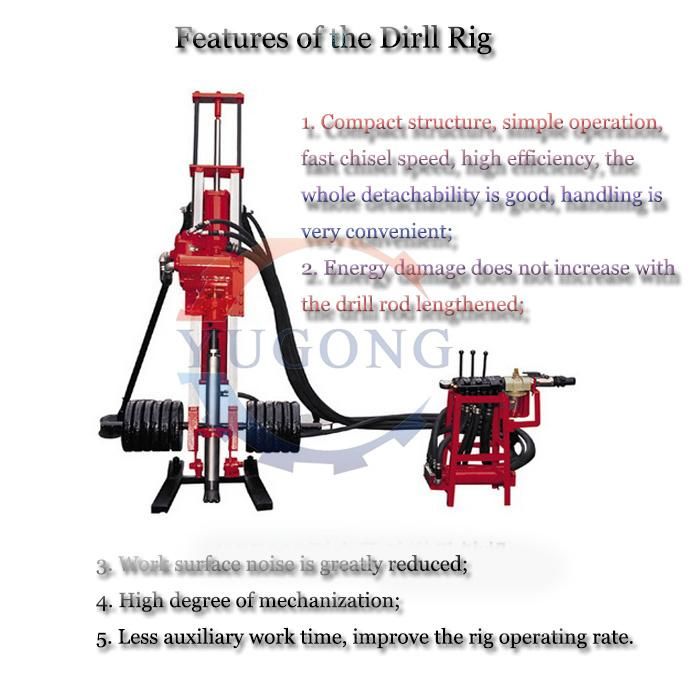

Product Features and Details

1. Drilling machine full hydraulic drive, easy operation and flexible, easy to shift, good mobility, saving time and effort;
2. Drill rotator with dual hydraulic motor drive, the output torque, greatly improving the drilling rig rigidity;
3. The new angle mechanism makes the hole more convenient, adjust the scope of larger, can reduce the requirements of the face;
4. With a dedicated drill pipe with drill (drill pipe, sleeve, eccentric drill, etc.), in the unstable formation with casing wall openings, conventional ball teeth drill hole;
5. The rig can be directly connected with the hydraulic station, the structure is simple; the hydraulic station frame is equipped with a roller, which is easy to move and relocate. The engine is composed of three parts: host, hydraulic station and console.

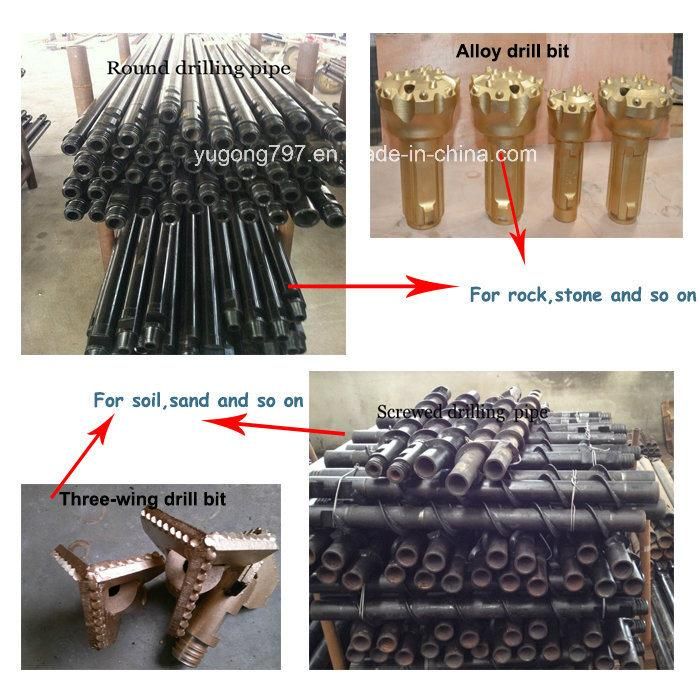

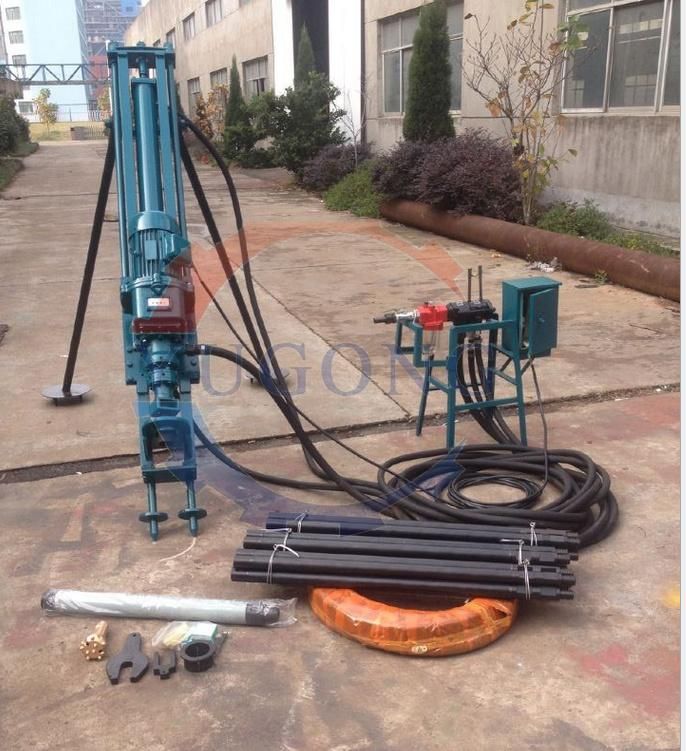

Product and Spare Parts Show

Packaging & Shipping

1. Packaging:  1)Wrapped by proctective film;

                        2)Packed by standard import & export wooden cases or carton boxes.

2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Payment Terms

We accept L/C, T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.



Frequently Asked Questions

1. Q: Are you trading company or manufacturer?

    A: We are original equipment manufacturer.

2. Q: How long is your delivery time?

    A: It is according to the model and quantity.

        Generally it is 3-5 days if the machines are in stock.

        It will be 15-30 days if you want to customize the machines.

3. Q: Do you provide samples? Is it free or extra?

    A: Yes, we could offer you the sample machine.

        But it's not free. You need to pay for the sample and the cost of freight.

4. Q: What is your terms of payment?

    A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.

        Payment<=USD 5000, 100% in advance.

        Payment>=USD 5000, 30% T/T in advance, balance before shipment.
