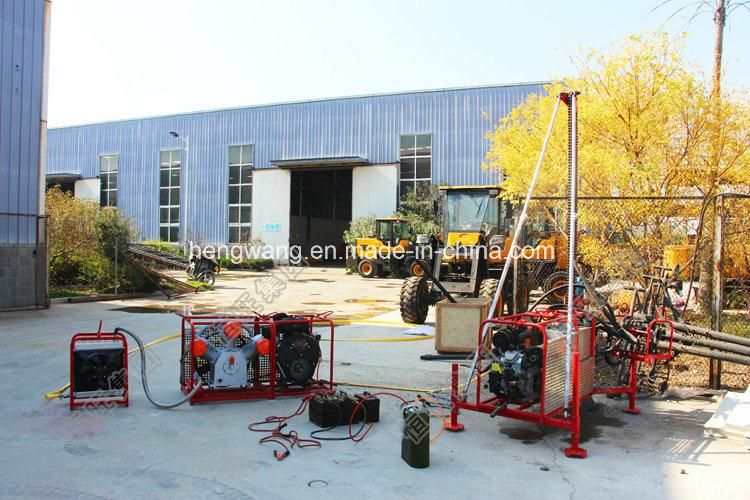

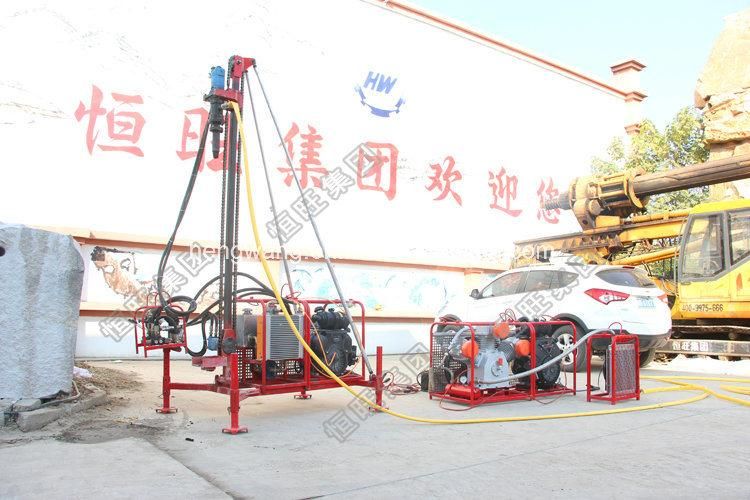

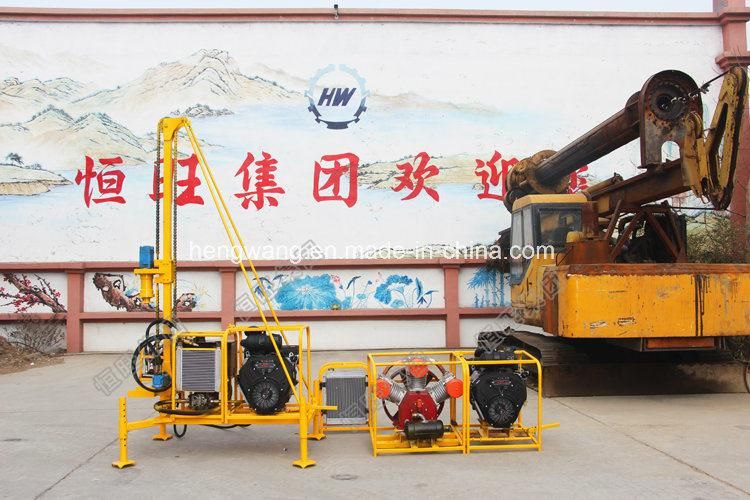

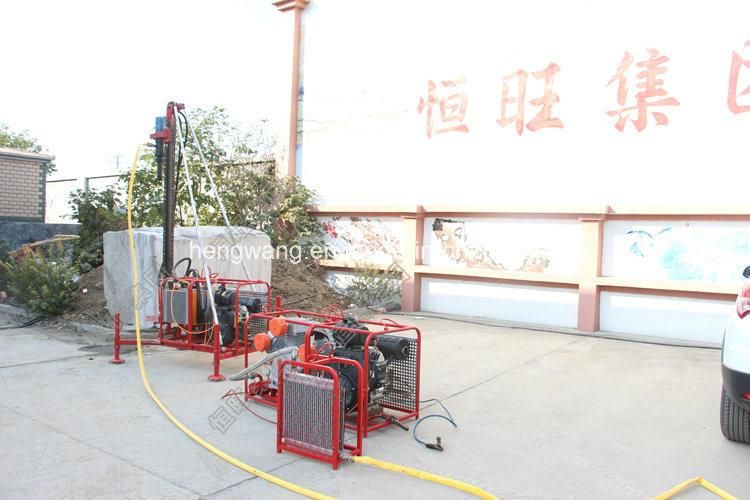

Popular Portable Mini DTH Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit

Base Info

  • Drilling Way：Rotary
  • Max. Drilling Depth：30m
  • Advantage：Include Small Air Compressor
  • Drilling Method：Pneumatic Hammer Drilling
  • Pneumatic Hammer Drilling：Gasoline,Diesel
  • Transport Package：Stardard Export Packing
  • Specification：1100*600*500
  • Trademark：HW
  • Origin：China
  • Production Capacity：3000pieces,Month

Description

ModelHW-S30Drilling depth30mDrilling methodpneumatic hammer drillingScrewdrilling and mud drilling(alternative)Drilling diameter(mm)pneumatic hammer   drillingrock70-90,soil75-9575-90drill rod(Dia*Length)(mm) pneumatic hammer
 drillingΦ60×1500Power head(N.m)Torque800-900(r/min)Drilling speed0-135Drilling  pressurization  and lifting(N) Feed pressure5500-6000(kN)Lifting power12-16(m/s)Max lifting speed0.71-0.81Power(kw)/Rotatory(r/min)Main engine power/speed26/3600hydraulic system(L/min) Flow0-60(Mpa)Working pressure20air compressorType/Quantity1Piston/1 unitScrew(m3/min)Flow3.53.8(Mpa)Pressure0.8Power(kw)/Rotatory(r/min)Engine power/speed26/3600
