• Model NO.：GS50-LS
• Type：Crawler
• Engine Power：43 kW
• Max Torque：2235 N·m
• Max Mud Pump Flow：75 L,Min
• Transport Package：Nude Packing
• Specification：3870*1300*1470 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Model NO. GS50-LS Type Crawler Engine Power 43 kW Max Torque 2235 N·m Max Mud Pump Flow 75 L/Min Transport Package Nude Packing Specification 3870*1300*1470 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.The engine imported from Japan Yanmar Engine with sufficient power support to ensure stable machine performance, low fuel consumption and low noise for urban construction.
2.The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves infinitely variable speed. The push-pull motor also adopts the American Eaton motor to achieve stepless variable speed, and the machine work speed is far ahead in the same industry.
3.The 42*1800mm drill pipe allows the machine to be adapted to smaller construction areas.The drill rod box capacity is 44pcs.
4.The machine structure is simple in design, with low failure rate and easy maintenance.
5.Rotary and push-pull motors use load-sensitive control systems and internationally advanced hydraulic components. The independent cooling system ensures high-efficiency construction and high performance reliability.

[Main Technical Parameters]


Engine Power	43 kW	Max. Torque	2235 N·m
Rig Weight	3650 kg	Dimension(L*W*H)	3870*1300*1470 mm
Max. Push & Pull Force	51.2 kN	Max. Rotation Speed	215 r/min
Max. Push & Pull Speed	61 m/min	Max. Mud Pump Flow	75 L/min
Caterpillar Walking Speed	3-5 km/h	Max. Mud Pump Pressure	6 MPa
Enter Drill Angle	14-17°	Max. Climbing Gradient	16°
Max. Aperture Diameter	Φ300 mm (Soil Depended)	Max. Crossing Length	100 m (Soil Depended)

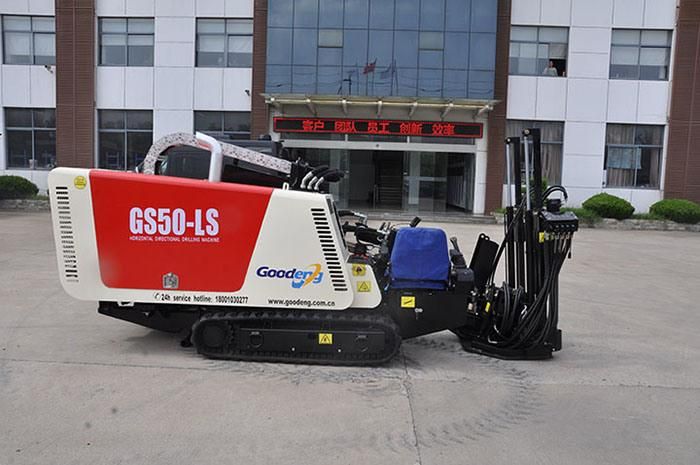

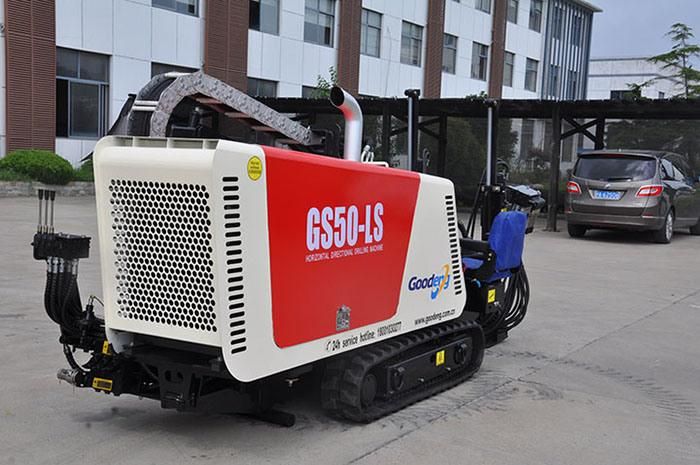

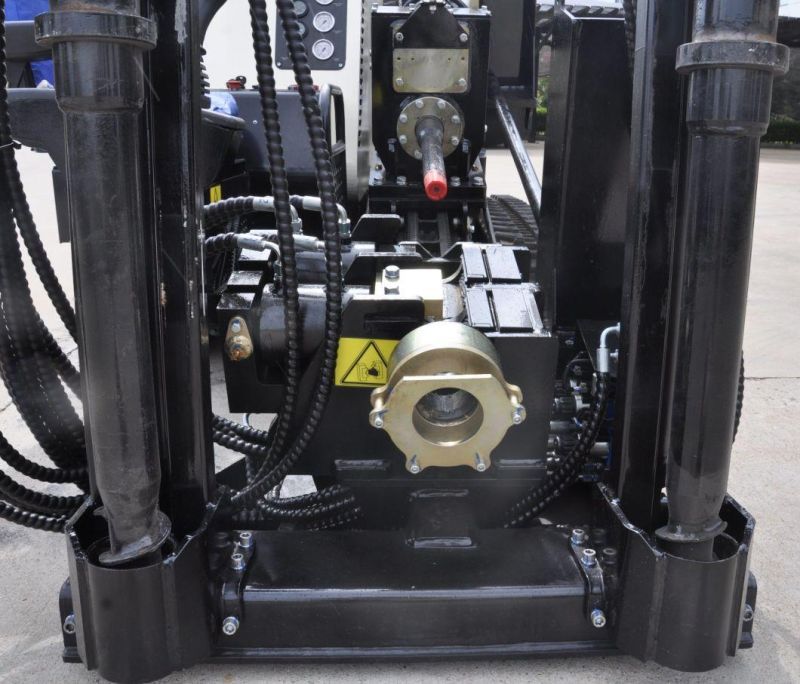

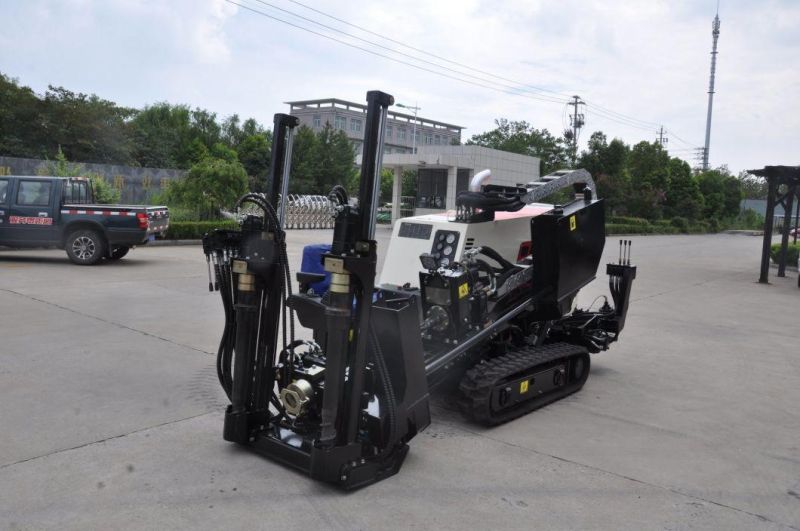

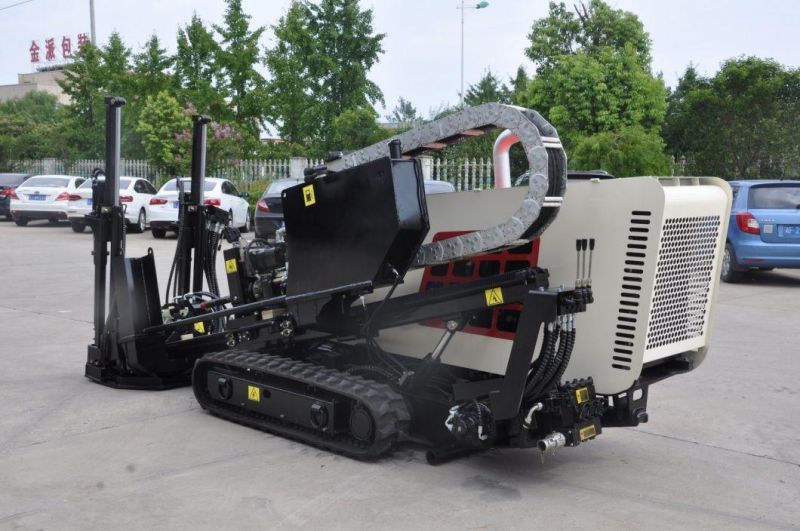

[Product Photos ]

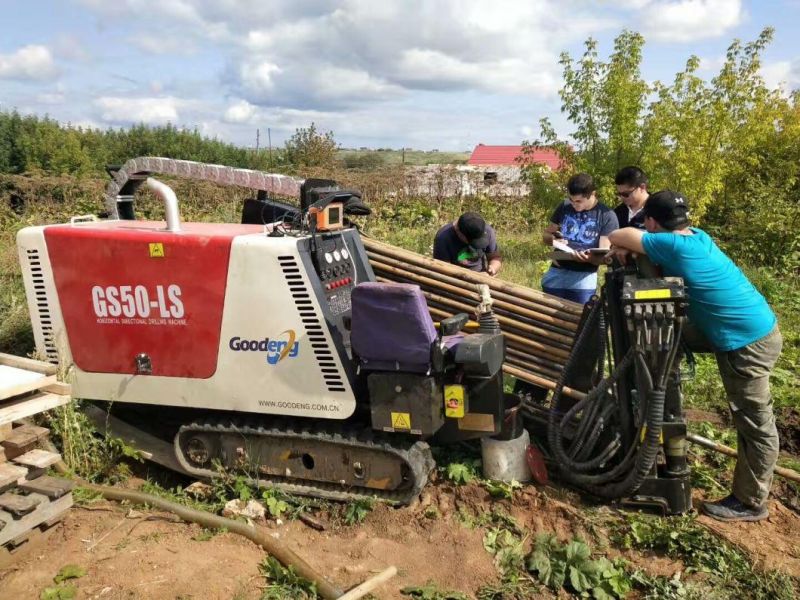

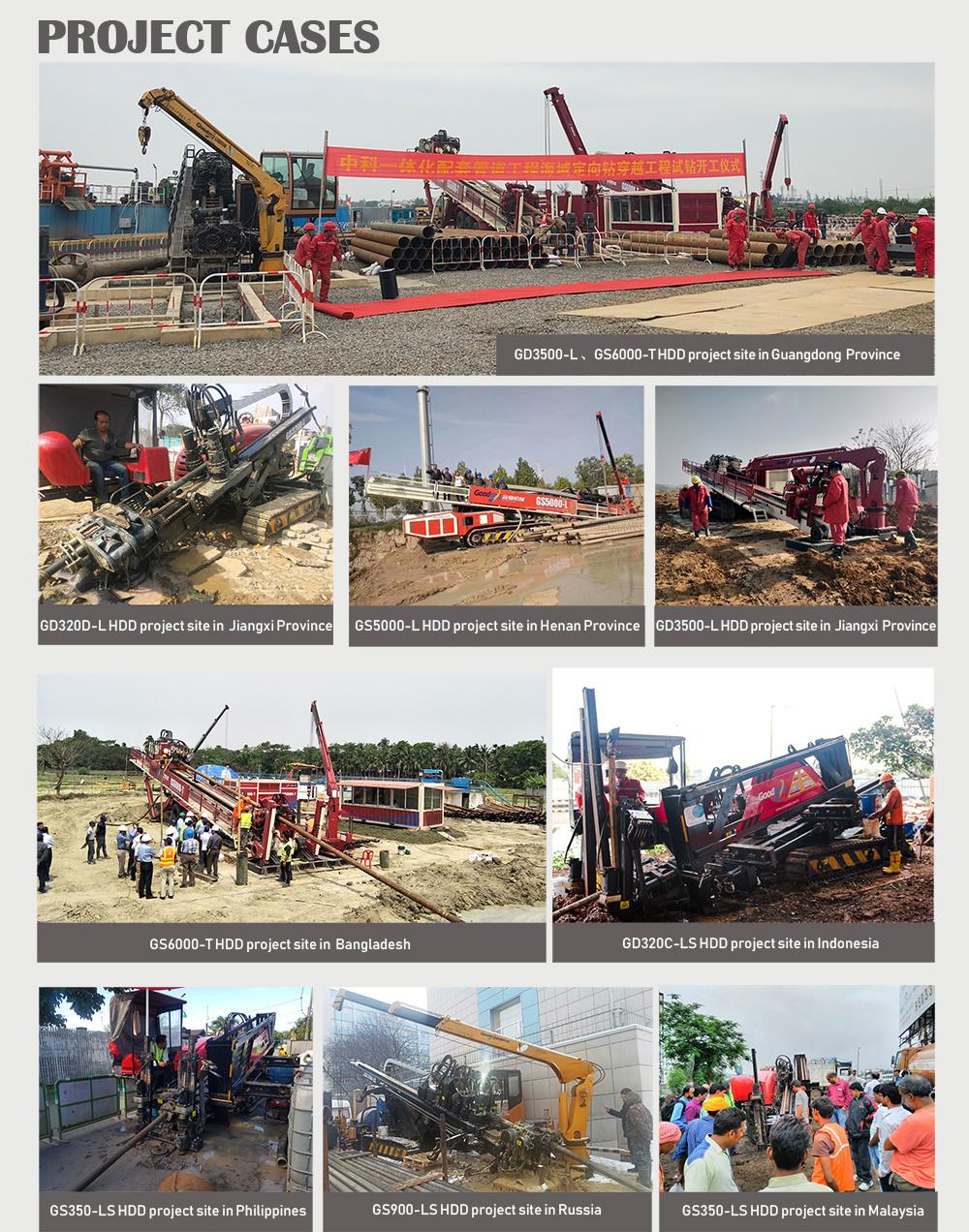

[Cases]



[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is a national high-tech enterprise, which is specialized in research & development, manufacturing, sales and service for trenchless equipment. Our main products are GD/GS series of horizontal directional drilling machine and accessories. As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which has filled in multiple domestic and foreign technical blanks. Many kinds of products have obtained national and provincial progress prize in science and technology of machinery industry. In 2018, "Goodeng Machine" had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.

[Competitive Advantage]
  1. Competitive Price: We are the professional manufacturer of horizontal directional drilling machine. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2.  High Quality: We selected the well-known brand and high-quality spare parts for the machines, ensuring the stability, safety and efficiency of machines.
3. Quick Response: Our team is consisted of a group of diligent and enterprising people, working 24hrs/day to respond clients' inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occurs first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
5. What about the after-sales service?    A: We have office and professional after-sales service team in many countries. After you receive the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service personnels will arrive the project site in shortest time.
