KQG35A High Pressure Drilling Tools DTH Hammer

Quzhou Refine Machinery Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：<100mm
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：KQG35A
  • Drilling Way：Rotary
  • Weigth：23kg
  • Overall length：890mm
  • Outside Dia6.：82mm
  • Working Pressure：1.0-1.8MPa
  • Impact Frequency：>16Hz
  • Air Consumption：3.8-8.5m3,min
  • Dia. of Drilling hole：90-105mm
  • Transport Package：Wooden Case or Carton
  • Specification：Down the hole impact hammer
  • Trademark：Kaishan
  • Origin：Zhejiang, China
  • HS Code：8431432000
  • Production Capacity：5000PCS,Month

Description

Low Pressure Down The Hole Impact/Impactor Hammer ModelWeigthFullengthOuter dia.Working pressureImpact frequencyAir consumption (m3/min)                 Bore Hole Dia. KGmmmmMpaHz<0.5Mpa<0.7Mpamm QCZJ70A12.5763660.5~0.7>143570-76 QCZJ9020795800.5~0.7>145.5890-100 QCZ10030792950.5~0.7>149.511105-120 QC11032835950.5~0.7>149.511110-150 Middle  Pressure Down The Hole Impact/Impactor HammerModelWeigthFullengthOuter dia.Working pressureImpact frequencyAir consumption (m3/min)                 Bore Hole Dia.KGmmmmMpaHz<0.5Mpa<1.0Mpa<1.2MpammQCK9021.5806800.5~1.2>15581070-76QCW93022869800.5~1.2>14581090-100High  Pressure Down The Hole Impact/Impactor HammerModelWeigthFullengthOuter dia.Working pressureImpact frequencyAir consumption (m3/min)                 Bore Hole Dia.KGmmmmMpaHz<1.0Mpa<1.8Mpa<2.4MpammKQG35A23890821.0~1.8>163.88.5N/A90-105KQG45A38986991.0~2.5>1661015105-130KQG55A6911101251.0~2.5>1671419135-155

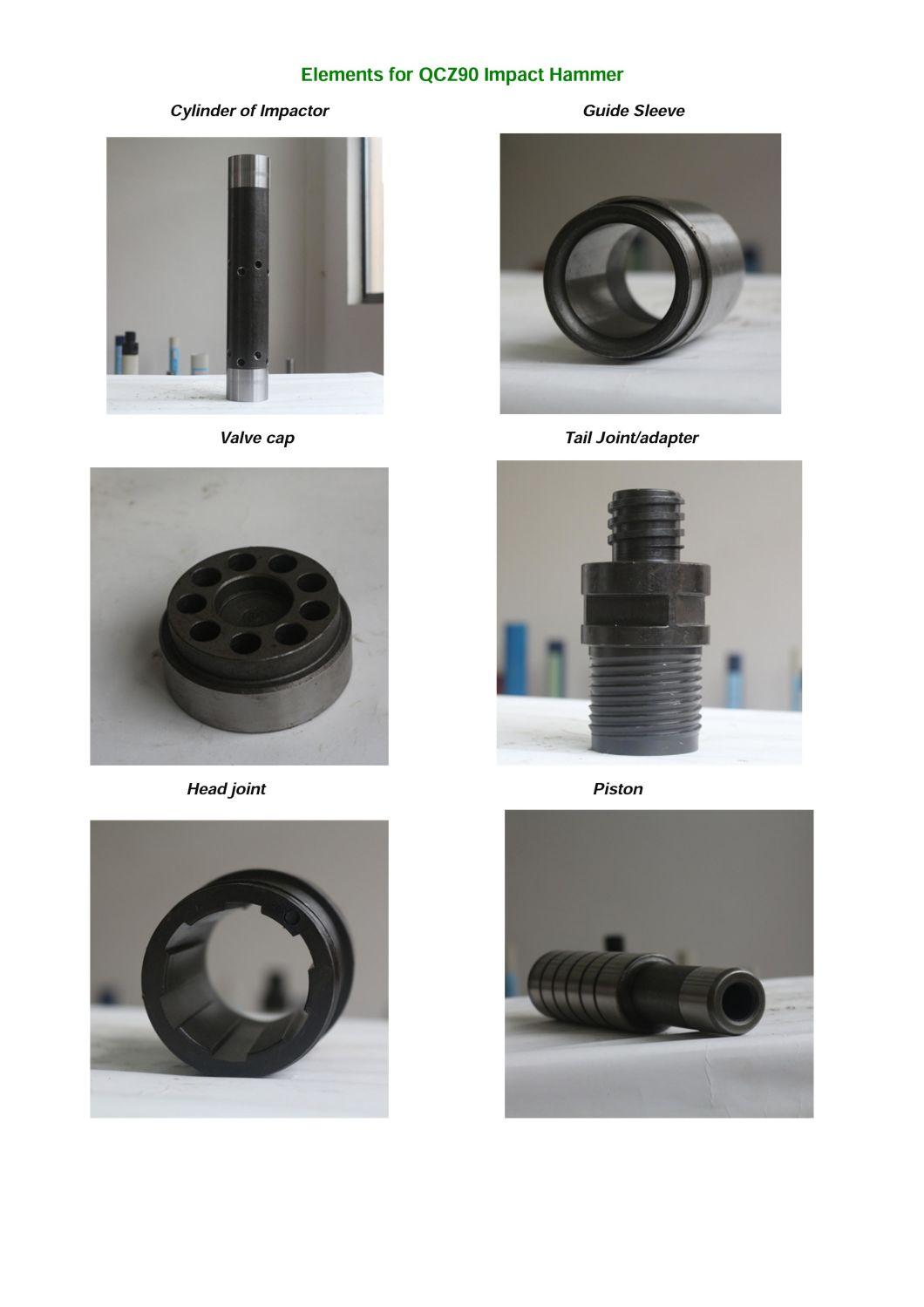

The spare parts photos for DTH impact hammer:
KQG35A High Pressure Drilling Tools DTH Hammer

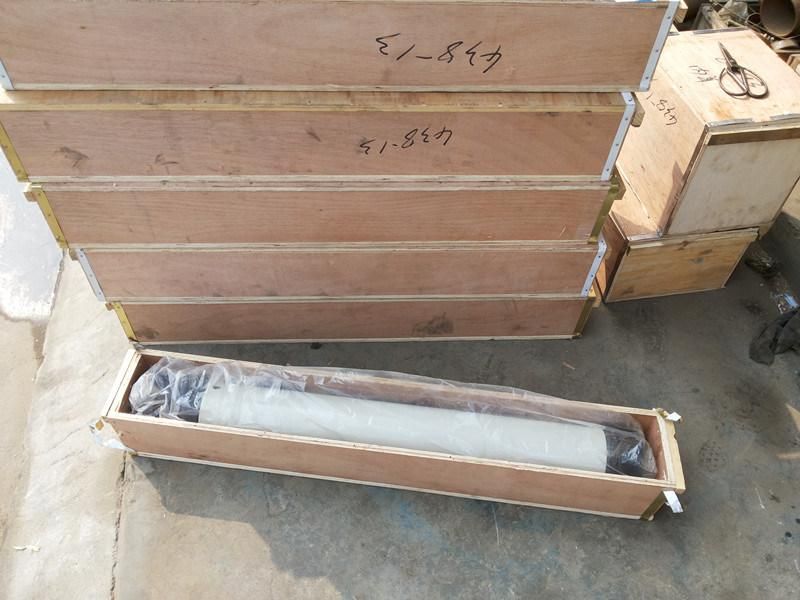

The package:
KQG35A High Pressure Drilling Tools DTH Hammer
The other similar items you may need:
KQG35A High Pressure Drilling Tools DTH Hammer

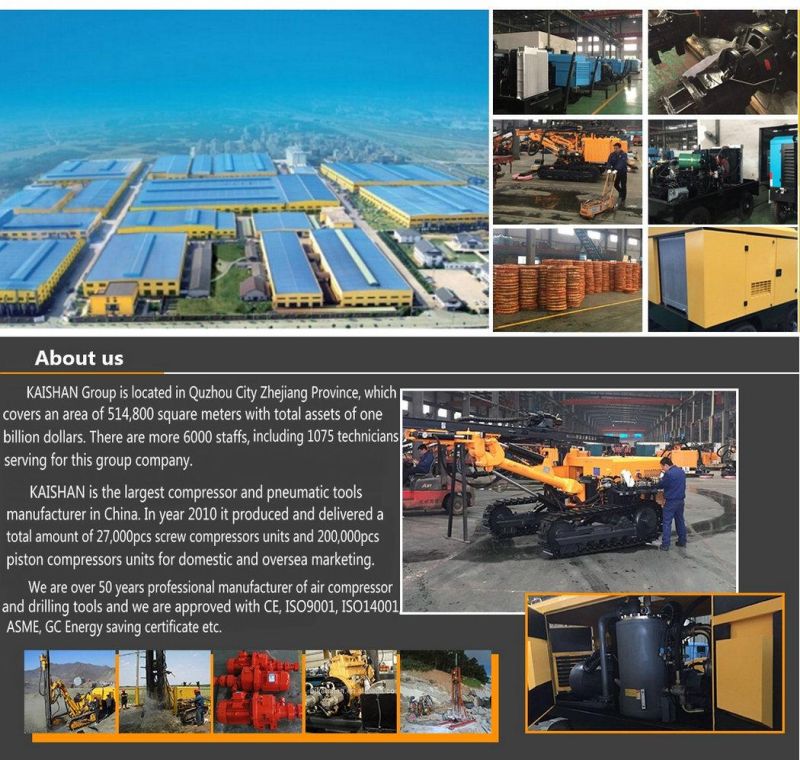

About Kaishan Group:
KQG35A High Pressure Drilling Tools DTH Hammer
FQA collection:
1.Q: Are you a factory or trading company?
A: We  has our own factory to produce goods for you.

2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Quzhou City,Zhejiang Province China. You can fly to Hangzhou Airport directly.All our clients,from home or abroad,are warmly welcome to visit us.

3.Q: About samples
A: We are honored to offer you samples for your checking.Postage can be refund after order is confirmed.

4.Q:Package and Shipping
   A: Export packing or as your requirements. Shipment:

5. Q: Payment
   A:T/T:30% as deposit and 70% balance after get copy of B/L.
   B:L/C
   C:Western Union
   D:Paypal
   E:Discuss together between buyer and supplier.
