• Model NO.：XY-6
• Usage：Water Well
• Transport Package：Wooden Box
• Trademark：GM
• Origin：China
• Production Capacity：1000set,Year

Basic Info.

Model NO. XY-6 Usage Water Well Transport Package Wooden Box Trademark GM Origin China Production Capacity 1000set/Year

Product Description

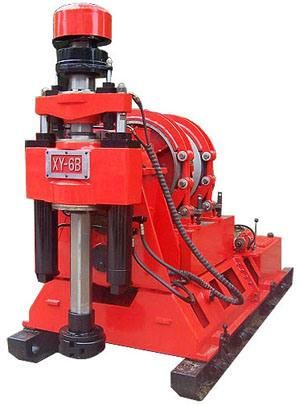

The XY-6 Exploration Drilling Rig is mainly used for the oil fields of geology, metallurgy, coal, shallow, natural gas, and geothermal exploration of diamond drilling also meet the small-caliber, but also take into account the general hydrological well drilling and other engineering construction. XY-6 type of rig is mechanical-hydraulic drive spindle type core drilling rig. Rig reasonable structure, smooth operation, reliable work, easy to manipulate, strong and durable, the disintegration of performance, ease of installation, commissioning and repair characteristics.
 The main technical parameters 1. Drilling Depth Φ50 drill pipe: 2000m; Φ60 drill pipe: 1500m 2. Gyrator Spindle speed (4135 diesel engine) Forward 8-speed: 80 ~ 1000r/min Reverse 2-speed: 62; 170r/min Spindle stroke: 600mm Vertical shaft diameter: Φ96mm Maximum lifting capacity: 200kN Maximum pressure capacity: 150kN 3. Winches Lifting speed (third floor): 0.66; 1.44; 1.85; 2.13m/s Maximum lift capacity (single rope): 60kN 4. The Mobile Device Moving the cylinder stroke: 550mm 5. Power (optional) Motor: Y2-280S-4 75kW Diesel Engine: R6105P 72kW 6. The Rig Weight (not including power): 3910kg 7. Dimensions (L × W × H): 3450 × 1500 × 2250mm
