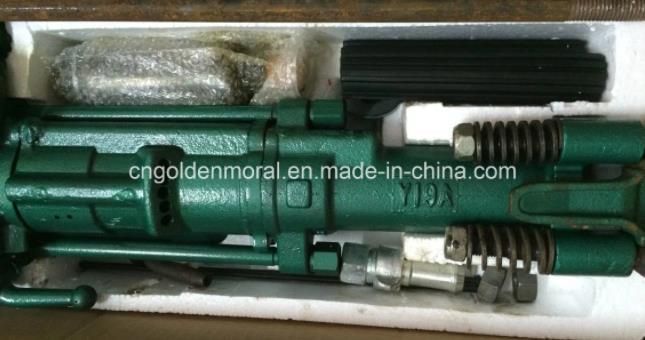

Y19A Hand-Held and Air-Leg Rock Drill/Hand-Hold Pneumatic Rock Drill/Jack Hammer
Fuzhou Golden Moral Imp & Exp Co., Ltd.- Certification：CE
- Condition：New
- Screwdriver Startup Mode：Optional
- Degree of Automation：Semi-Automatic
- Color：Optional
- Transport Package：Cartons or Others
Base Info
- Model NO.：Y19A
- Specification：Structure
- Trademark：GM
- Origin：China
- Production Capacity：50000set,Year
Description
Basic Info.
Model NO. Y19A Specification Structure Trademark GM Origin China Production Capacity 50000set/YearProduct Description
The Y19A rock drill is mainly used in samll quarries,small coal mines and limestone mines for drilling,blasting for constructing roads in mountain areas, also in the capital construction for water conservancy works.it is suitable for drilling works in large mines for boulder blasting and other projects as well.When it is matched with air- leg model FT100,it can perform both dry and wet drilling under various kinds of rocks,and it is evenmore flexible in drilling operation when matched with the small- size compressor of capacity of 1.5m3,the function will be better than others.
The flanged control vavle is adopted,so it has many advantages such as reasonable in structure,quick in starting ,light in weight ,fast drilling speed,lower air comsumption,smaller vibration,easier operation,lower trouble rate,long-life parts,good economic effect,ect.it is also equipped with a rubber damping handle,so is eary to operate and provide the operators with necessary working protection.
Specification
Weight 19kg
Outside dimensions(L×W×H) 600×534×157mm
Cylinder dia 65mm
Piston stroke 54mm
Air pressure 0.4~0.5Mpa
Air pipe inner dia 19mm
Water pipe inner dia 13mm
Shank dimension 22×108mm
When working pressure is 0.4Mpa 0.5Mpa
Impact energy ≥28J ≥40 J
Impact frequency ≥28Hz ≥35 Hz
Idling speed ≥180 r/min ≥200 r/min
Air consumption ≤37 L/s ≤43 L/s
