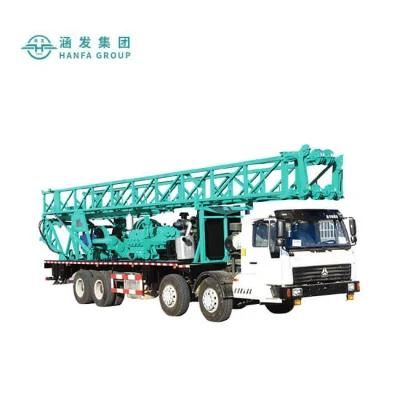

Hfxc Series 300-3000mtruck Mounted Water Well Drill Rig

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：330-820mm
  • Drill Hole Depth：300-3000m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HFXC Series
  • Drilling Way：Rotary
  • Type：Truck Mounted
  • Drilling Depth：300-3000m
  • Max. Diameter of Working Floor：330-820mm
  • Max. Lifting Capacity：160-1200kn
  • Max.Feeding Capacity：80-260kn
  • Max.Lifting Speed：30-32m,Min
  • Stroke：7000-15240mm
  • Max.Torque：6600,3300-27500,18300n.M
  • Max.Speed：95,190-120,180r,Min
  • I.D：55-105mm
  • Top Drive Floating Distance：100mm
  • Transport Package：Standard Export Packing
  • Specification：13.3-55t
  • Trademark：HF
  • Origin：China
  • HS Code：843041
  • Production Capacity：30sets,Month

Description

Overview Product Description

* All-wheel drive vehicle chassis, satisfy the national emission standard, strong off-road performance.

* Multi-axle steering intelligent control and multi-steering mode provide flexible steering and small steering
   diameter.

* Hydro-pneumatic suspension with good travelling performance, which adapts to severe road conditions
   such as muddy road, sand, snowfield. upland etc.

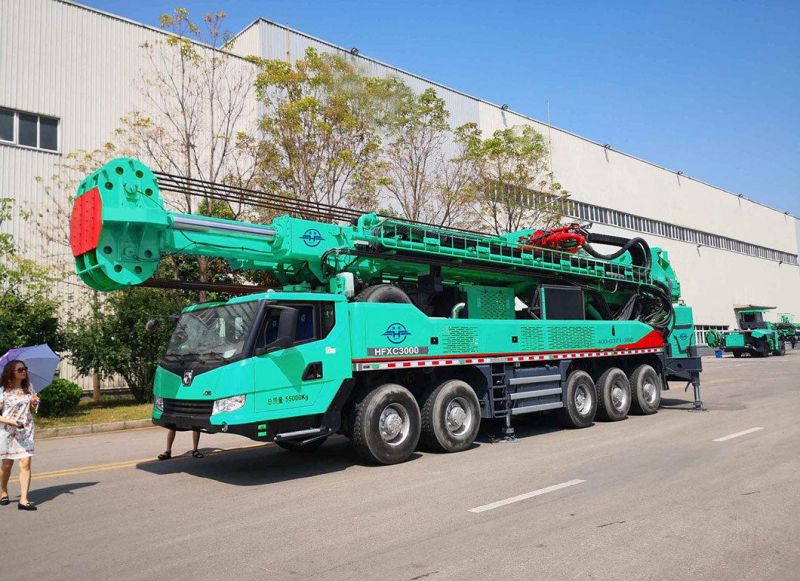

Hfxc Series 300-3000mtruck Mounted Water Well Drill Rig

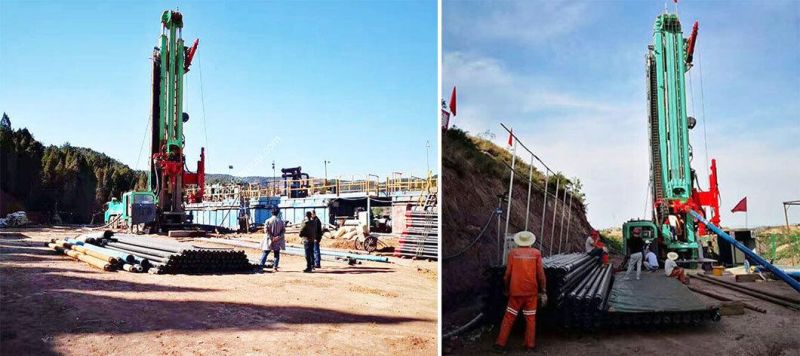

Product ParametersWorking Site

Hfxc Series 300-3000mtruck Mounted Water Well Drill Rig

Company Profile

Hfxc Series 300-3000mtruck Mounted Water Well Drill RigHfxc Series 300-3000mtruck Mounted Water Well Drill RigHfxc Series 300-3000mtruck Mounted Water Well Drill RigFAQ

1.Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5.What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
