Drilling Rig

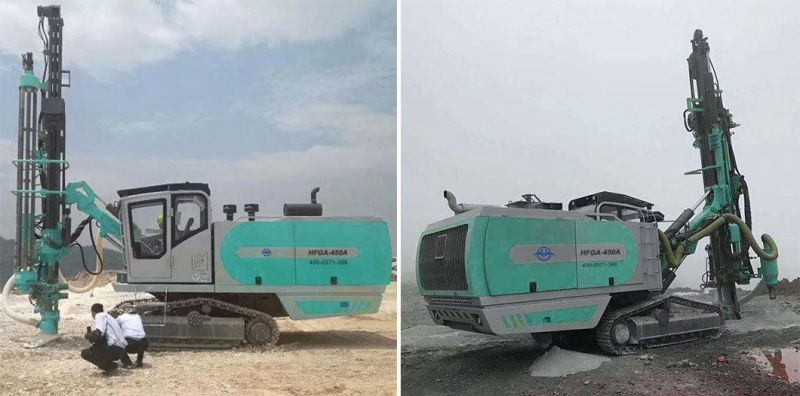

Hfga-45 28m DTH Surface Blast Hole Drill Rig

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • After-sales Service:Online Support,Field Maintenance
  • Warranty:1 Year
  • Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Motor:194kw
  • Drill Hole Diameter:115-138mm

Base Info

  • Model NO.:HFGA-450A
  • Drill Hole Depth:28m
  • Bit Type:DTH Bit
  • Drilling Way:Rotary
  • Diesel Engine:194kw
  • Drilling Diameter:115-138mm
  • Drill Depth:28m
  • DTH Hammer:4" , 5"
  • Drill Pipe Storage:6 + 1
  • Drill Pipe:76*4000mm
  • Max. Working Torque:2,800n.M
  • F.a.D:18m3,Min
  • Maximum Working Pressure:21 Bar
  • Max Pullup Force:31kn
  • Tramming Speed:3km,H
  • Slope Capability:25°
  • Weight:16000 Kg
  • Transport Package:Standard Export Packing or as You Needs
  • Specification:9980*2480*3200 mm
  • Trademark:HF
  • Origin:China
  • HS Code:843041
  • Production Capacity:30sets,Month
