• Model NO.：YT23(7655),YT23D(7655D)
• Trademark：GM
• Origin：China
• Production Capacity：1000set,Year

Basic Info.

Model NO. YT23(7655)/YT23D(7655D) Trademark GM Origin China Production Capacity 1000set/Year

Product Description

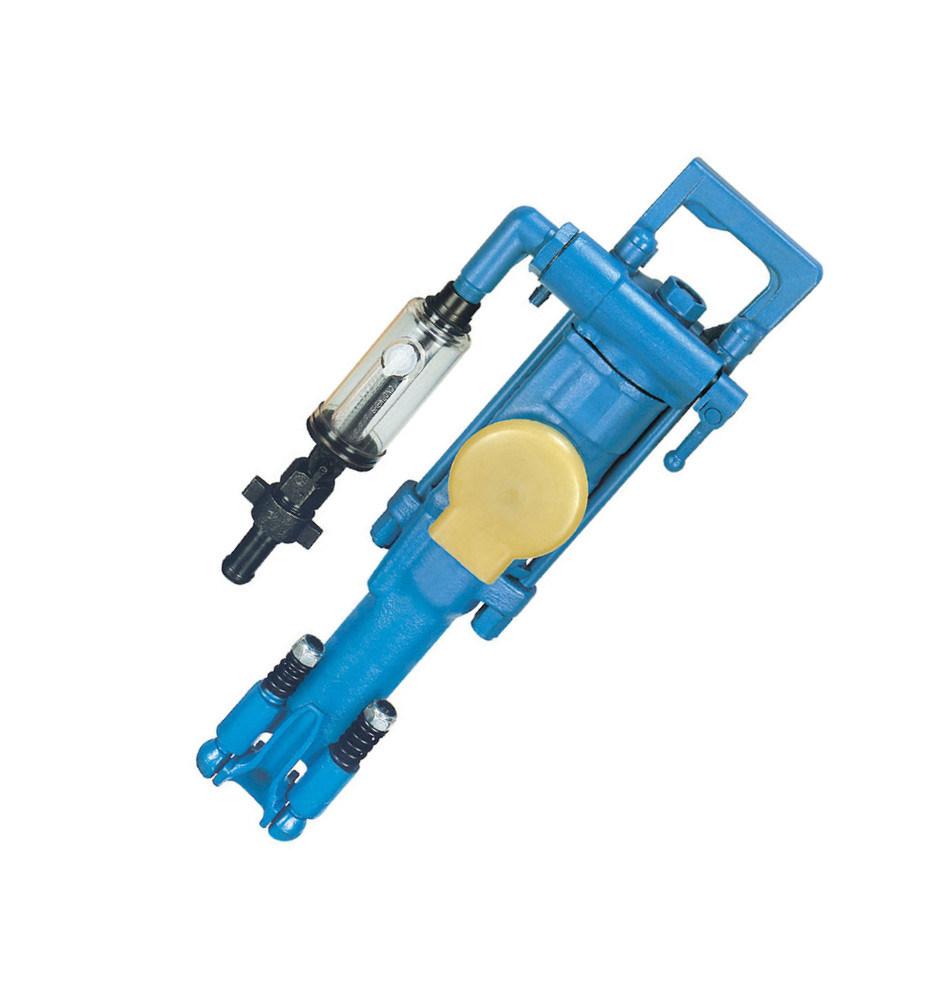

The YT23(7655) rock drill is a kind of high efficiency air leg rock drill machinery. it is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility. When it is matched with the Model FY200A  Oil reservior and Model FT160A or FT160B Air-leg, it can perform wet drilling and blast holes from different and angles.

Specification
Weight                                                            24 kg
Length                                                            628mm
Air pressure                                                  0.63MPa
Cylinder dia                                                    76mm
Piston stroke                                                  60mm
Impact frequencey                                          ≥ 36Hz
Impact energy                                                ≥  65J
Air consumption                                             ≤80 L/S
Idel speed                                                     ≥300r/min
Noise                                                           ≤112dB(A)
Water pressure                                             0.2-0.3MPa
Air pipe (inner dia)                                           25mm
Water pipe (inner dia)                                      13mm
Bore dia                                                         34-42mm
Bore depth                                                         5m
Shank dimensions(hex×length)              22×108  mm×mm

Model FY200A oil lubricator
Weight                                                 1.2kg
Oil capacity                                           0.2L
Air leg                                FT160A                    FT160B
Weight                                 17Kg                        16 kg
Length:max                       3006mm                   2526mm
Length:min                        1668mm                   1428mm
Propulsion stroke              1338mm                   1098 mm
Axis thrust(max)                  2000 N                     2000N


-------------------------------------------------------------------------------------------------------------------------------------

The YT23D(7655D) rock drill has good performance under low pressure,it is suitbale for act impetus with long Air pipe and small air compressor.And it is use for drilling in mines,quarries,railway construction,water conservancy and national defence project facility. When it is matched with Model FY200A oil reservoir and Model FT160A or FT160B air-leg, it can perform wet drilling under various of rocks at aclinic and incline orientation,it can also use in the trolley without Air-leg.

Specification
Weight                                                             24 kg
length                                                             668mm
Air pressure                                                0.35-0.63MPa
Cylinder dia                                                      70mm
Piston stroke                                                    70mm
Impact frequencey(at0.4MPa)                         ≥28HZ
Impact energy(at0.4MPa)                                 ≥45J
Air consumption (at0.4MPa)                             ≤38 L/S
Noise                                                              ≤112dB(A)
Water pressure                                              0.2-0.3MPa
Air pipe (inner dia)                                             19mm
Water pipe (inner dia)                                        13mm
Bore dia                                                           34-42mm
Bore depth                                                            5m
Shank dimensions(hex×length)                   22×08 ±1 mm

Model FT200A Oil reservior
Weight                                                    2kg
Oil capacity                                            0.2L
Air leg                                  FT160A                     FT160B
Weight                                  17Kg                          16 kg
Length:max                         3006mm                    2526mm
Length:min                          1668mm                    1428mm
Propulsion stroke                1338 mm                   1098 mm
Axis thrust(max)                    2000N                        2000N
