260m Hydraulic and Air Water Well Drilling Rig with Mud Pump and Air Compressor
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：>200m
Base Info
- Model NO.：260m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Name：Water Well Drilling Machine
- Model：Hqz-260L
- Drill Depth：260m
- Drill Diameter：300mm
- Transport Package：Standard Export Packing
- Specification：260m
- Trademark：HW
- Origin：China
- Production Capacity：60pieces,Month
Description
Model
HQZ-260L
Total Weight(T)
6.4
Dimensions(mm)
4100*1900*2600
Drilling Diameter(mm)
140-300
Drilling Depth(m)
260
One-time Advance Length of the Drill(mm)
3000
Walking Speed(Km/h)
2.5
Climbing Ability(max)
30
Min. Ground Clearance(mm)
250
Working Air pressure(Mpa)
1.7-3.0
Air Consumption(m³/min)
17-35

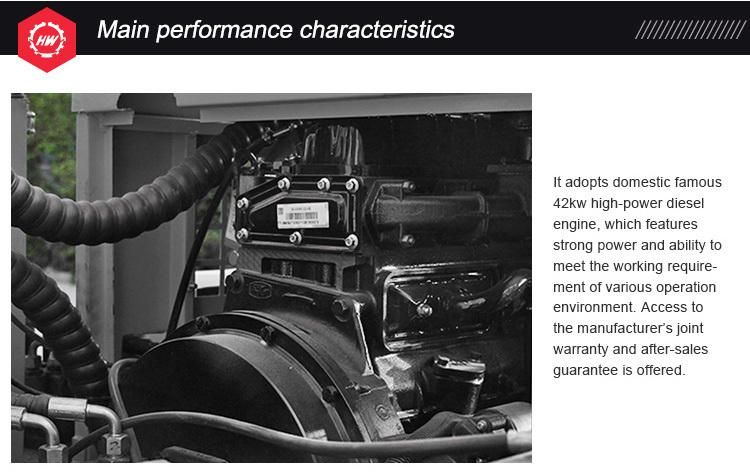

Main Power(kw)
73/Yuchai
Rotation(rpm)
40-70
Rotary Torque(Nm)
7000-9000

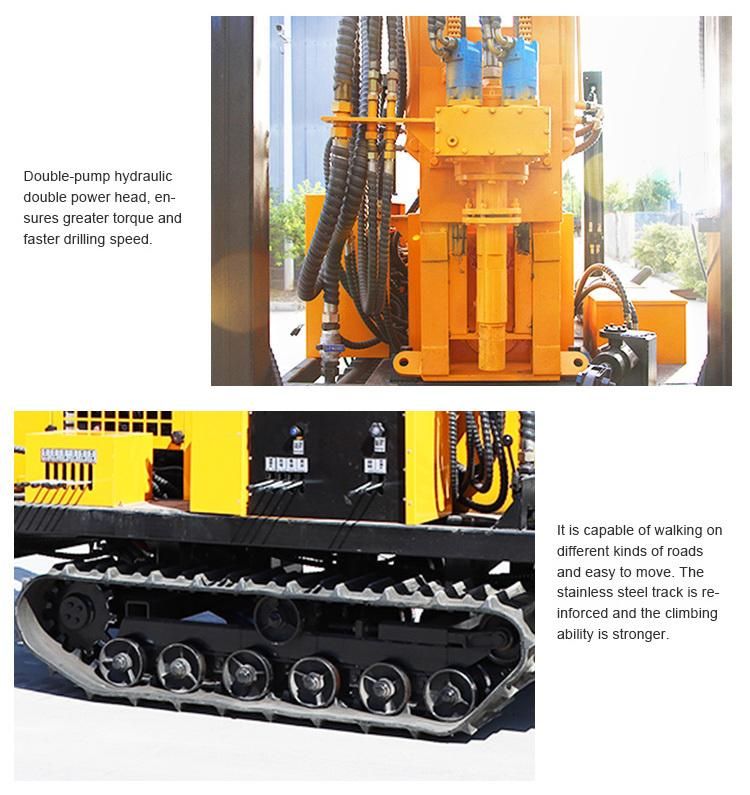

Detail Photos
Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
